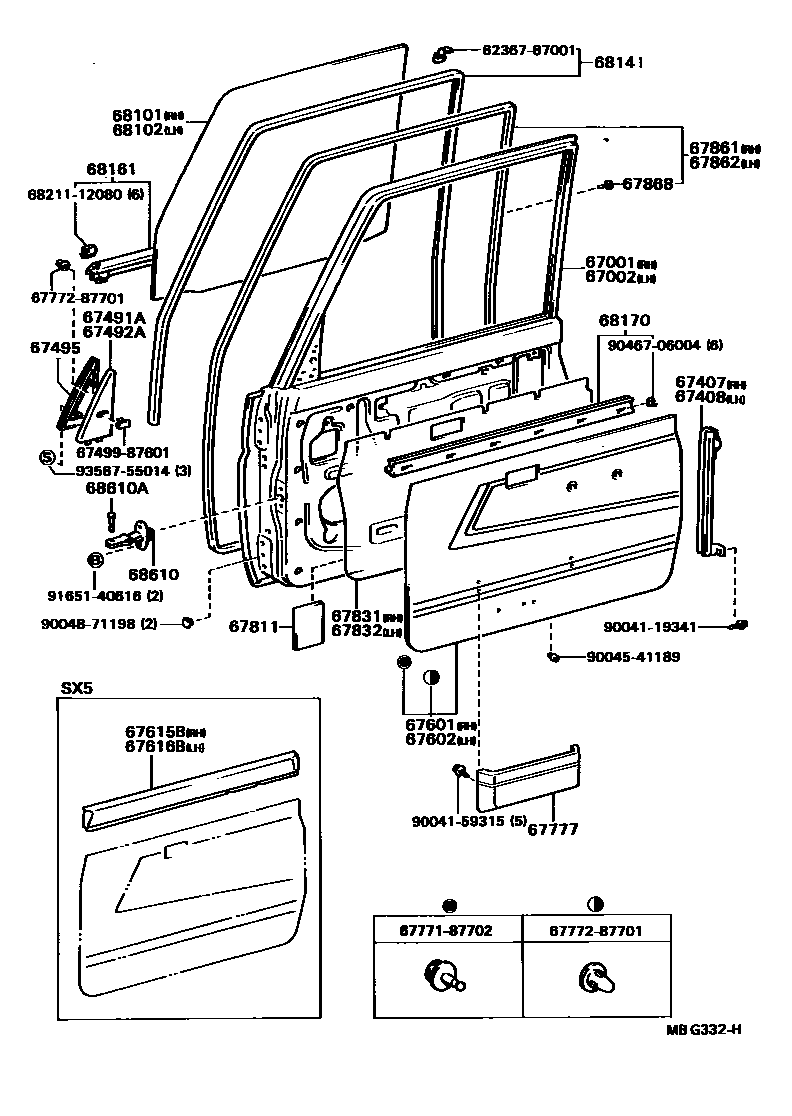

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-87613iLD2#198810-198906

main67001-87614iLD20..TP198405-198810

main67001-87618iLD2#198906-199002

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-87613iLD2#198810-198906

main67002-87614iLD20..TP198405-198810

main67002-87618iLD2#198906-199002

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-87601iLD2#..V,WG198405-198810

main67403-87602iLD20..TP198405-198810

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-87601iLD2#..V,WG198405-198810

main67404-87602iLD20..TP198405-198810

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-87601iLD2#..V,WG198405-198810

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-87601iLD2#..V,WG198405-198810

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-87601iLD20..DSL198405-198509

RH

main67496-87601iLD20..DSL198405-198509

LH

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-87611iLD20..DX198405-198509

main67610-87612iLD20..LX198405-198509

main67610-87617-03iLD21..SX5198509-198709

GRAY,GRAY

main67610-87617-04iLD21..SX5198509-198709

BLUE,BLUE

main67610-87620-03iLD2#..DX,LX,LX5198709-198810

GRAY,GRAY

main67610-87623-01iLD21..SX5198709-198810

BLACK,BLACK

main67610-87623-04iLD21..SX5198709-198810

BLUE,BLUE

main67610-87632-03iLD2#..DX,LX,LX5198810-199002

GRAY,GRAY

main67610-87635-01iLD21..SX5198810-199002

BLACK,BLACK

main67610-87635-04iLD21..SX5198810-199002

BLUE,BLUE

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-87611iLD2#..DX,LX,LX5198405-198709

main67620-87617-03iLD21..SX5198509-198709

GRAY,GRAY

main67620-87617-04iLD21..SX5198509-198709

BLUE,BLUE

main67620-87620-03iLD2#..DX,LX,LX5198709-198810

GRAY,GRAY

main67620-87623-01iLD21..SX5198709-198810

BLACK,BLACK

main67620-87623-04iLD21..SX5198709-198810

BLUE,BLUE

main67620-87635-03iLD2#..DX,LX,LX5198810-199002

GRAY,GRAY

main67620-87638-01iLD21..SX5198810-199002

BLACK,BLACK

main67620-87638-04iLD21..SX5198810-199002

BLUE,BLUE

67615BTRIM, FRONT DOOR, UPPER RH

main67615-87601-03iLD21..SX5198509-198811

GRAY,GRAY

main67615-87603-03iLD21..SX5198811-199002

GRAY,GRAY

67616BTRIM, FRONT DOOR, UPPER LH

main67616-87601-03iLD21..SX5198509-198811

GRAY,GRAY

main67616-87603-03iLD21..SX5198811-199002

GRAY,GRAY

67777POCKET, FRONT DOOR TRIM, RH

main67777-87101iLD2#..LX,LX5,SX5198405-198703

main67777-87101-33iLD2#..LX,LX5,SX5198703-198709

SHADOW GRAY,SHADOW GRAY

main67777-87701-13iLD2#..LX,LX5,SX5198709-199002

SHADOW GRAY,GRAY

67811PAD, FRONT DOOR SILENCER

main67811-87602×6iLD2#..V,WG198509-199002

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67801-87601iLD2#198405-198809

main67801-87602iLD2#198809-199002

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67802-87601iLD2#198809-199002

main67802-87602iLD2#198405-198809

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-87609iLD2#..V,WG198405-198608

main67861-87610iLD20..TP198405-198608

main67861-87613iLD2#..V,WG198608-198810

main67861-87614iLD20..TP198608-198810

main67861-87615iLD2#198810-199002

COLD SPEC

main67861-87616iLD20..TP198608-198810

COLD SPEC

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-87607iLD2#..V,WG198405-198608

main67862-87608iLD20..TP198405-198608

main67862-87611iLD2#198810-199002

main67862-87612iLD20..TP198608-198810

main67862-87613iLD2#..V,WG198608-198810

COLD SPEC

main67862-87614iLD20..TP198608-198810

COLD SPEC

67868CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67867-87201×20iLD2#198608-199002

LH

main67868-87201×20iLD2#198608-199002

RH

main67868-95401×40iLD2#198405-198608

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-87604iLD20..DX198405-198911

main68111-87605iLD20..LX..DSL198405-198911

main68111-87607iLD2#..TD198409-199002

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-87602iLD20..DX198405-198911

main68112-87603iLD20..LX..DSL198405-198911

main68112-87605iLD2#..TD198409-199002

68141RUN, FRONT DOOR GLASS

main68041-87601iLD2#..V,WG198405-198709

RH

main68041-87602iLD2#198810-199002

RH

main68042-87601iLD2#..V,WG198405-198709

LH

main68042-87602iLD2#198810-199002

LH

main68141-87605×2iLD20..TP198405-198709

main68141-87607×2iLD20..TP198709-198810

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-87604×2iLD2#198405-199002

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-87604×2iLD2#198405-198810

main68170-87606×2iLD2#198810-199002

68610CHECK ASSY, FRONT DOOR

main68610-87601×2iLD2#198405-199002

68610APIN(FOR FRONT DOOR CHECK)

main68617-87203×2iLD2#198805-199002

main68617-87602×2iLD2#198405-198805

6236787001CLIP, DOOR WINDOW GLASS, NO.1

main62367-87001

6749987601RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-87601

6777187702WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-87702

6777287701WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-87701

8821112080CAP, CRUISE CONTROL BODY

main88211-12080

9004119341

main90041-19341

9004159315

main90041-59315

9004541189

main90045-41189

9004871198

main90048-71198

9046706004

main90467-06004

9165140616

main91651-40616

9356755014

main93567-55014

37 parts on this diagram · 2 diagrams in section
