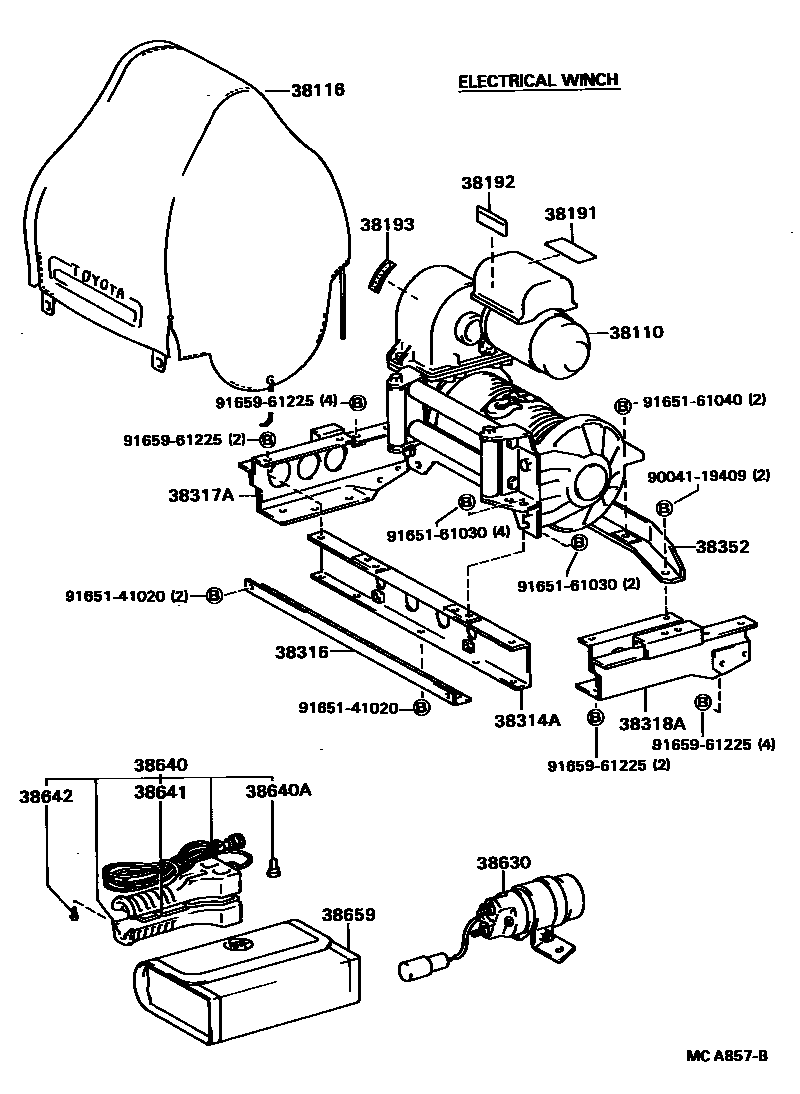

WINCH
38110WINCH ASSY
ELECTRICAL
MECHANICAL
38116COVER, WINCH
MECHANICAL
ELECTRICAL
38191PLATE, WINCH CAUTION, NO.1
ELECTRICAL
MECHANICAL
38192PLATE, WINCH CAUTION, NO.2
38193PLATE, WINCH CAUTION, NO.3
38314ACROSSMEMBER, WINCH SUPPORT, FRONT
38316REINFORCEMENT, WINCH SUPPORT, FRONT
38317AEXTENSION, WINCH SUPPORT, RH
38318AEXTENSION, WINCH SUPPORT, LH
38352SUPPORT, WINCH BASE
ELECTRICAL
38630SWITCH ASSY, MAGNET, NO.1
ELECTRICAL
38640SWITCH ASSY, WINCH CONTROL
38640ABULB (FOR WINCH CONTROL SWITCH)
38641GASKET (FOR WINCH CONTROL SWITCH)
ELECTRICAL
38642SCREW (FOR WINCH CONTROL SWITCH)
38659COVER, WINCH CONTROL SWITCH
ELECTRICAL
9004119409
main90041-19409
9165141020
main91651-41020
9165161030
main91651-61030
9165161040
main91651-61040
9165961225
main91659-61225
21 parts on this diagram · 7 diagrams in section
