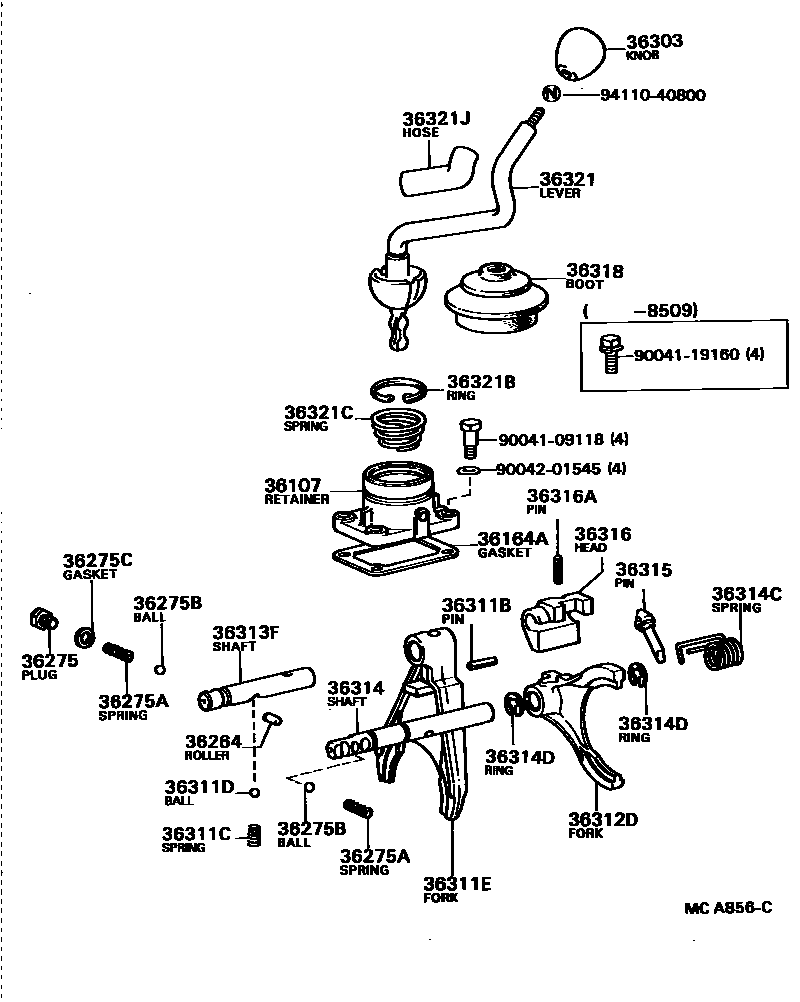

TRANSFER LEVER & SHIFT ROD
36107RETAINER SUB-ASSY, TRANSFER SHIFT LEVER
36164AGASKET, TRANSFER SHIFT LEVER RETAINER
36264PIN OR ROLLER, SHIFT INTER-LOCK
36275PLUG, SHIFT DETENT BALL SPRING
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
FRONT DRIVE SHIFT
36275BBALL, SHIFT DETENT
36275CGASKET (FOR SHIFT DETENT BALL SPRING PLUG)
36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
36311CSPRING, COMPRESION (FOR SHIFT FORK)
36311DBALL (FOR SHIFT FORK)
36311EFORK, TRANSFER FRONT DRIVE SHIFT
36312DFORK, TRANSFER HIGH & LOW SHIFT
36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36314CSPRING (FOR TRANSFER SHIFT FORK SHAFT)
36314DRING, E (FOR TRANSFER SHIFT FORK SHAFT)
36315PIN, TRANSFER FORK SHAFT
36316HEAD, TRANSFER GEAR SHIFT, NO.2
36316APIN, SLOTTED SPRING (FOR TRANSFER GEAR SHIFT HEAD)
36318BOOT, TRANSFER FRONT DRIVE SHIFT
36321LEVER, TRANSFER FRONT DRIVE SHIFT
36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)
36321CSPRING, CONICAL (FOR TRANSFER FRONT DRIVE SHIFT)
36321JHOSE (FOR TRANSFER SHIFT LEVER)
9004109118
main90041-09118
9004119160
main90041-19160
9004201545
main90042-01545
9411040800
main94110-40800
29 parts on this diagram · 2 diagrams in section
