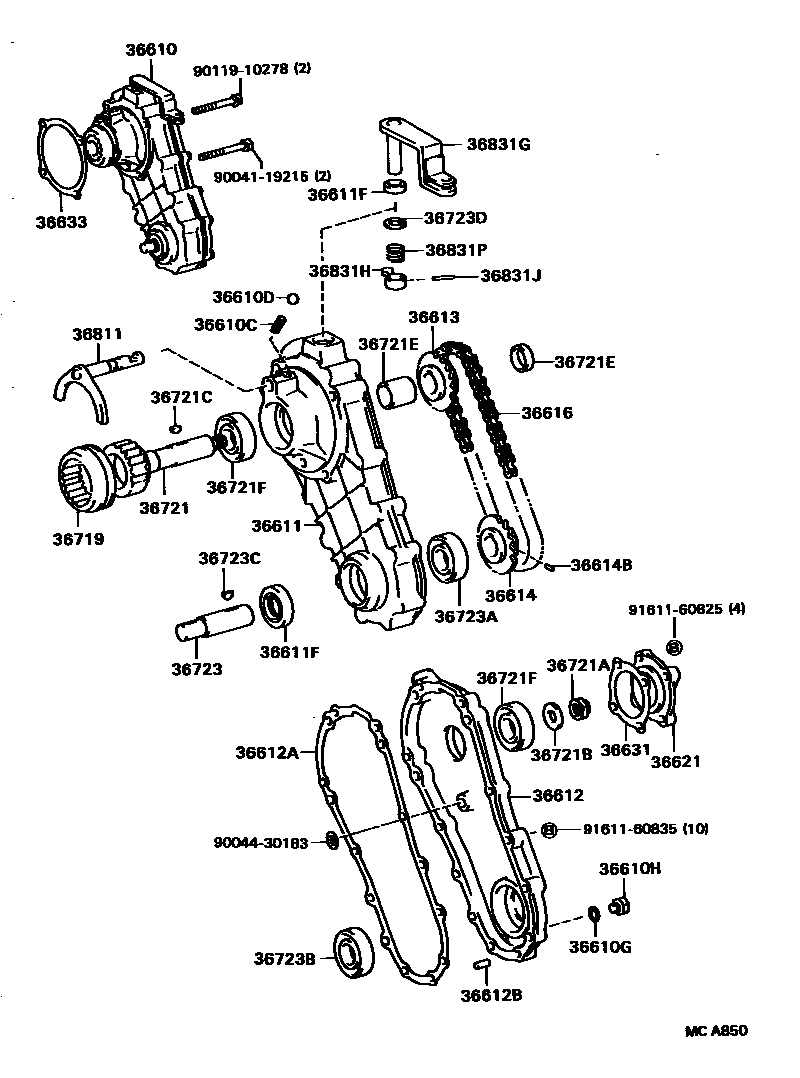

POWER TAKE-OFF CASE & GEAR
36610POWER TAKE-OFF ASSY
36610CSPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
36610DBALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
36610GGASKET (FOR FRONT POWER TAKE-OFF DRAIN)
36610HPLUG (FOR FRONT POWER TAKE-OFF DRAIN)
36611CASE, POWER TAKE-OFF
36611FSEAL, OIL (FOR POWER TAKE-OFF CASE)
OUTPUT SHAFT
POWER TAKE-OFF SHIFT LEVER
36612CASE, POWER TAKE-OFF REAR
36612AGASKET, POWER TAKE-OFF COVER
36612BPIN, STRAIGHT (FOR POWER TAKE-OFF COVER)
36613SPROCKET, POWER TAKE-OFF, NO.1
36614SPROCKET, POWER TAKE-OFF, NO.2
36614BPIN, SLOTTED SPRING (FOR POWER TAKE-OFF SPROCKET)
36616CHAIN, POWER TAKE-OFF
36621RETAINER, POWER TAKE-OFF BEARING
36631GASKET, POWER TAKE-OFF BEARING RETAINER
36633GASKET, POWER TAKE-OFF
36719CLUTCH, POWER TAKE-OFF INPUT
36721SHAFT, POWER TAKE-OFF INPUT GEAR
36721ANUT, CASTLE (FOR POWER TAKE-OFF INPUT SHAFT)
36721BWASHER, PLATE (FOR POWER TAKE-OFF INPUT SHAFT)
36721CKEY, WOODRUFF (FOR POWER TAKE-OFF INPUT SHAFT)
36721ECOLLER (FOR POWER TAKE-OFF INPUT SHAFT)
L=41,FR
L=10,RR
36721FBEARING (FOR POWER TAKE-OFF INPUT SHAFT)
36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723ABEARING (FOR OUTPUT SHAFT FRONT)
36723BBEARING (FOR OUTPUT SHAFT REAR)
36723CKEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
36723DWASHER, PLATE (FOR FRONT POWER TAKE-OFF SHAFT)
36811FORK, POWR TAKE-OFF SHIFT, NO.1
36831GLEVER, POWER TAKE-OFF SHIFT, NO.1
36831HLEVER, POWER TAKE-OFF SHIFT, NO.2
36831JPIN, SLOTTED SPRING (FOR POWER TAKE-OFF SHIFT LEVER)
36831PSPRING, COMPRESSION (FOR POWER TAKE-OFF SHIFT LEVER)
9004119215
main90041-19215
9004430183
main90044-30183
9011910278
main90119-10278
9161160825
main91611-60825
9161160835
main91611-60835
39 parts on this diagram · 1 diagram in section
