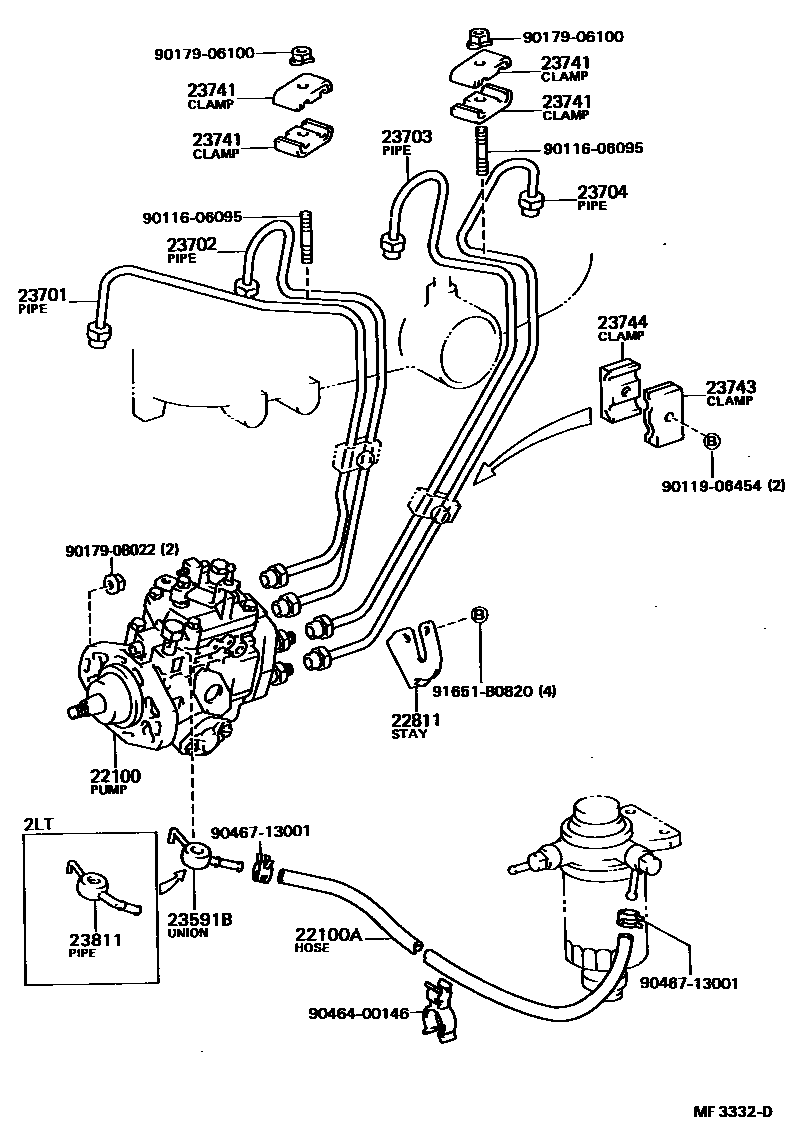

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54261i2LT..LD20198409-198504

sub22100-54262

sub82711-24010

main22100-54262i2LT..LD2#198504-198607

main22100-54263i2LT..LD2#198607-198911

main22100-54310i2L..LD20198405-198607

sub22100-54340

main22100-54311i2L..LD20198607-198911

sub22100-54341

main22100-54660i2LT..LD21198709-199002

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-87603i2LT..LD2#198509-199002

main95332-08060i2LT..LD20198409-198509

sub95333-08060

main95332-08060i2L..LD20198405-198702

sub95333-08060

main95333-08060i2L..LD20198702-198911

22811STAY, INJECTION PUMP, NO.1

main22811-54040i2L#..LD2#198405-198808

sub22811-54041

main22811-54041i2L#..LD2#198808-199002

sub22811-54042

23591BUNION(FOR INJECTION PUNP INLET)

main23591-54010i2L..LD20198405-198911

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54072i2L#..LD2#198903-199002

main23701-54082i2L#..LD2#198405-198903

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54071i2L#..LD2#198903-199002

main23702-54081i2L#..LD2#198405-198903

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050i2L..LD20198405-198911

main23703-54072i2LT..LD2#198903-199002

main23703-54082i2LT..LD2#198409-198903

sub23703-54072

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050i2L..LD20198405-199002

main23704-54082i2LT..LD2#198409-199002

sub23704-54072

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010i2L#..LD2#198405-199002

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010i2L#..LD2#198405-199002

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010i2L#..LD2#198405-199002

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54130i2LT..LD2#198409-199002

9011606095

main90116-06095

9011906454

main90119-06454

9017906100

main90179-06100

9017908022

main90179-08022

9046400146

main90464-00146

9046713001

main90467-13001

91651B0820

main91651-B0820

19 parts on this diagram · 1 diagram in section
