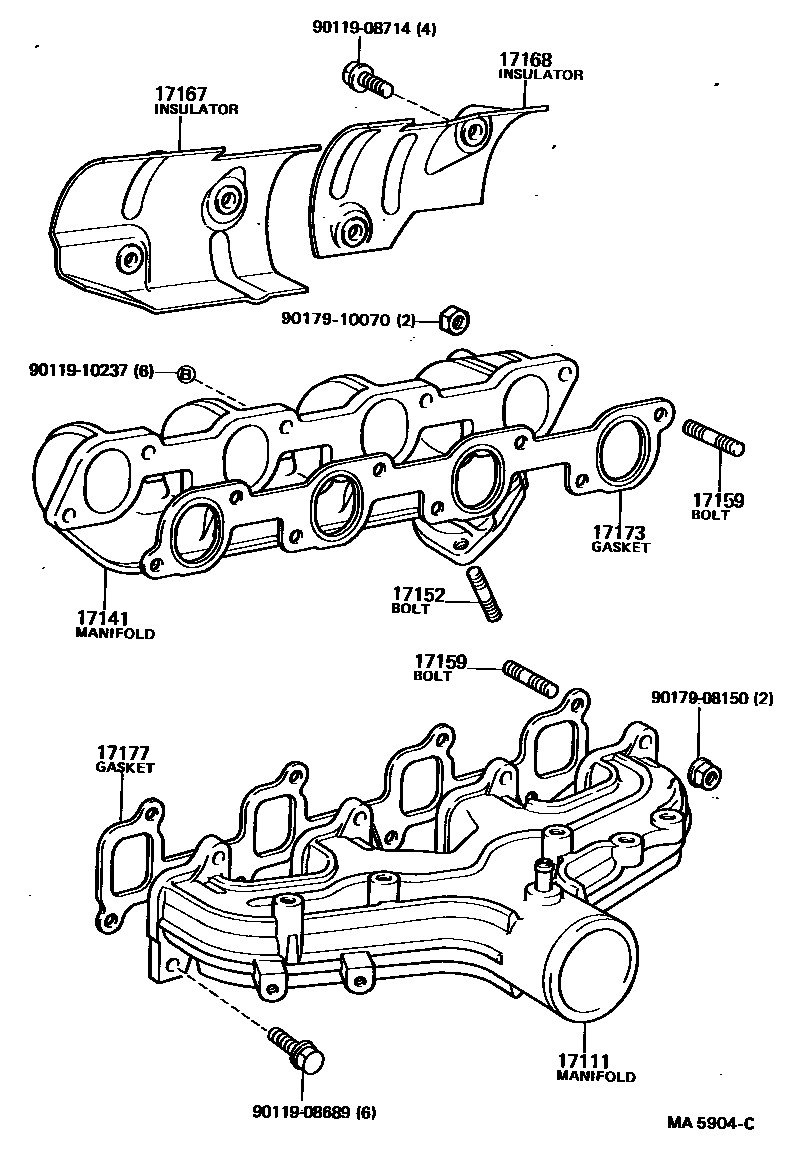

MANIFOLD
17111MANIFOLD, INTAKE
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=47.4,S=14&22
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD SIDE
INTAKE MANIFOLD SIDE
EXHAUST MANIFOLD SIDE
EXHAUST MANIFOLD SIDE
EXHAUST MANIFOLD SIDE
EXHAUST MANIFOLD SIDE
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
9011908689
main90119-08689
9011908714
main90119-08714
9011910237
main90119-10237
9017908150
main90179-08150
9017910070
main90179-10070
13 parts on this diagram · 3 diagrams in section
