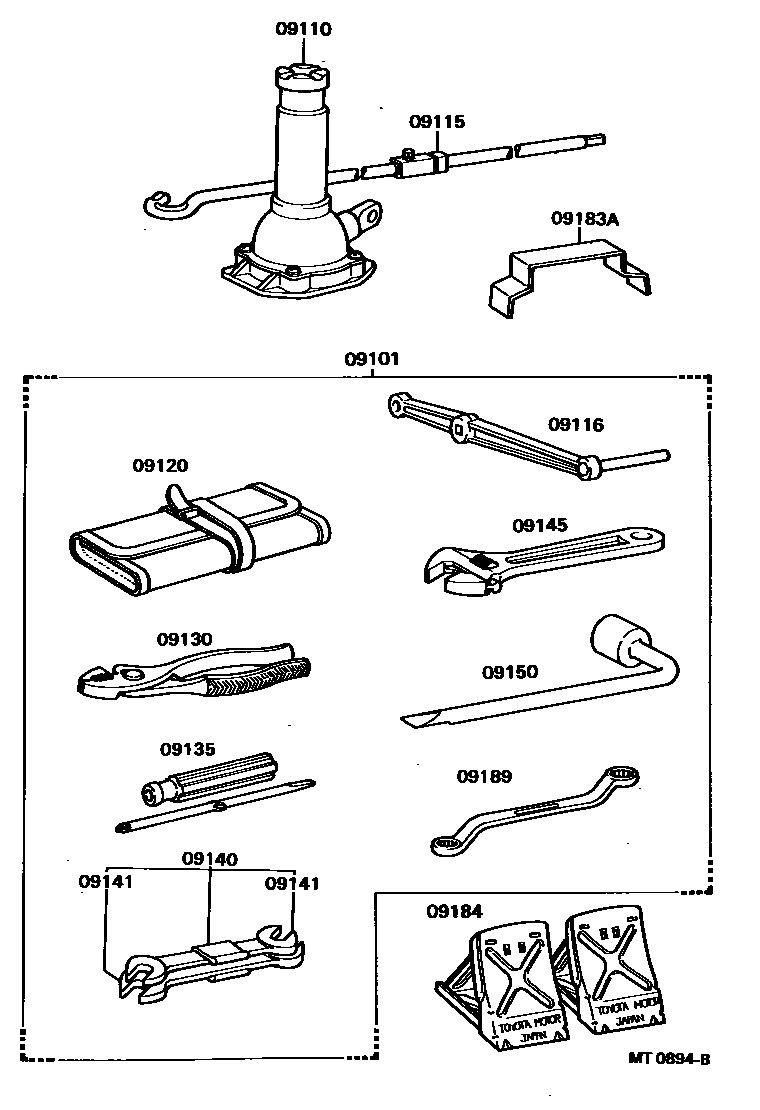

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-60291iLD20198405-198911

09110JACK ASSY

main09111-27021iLD2#198405-199002

09115ROD SUB-ASSY, JACK HANDLE

main09115-27020iLD2#198405-199002

sub09115-35070

09116LEVER, JACK HANDLE

main09116-35040iLD2#198405-198810

sub09116-35041

main09116-35041iLD2#198810-199002

09120BAG, TOOL

main09120-26021iLD2#198405-199002

sub09120-35170

09130PLIERS

main99913-11500iLD2#198405-199002

09135DRIVER, SCREW

main99915-10700iLD2#198405-199002

09140SPANNER SET

main09140-27010iLD2#198405-199002

09141SPANNER

main99914-11012iLD2#198405-199002

main99914-11417iLD2#198405-199002

09145WRENCH, MONKEY

main99911-10200iLD2#198405-198605

sub99911-11200

main99911-11200iLD2#198605-199002

09150WRENCH, HUB NUT BOX

main09150-40010iLD2#198405-199002

09183AREPLACER, WHEEL CAP

main09183-87601iLD2#198501-199002

6JJ-15 STEEL WHEEL

main09183-87602iLD2#198502-199002

W/ALMI WHEEL

09184STOPPER, WHEEL

main09184-00031iLD2#198405-199002

sub09184-60010

09189WRENCH, OFFSET

main99912-11012iLD20198405-198911

14 parts on this diagram · 1 diagram in section
