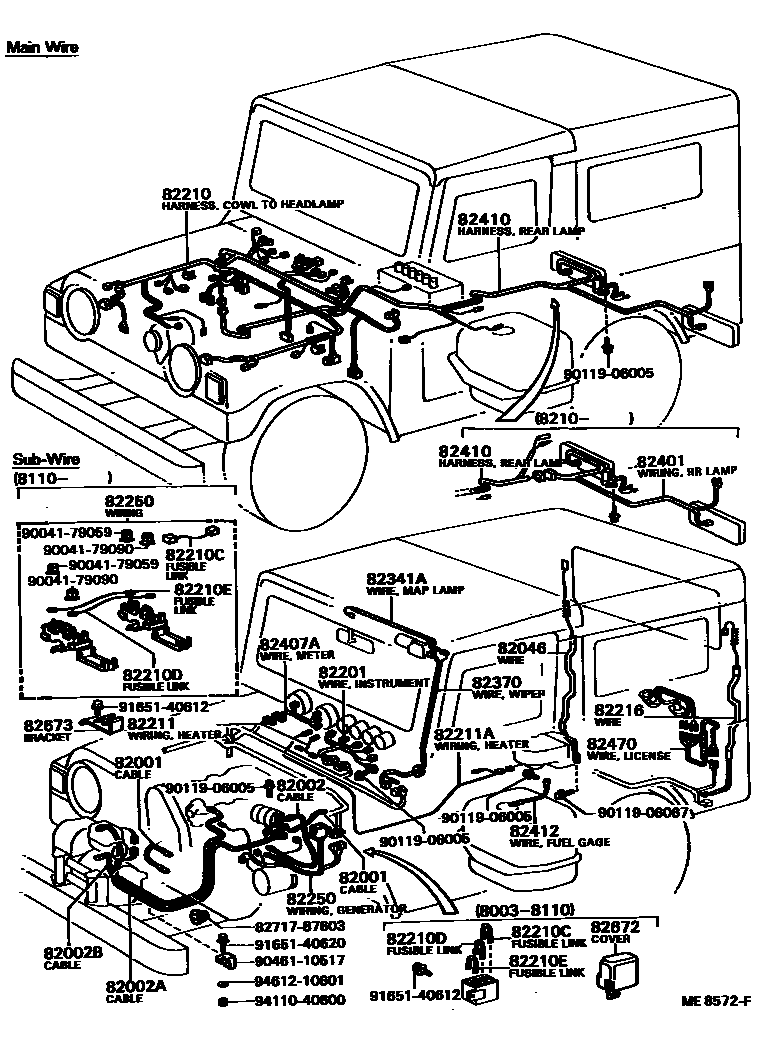

WIRING & CLAMP
82001CABLE, BOND, NO.1
ENGINE--FRAME
MAGNET SW--BODY
82002CABLE, BATTERY TO MAGNET SWITCH
82002ACABLE, MAGNET SWITCH TO WINCH
82002BCABLE, WINCH TO GROUND
82046WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
82201WIRING SUB-ASSY, INSTRUMENT PANEL
W/RR WINDOW DEFOGGER
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82211WIRE, HEATER BLOWER FAN SWITCH
82211AWIRE, REAR HEATER
82216WIRE, REAR WINDOW DEFOGGER
82250WIRING ASSY, TO GENERATOR
82370WIRE ASSY, WIPER SWITCH TO WIPER
82401WIRING, REAR COMBINATION LAMP
82407AWIRE SUB-ASSY, METER
82410HARNESS ASSY, WIRING TO REAR LAMP
82412WIRE, FUEL GAGE
82470WIRE ASSY, LICENSE LAMP FEED
82672COVER, JUNKTION BLOCK
82673BRACKET, JUNCTION BLOCK
W/O RR WINDOW DEFOGGER
8271787603
main82717-87603
9004179059
main90041-79059
9004179090
main90041-79090
9011906005
main90119-06005
9011906067
main90119-06067
9046110517
main90461-10517
9165140612
main91651-40612
9165140620
main91651-40620
9411040600
main94110-40600
9461210601
main94612-10601
33 parts on this diagram · 3 diagrams in section
