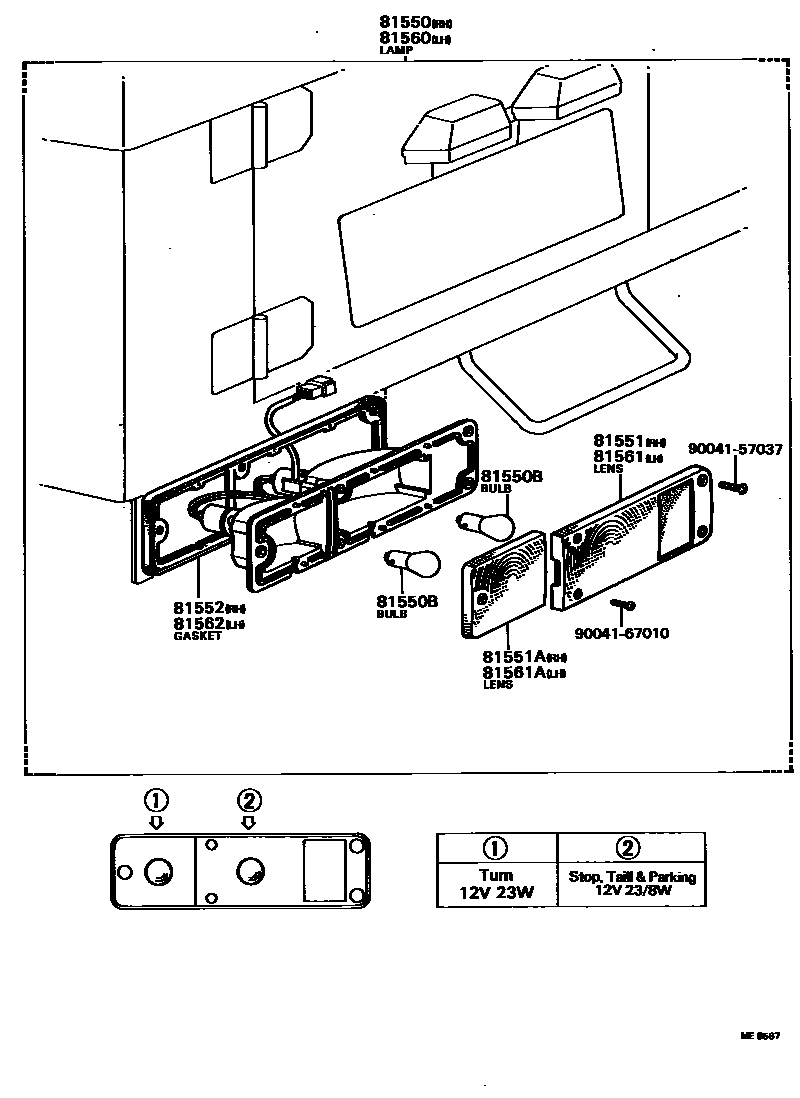

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-87602iLD10198003-198110

main81550-87605iLD10198110-198404

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×2iLD10198003-198404

main99132-21230×2iLD10198003-198404

81551LENS, REAR COMBINATION LAMP, RH

main81551-87601iLD10198003-198404

81551ALENS, REAR COMBINATION LAMP, RH

main81531-87601iLD10198003-198404

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-87602iLD10198003-198110

main81552-87603iLD10198110-198404

81560LAMP ASSY, REAR COMBINATION, LH

main81560-87602iLD10198003-198110

main81560-87605iLD10198110-198404

81561LENS, REAR COMBINATION LAMP, LH

main81551-87601iLD10198003-198404

81561ALENS, REAR COMBINATION LAMP, LH

main81541-87601iLD10198003-198404

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-87601iLD10198003-198110

main81562-87602iLD10198110-198404

9004157037

main90041-57037

9004167010

main90041-67010

11 parts on this diagram · 1 diagram in section
