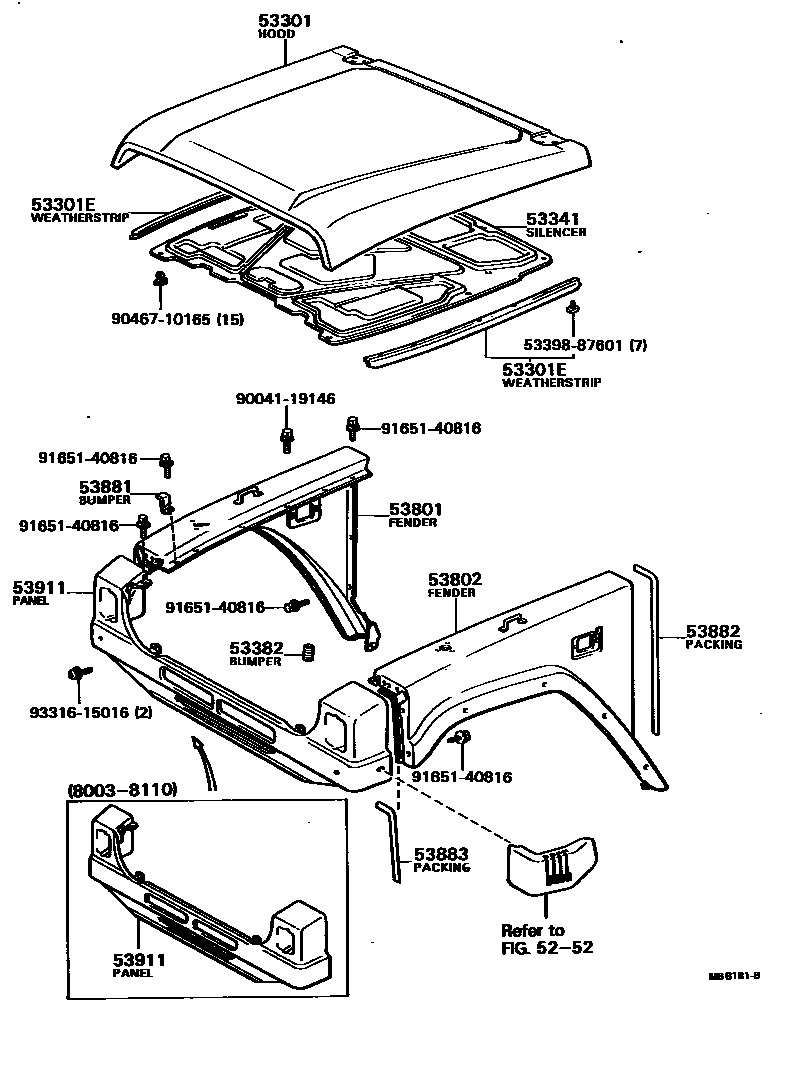

HOOD & FRONT FENDER

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53301HOOD SUB-ASSY

main53301-87606iLD10198003-198404

53301EWEATHERSTRIP, HOOD INNER

main53395-87601iLD10198003-198404

RH

main53396-87601iLD10198003-198404

LH

53341SILENCER, HOOD, NO.1

main53341-87601iLD10198003-198404

53382BUMPER, HOOD, FRONT

main53381-87701×2iLD10198003-198404

53801FENDER SUB-ASSY, FRONT RH

main53801-87606iLD10..06S198003-198110

main53801-87608iLD10..04S198003-198110

main53801-87610iLD10..06S198110-198404

main53801-87611iLD10..V198110-198404

53802FENDER SUB-ASSY, FRONT LH

main53802-87606iLD10..06S198003-198110

main53802-87608iLD10..04S198003-198110

main53802-87610iLD10..06S198110-198404

main53802-87611iLD10..V198110-198404

53881BUMPER, FENDER TO HOOD

main53382-87601×2iLD10198003-198404

53882PACKING, FRONT FENDER MAIN

main53882-87601iLD10198110-198404

53883PACKING, FRONT FENDER, FRONT

main53883-87601iLD10198110-198404

53911PANEL, FRONT VALANCE

main53901-87601iLD10198003-198110

main53901-87602iLD10198110-198404

5339887601SEAL, RADIATOR, LOWER

main53398-87601

9004119146

main90041-19146

9046710165

main90467-10165

9165140816

main91651-40816

9331615016

main93316-15016

16 parts on this diagram · 1 diagram in section
