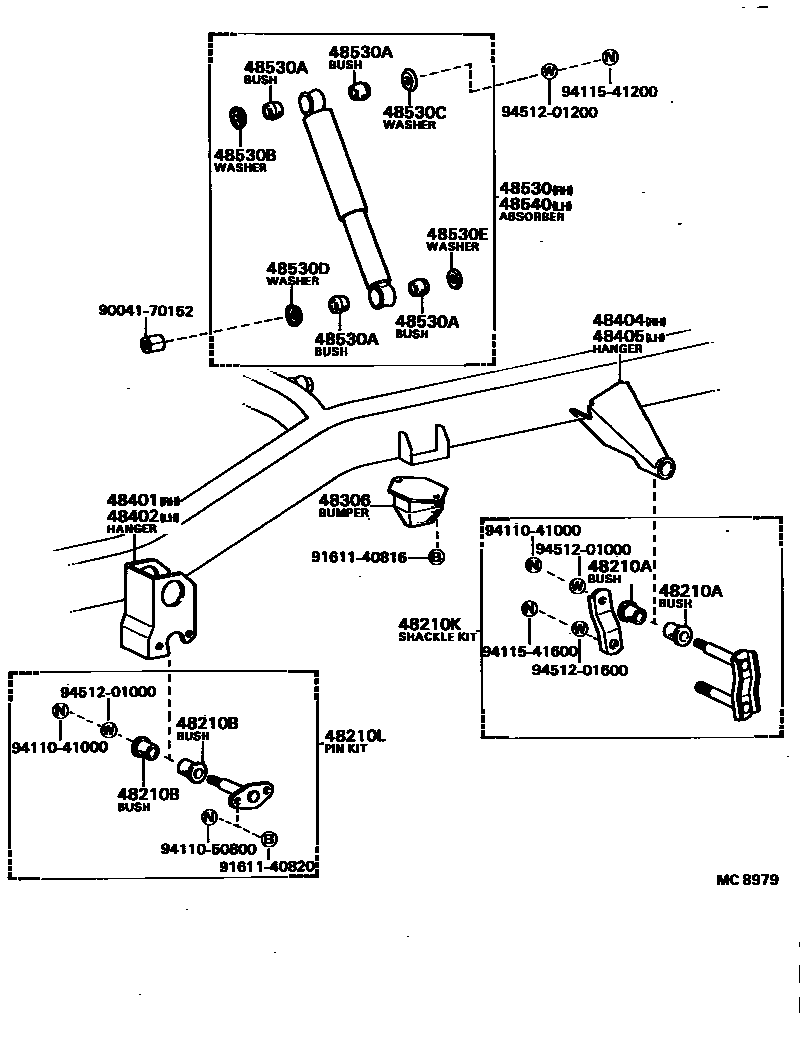

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48210SPRING ASSY, REAR RH

main48210-87611iLD10..06S198003-198210

main48210-87615iLD10..04S198003-198110

main48210-87620iLD10..V198110-198210

main48210-87622iLD10..V198210-198404

main48210-87626iLD10..06S198210-198404

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90043-85059×4iLD10198003-198404

48210BBUSH(FOR REAR SPRING PIN)

main90043-85040×4iLD10198003-198404

48210KSHACKLE KIT, REAR SPRING

main04481-87601×2iLD10198003-198404

48210LPIN KIT, REAR SPRING

main04482-87601×2iLD10198003-198404

48306BUMPER SUB-ASSY, REAR SPRING

main48332-87602×2iLD10198003-198404

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-87602iLD10198003-198404

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48415-87603iLD10198003-198404

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48405-87602iLD10198003-198404

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48406-87601iLD10198003-198404

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-87602iLD10..06S198003-198404

main48530-87603iLD10..V198003-198404

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90043-85002×8iLD10198003-198404

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004×2iLD10198003-198404

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03003×2iLD10198003-198404

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03004×2iLD10198003-198404

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03003×2iLD10198003-198404

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-87602iLD10..06S198003-198404

main48530-87603iLD10..V198003-198404

9004170152

main90041-70152

9161140816

main91611-40816

9161140820

main91611-40820

9411041000

main94110-41000

9411050800

main94110-50800

9411541200

main94115-41200

9411541600

main94115-41600

9451201000

main94512-01000

9451201200

main94512-01200

9451201600

main94512-01600

27 parts on this diagram · 2 diagrams in section
