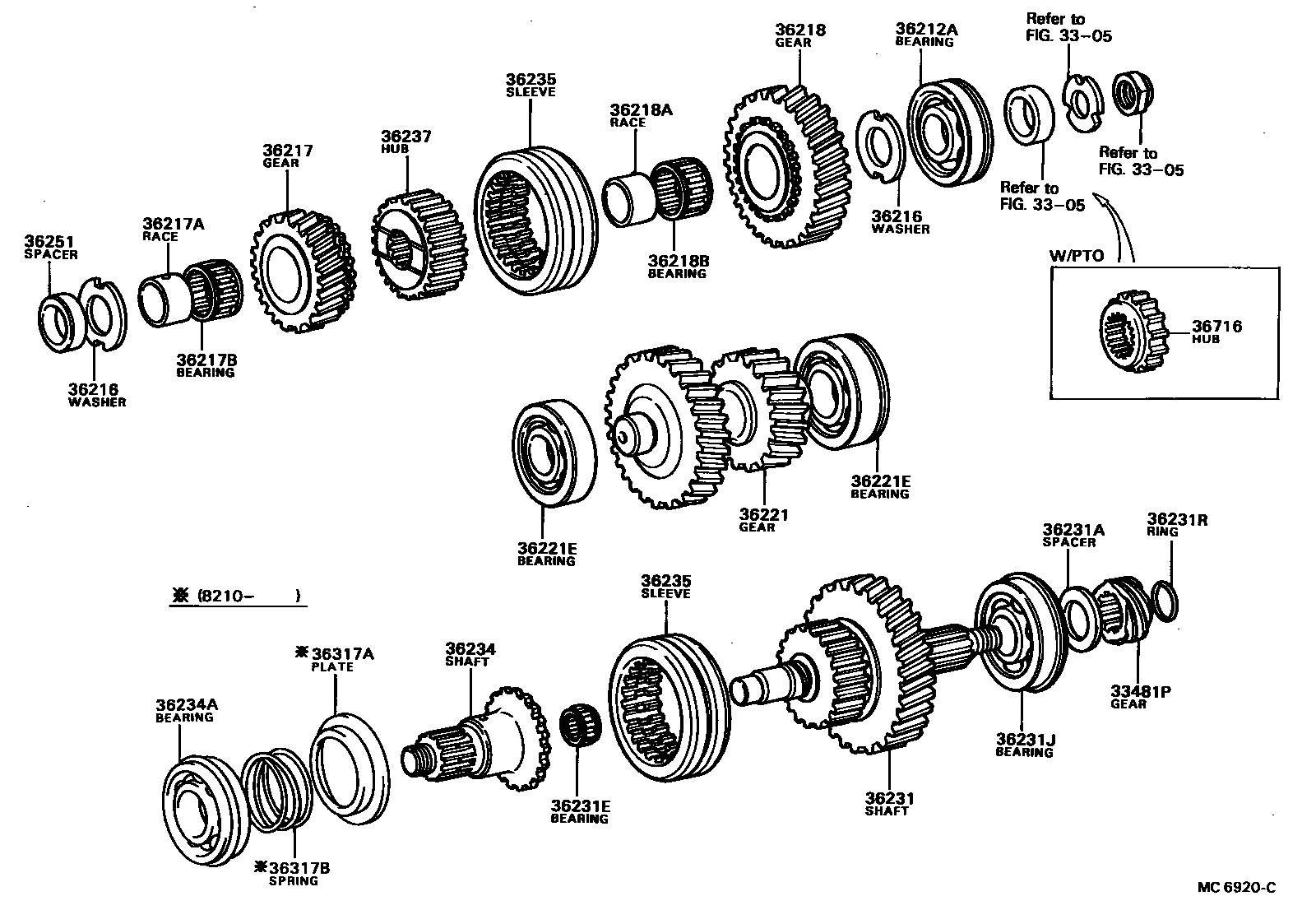

TRANSFER GEAR
3305TRANSMISSION GEAR (MTM)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
36216WASHER, TRANSFER INPUT GEAR THRUST
36217GEAR, TRANSFER LOW SPEED INPUT
36217ARACE, TRANSFER INPUT LOW SPEED GEAR BEARING, INNER
36217BBEARING (FOR INPUT HIGH SPEED GEAR)
36218GEAR, TRANSFER HI SPEED INPUT
36218ARACE, TRANSFER INPUT HIGH SPEED GEAR BEARING, INNER
36218BBEARING (FOR INPUT LOW SPEED GEAR)
36221EBEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR)
RR
RR
FR
36231ASPACER (FOR TRANSFER OUTPUT SHAFT)
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231RRING, O (FOR TRANSFER OUTPUT SHAFT)
36234SHAFT, TRANSFER OUTPUT, FRONT
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36237HUB, TRANSFER CLUTCH
36251SPACER, TRANSFER INPUT SHAFT
36317APLATE, FRONT DRIVE DISENGAGE
36317BSPRING, COMPRESSION (FOR FRONT DRIVE DISENGAGE PLATE)
36716HUB, POWER TAKE-OFF CLUTCH
W/PTO
25 parts on this diagram · 2 diagrams in section
