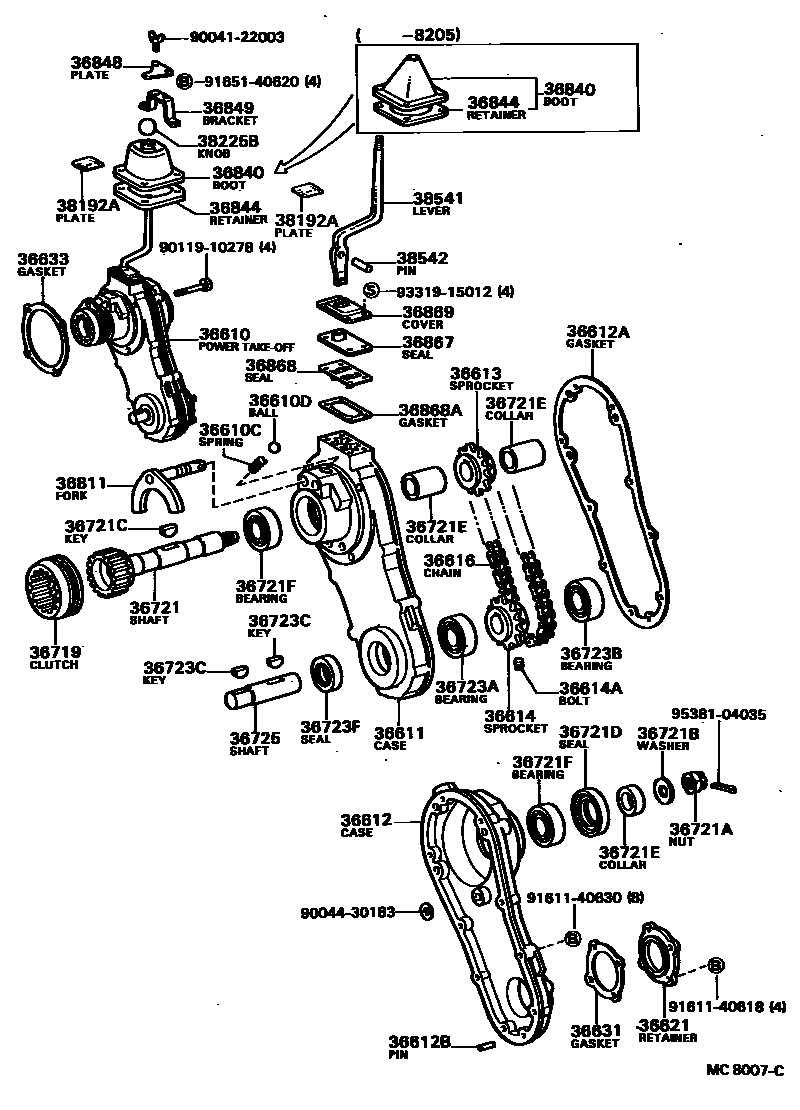

POWER TAKE-OFF CASE & GEAR
36610POWER TAKE-OFF ASSY
36610CSPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
36610DBALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
36612AGASKET, POWER TAKE-OFF COVER
36612BPIN, STRAIGHT (FOR POWER TAKE-OFF COVER)
36613SPROCKET, POWER TAKE-OFF, NO.1
36614SPROCKET, POWER TAKE-OFF, NO.2
36614ABOLT, SPROCKET SET
36621RETAINER, POWER TAKE-OFF BEARING
36631GASKET, POWER TAKE-OFF BEARING RETAINER
36633GASKET, POWER TAKE-OFF
36719CLUTCH, POWER TAKE-OFF INPUT
36721SHAFT, POWER TAKE-OFF INPUT GEAR
36721ANUT, CASTLE (FOR POWER TAKE-OFF INPUT SHAFT)
36721BWASHER, PLATE (FOR POWER TAKE-OFF INPUT SHAFT)
36721CKEY, WOODRUFF (FOR POWER TAKE-OFF INPUT SHAFT)
36721DSEAL (FOR POWER TAKE-OFF INPUT SHAFT)
36721ECOLLER (FOR POWER TAKE-OFF INPUT SHAFT)
L=41,FR
L=10,RR
L=10,RR
36721FBEARING (FOR POWER TAKE-OFF INPUT SHAFT)
36723ABEARING (FOR OUTPUT SHAFT FRONT)
36723BBEARING (FOR OUTPUT SHAFT REAR)
36723CKEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
36723FSEAL (FOR POWER TAKE-OFF OUTPUT SHAFT)
36725SHAFT, CENTER POWER TAKE-OFF OUTPUT
36811FORK, POWR TAKE-OFF SHIFT, NO.1
36840BOOT ASSY, POWER TAKE-OFF SHIFT LEVER
36844RETAINER, POWER TAKE-OFF BOOT
36848PLATE, POWER TAKE-OFF SHIFT LEVER LOCK
36849BRACKET, POWER TAKE-OFF SHIFT LEVER LOCK
38192APLATE, CAUTION, NO.2
POWER TAKE OFF SIDE
WINCH SIDE
38225BKNOB, WINCH CLUTCH LEVER
38541LEVER, SHIFT
9004122003
main90041-22003
9004430183
main90044-30183
9011910278
main90119-10278
9161140618
main91611-40618
9161140630
main91611-40630
9165140620
main91651-40620
9331915012
main93319-15012
9538104035
main95381-04035
48 parts on this diagram · 2 diagrams in section
