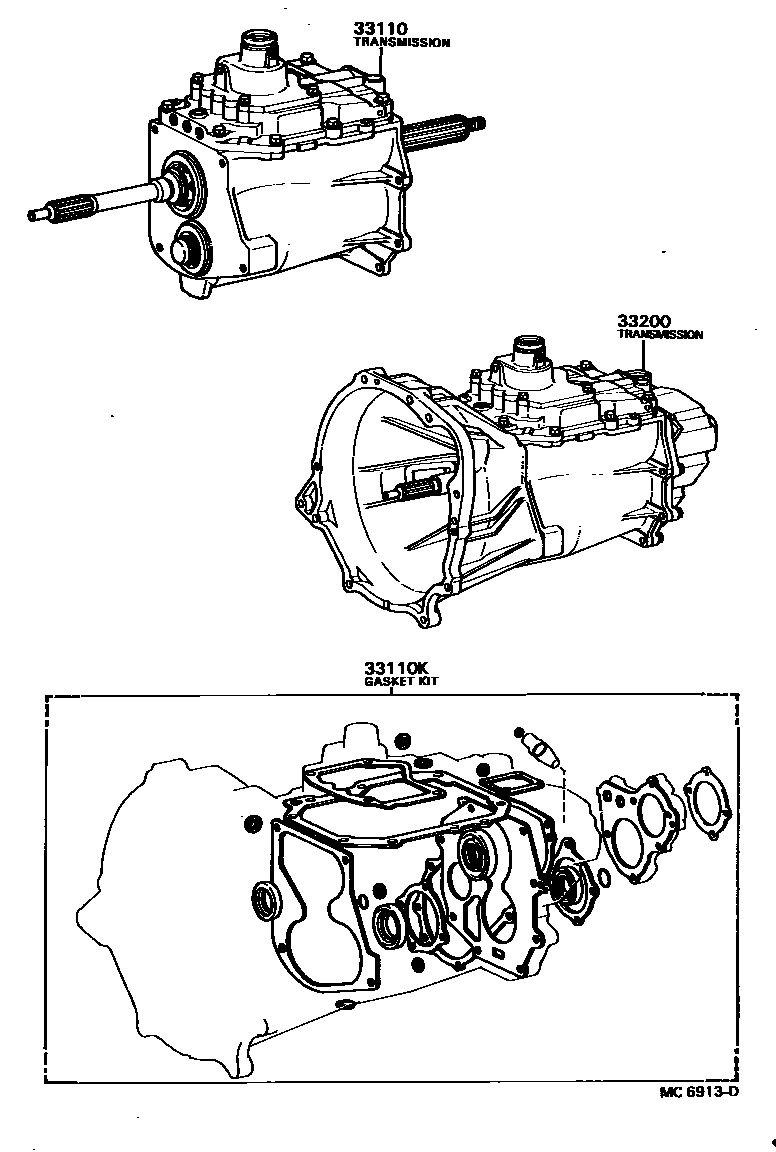

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

33110TRANSMISSION ASSY, MANUAL

main33110-87622iLD10198003-198210

main33110-87624iLD10..VPT198210-198404

main33110-87633iLD10..4F198210-198404

33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-87607iLD10..4F198003-198404

main04331-87608iLD10..VPT198210-198404

33200TRANSMISSION ASSY, W/TRANSFER PARKING BRAKE

main33200-87626iLD10..STD198003-198110

main33200-87627iLD10..DLX198003-198110

main33200-87655iLD10..4F198210-198404

3 parts on this diagram · 2 diagrams in section
