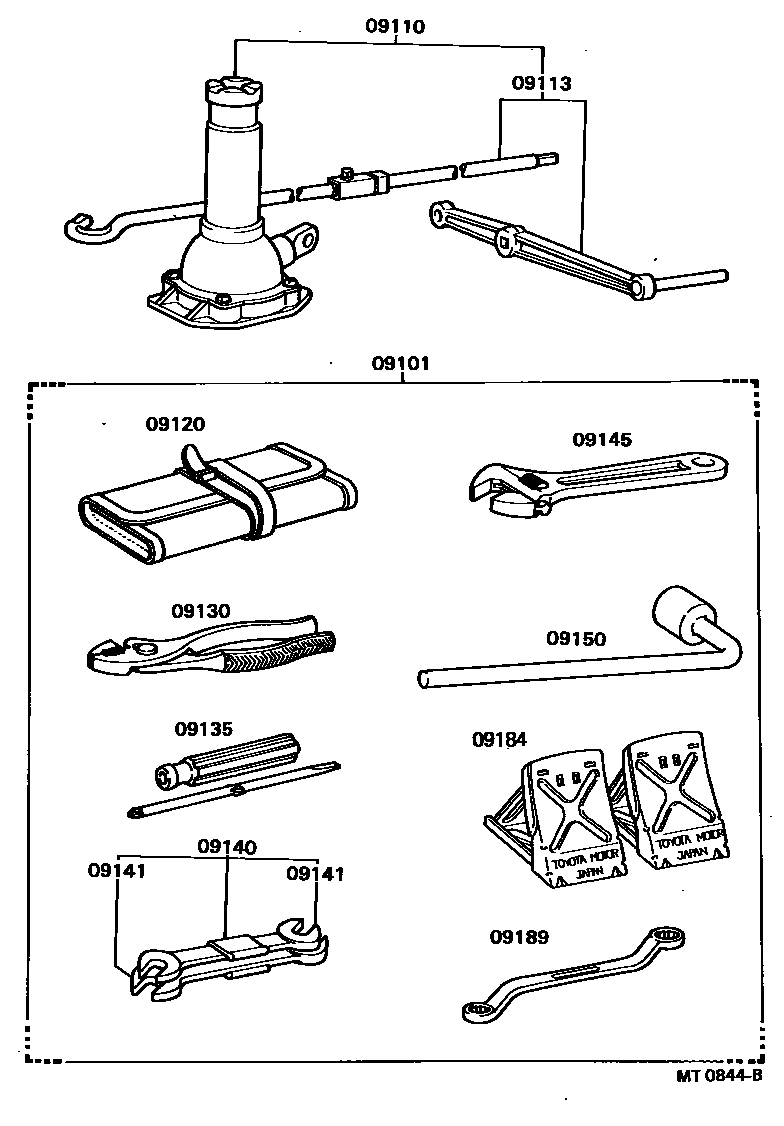

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-60130iLD10198003-198205

sub09101-60210

main09101-60210iLD10198205-198404

09110JACK ASSY

main09110-27020iLD10198003-198205

sub09110-27021

main09110-27021iLD10198205-198404

sub09111-27021

sub09115-27020

sub09116-35040

09113HANDLE, JACK

main09113-27012iLD10198003-198401

sub09113-28020

main09113-28020iLD10198401-198404

09120BAG, TOOL

main09120-26021iLD10198003-198404

sub09120-35170

09130PLIERS

main09130-00010iLD10198003-198205

sub09130-00012

main99913-11500iLD10198205-198404

09135DRIVER, SCREW

main99915-10700iLD10198003-198404

09140SPANNER SET

main09140-27010iLD10198003-198404

09141SPANNER

main99914-11012iLD10198003-198404

main99914-11417iLD10198003-198404

09145WRENCH, MONKEY

main99911-10200iLD10198003-198404

sub99911-11200

09150WRENCH, HUB NUT BOX

main09150-26010iLD10198003-198404

09184STOPPER, WHEEL

main09184-00031iLD10198003-198404

sub09184-60010

09189WRENCH, OFFSET

main99912-11012iLD10198003-198404

12 parts on this diagram · 1 diagram in section
