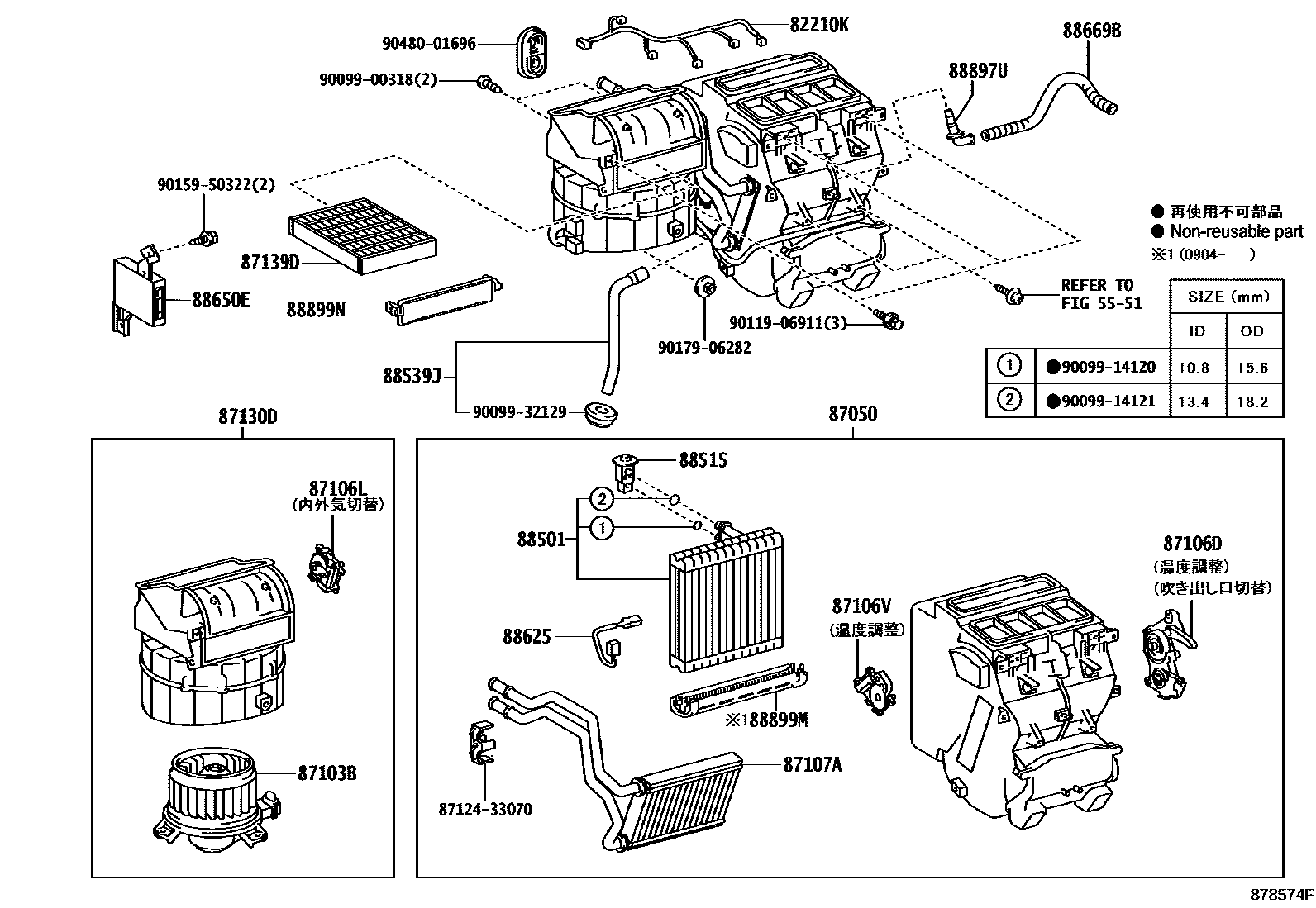

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1��(���) 0003 1��(�����)

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

82210KHARNESS ASSY, AIR CONDITIONER

main82212-28030iAHR20..CBU200812-201204

main82212-33010iAHR20..CBU200606-200701

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28680iAHR20..CBU200606-200701

main87050-28681iAHR20..CBU200702-200708

main87050-28682iAHR20..CBU201605

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-28150iAHR20..CBU201605

main87103-33100iAHR20..CBU200812-201204

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-28190iAHR20..CBU200606-200701

main87106-28191iAHR20..CBU201204-201605

87106LSERVO SUB-ASSY, DAMPER

main87106-33280iAHR20..CBU200812-201204

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-33260iAHR20..CBU201605

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33120iAHR20..CBU200606-200702

87130DBLOWER ASSY

main87130-28540iAHR20..CBU200702-200708

main87130-28541iAHR20..CBU201605

87139DELEMENT, AIR REFINER

main87139-30040iAHR20..CBU200812-201204

main87139-50060iAHR20..CBU200812-201203

main87139-50100iAHR20..CBU201605

main87139-52040iAHR20..CBU201304-201605

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28410iAHR20..CBU200709-200812

main88501-33180iAHR20..CBU200606-200708

main88501-48300iAHR20..CBU200904-201007

main88501-48301iAHR20..CBU201605

88515VALVE, COOLER EXPANSION

main88515-28240iAHR20..CBU201605

main88515-33020iAHR20..CBU200606-200812

88539JHOSE, DRAIN COOLER

main88539-28280iAHR20..CBU201605

88625THERMISTOR, COOLER, NO.1

main88625-33190iAHR20..CBU200812-201204

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-28B10supersedes 88650-28B02iAHR20..G..CBU; AHR20..X200606-200701

main88650-28B11iAHR20..G..CBU; AHR20..X..CBU200812-200910

main88650-28B12iAHR20..G..CBU; AHR20..X..CBU200911-201204

main88650-28B80supersedes 88650-28B71iAHR20..(AERAS,X)..CBU; AHR20..07S..AERAS..CBU; AHR20..G201204-201303

main88650-28B81iAHR20..(AERAS,X)..CBU; AHR20..07S..AERAS..CBU; AHR20..G201304-201308

main88650-28B83supersedes 88650-28B73iAHR20..(AERAS,X)..CBU; AHR20..07S..AERAS..CBU; AHR20..G201308-201409

main88650-28B84supersedes 88650-28B74iAHR20..(AERAS,X)..CBU; AHR20..G201409-201605

main88650-28D70iAHR20..AEPG,AESM201605

main88650-28D00iAHR20..07S..AERAS..CBU201409-201605

main88650-28D60supersedes 88650-28D50iAHR20..(AEPR,AERAS)..CBU201605

88669BHOSE, COOLER AIR

main88669-33090iAHR20..CBU200606-200812

88897UPIPE, ASPIRATOR

main88897-33030iAHR20..CBU200606-200812

88899MPLATE, COVER(FOR AIR FILTER)

main88899-33050iAHR20..CBU200904-201204

88899NPLATE, COVER

main88899-33040iAHR20..CBU200606-200812

8712433070CLAMP, HEATER

main87124-33070

9009900318

main90099-00318

9009914120

main90099-14120

9009914121

main90099-14121

9009932129

main90099-32129

9011906911

main90119-06911

9015950322

main90159-50322

9017906282

main90179-06282

9048001696

main90480-01696

28 parts on this diagram · 3 diagrams in section
