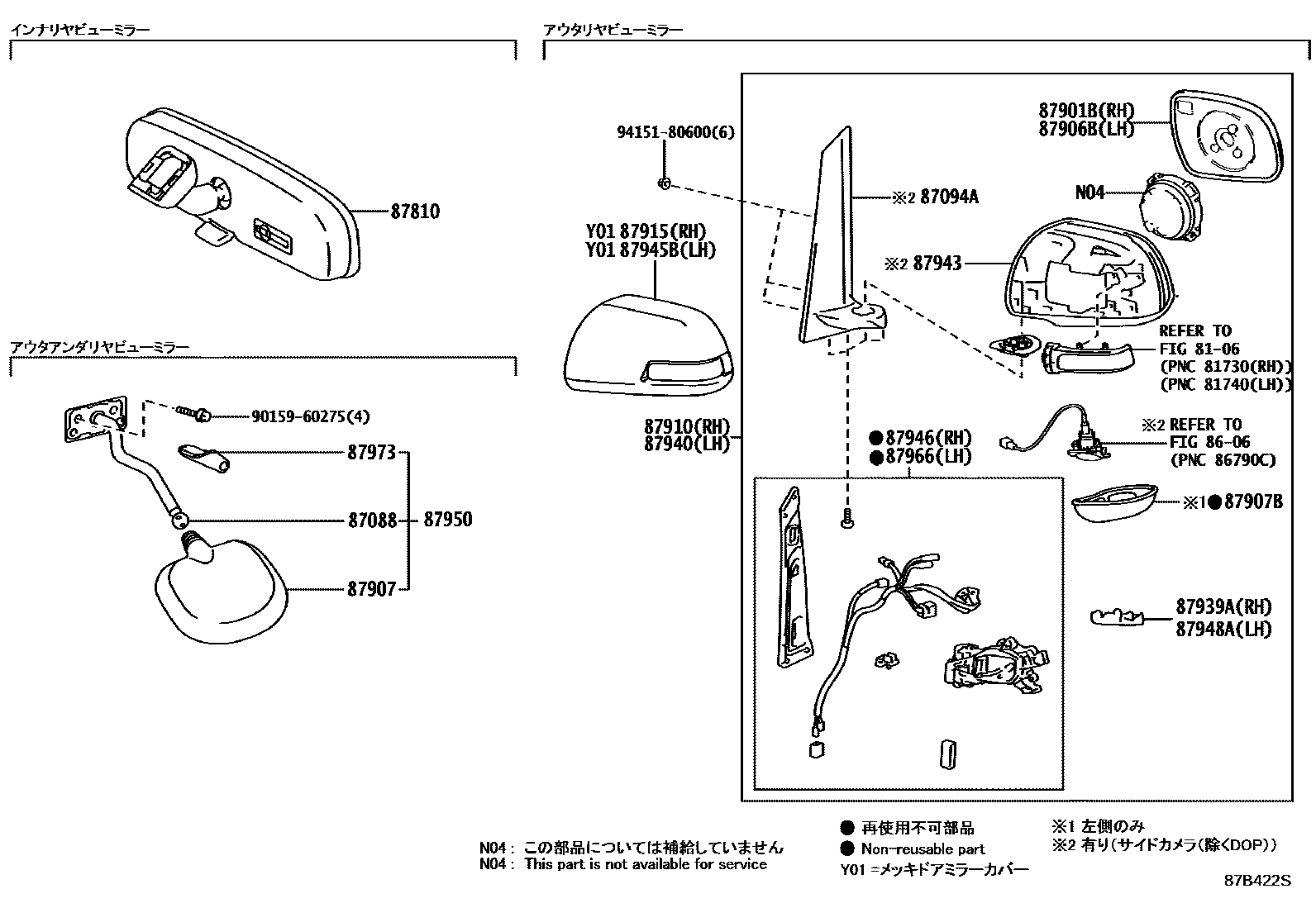

MIRROR

0001 1 0002 1 0003 1

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87088ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR

main87088-28050iAHR20..CBU200606-200812

87094ASTAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH

main8794B-28A20iAHR20..G..CBU200606-200812

87810MIRROR ASSY, INNER REAR VIEW

main87810-28130iAHR20..CBU201605-201708

main87810-28140iAHR20..CBU201709

main87810-52040iAHR20..CBU200606-200612

main87810-52041iAHR20..CBU201204-201605

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-28A20iAHR20..X200606-200706

main87931-28A30iAHR20..X200606-200706

main87931-28A31iAHR20..CBU; AHR20..X..CBU200908-201204

main87931-28B21supersedes 87931-42A30iAHR20..CBU201204-201605

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-28A30iAHR20..X200606-200706

main87961-28A32supersedes 87961-28A20iAHR20..CBU; AHR20..X..CBU200908-201204

main87961-28B31iAHR20..CBU201304-201605

87907MIRROR SUB-ASSY, OUTER UNDER VIEW

main87907-28010iAHR20..CBU200606-200812

main87907-28050iAHR20..X..CBU200812-201204

87907BDEVICE SUB-ASSY,FRONT FENDER SIDE VIEW,LH

main87907-28030iAHR20..CBU201605

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-28A20iAHR20..CBU200812-200912

main87910-28A21iAHR20..CBU200912-201204

main87910-28A30iAHR20..X200606-200706

main87910-28A31supersedes 87910-28A20iAHR20..CBU; AHR20..X..CBU200908-201204

main87910-28B40supersedes 87910-28B30iAHR20..CBU201204-201409

main87910-28B90iAHR20..CBU201304-201409

main87910-28C00iAHR20..CBU201304-201409

main87910-28C20supersedes 87910-28C10iAHR20..CBU201409-201605

main87910-28C30supersedes 87910-28C10iAHR20..CBU201409-201605

main87910-28C40supersedes 87910-28C10iAHR20..CBU201409-201605

87915COVER, OUTER MIRROR, RH

main87915-28060-A1iAHR20..CBU200812-201204

WHITE PEARL CS.,070

main87915-28060-B0iAHR20..CBU200606-200812

SILVER ME.,1F7

main87915-28060-B7iAHR20..CBU201204-201605

ICE TITANIUM M.M.,1H4

main87915-28060-C0iAHR20..CBU200606-200812

BLACK,202

main87915-28060-C1iAHR20..CBU201605

SPARKLING BLACK PEARL CS.,220

main87915-28060-D1iAHR20..CBU201605

RED M.M.,3R3

main87915-28060-D2iAHR20..CBU201204-201605

DEEP RED M.M.,3R9

main87915-28060-E4iAHR20..CBU201605

DARK SHERRY M.M.,4W4

main87915-28060-J1iAHR20..CBU200606-200812

LT.BLUE M.M.,8S7

main87915-28060-J2iAHR20..CBU200812-201204

LIGHT BLUE MICA METALLIC,8U8

main87915-28060-J3iAHR20..AERAS..CBU201204-201605

GRAYISH BLUE M.M.,8V5

main87915-28060-K0iAHR20..CBU200606-200812

LT.PURPLE M.M.,9AE

87939ACOVER, OUTER MIRROR HOLE, RH

main87939-28A20iAHR20..CBU200812-201204

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-28A21iAHR20..X..CBU200812-200912

main87940-28A22iAHR20..X..CBU200912-201204

main87940-28A00supersedes 87940-28890iAHR20..CBU201204-201409

main87940-28A10iAHR20..CBU201204-201304

main87940-28A31supersedes 87940-28A21iAHR20..X..CBU200812-200907

main87940-28A32supersedes 87940-28A21iAHR20..X..CBU200908-201204

main87940-28A41iAHR20..X200606-200706

main87940-28A51iAHR20..X200606-200706

main87940-28B40supersedes 87940-28A21iAHR20..G..CBU; AHR20..X..CBU200812-201204

main87940-28B50supersedes 87940-28A21iAHR20..G..CBU; AHR20..X..CBU200812-200907

main87940-28B51supersedes 87940-28A21iAHR20..G..CBU; AHR20..X..CBU200908-201204

main87940-28B60iAHR20..CBU201204-201304

main87940-28B90iAHR20..CBU201304-201409

main87940-28C00iAHR20..CBU201304-201409

main87940-28C20supersedes 87940-28C10iAHR20..CBU201409-201605

main87940-28C30supersedes 87940-28C10iAHR20..CBU201409-201605

main87940-28C40supersedes 87940-28C10iAHR20..CBU201409-201605

87943BODY, OUTER MIRROR, LH

main8794A-28B90iAHR20..G..CBU200606-200812

87945BCOVER, OUTER MIRROR, LH

main87945-28060-A1iAHR20..CBU201204-201605

WHITE PEARL CS.,070

main87945-28060-B0iAHR20..CBU200812-201204

SILVER ME.,1F7

main87945-28060-B7iAHR20..CBU201204-201605

ICE TITANIUM M.M.,1H4

main87945-28060-C0iAHR20..CBU200606-200812

BLACK,202

main87945-28060-C1iAHR20..CBU201605

SPARKLING BLACK PEARL CS.,220

main87945-28060-D1iAHR20..CBU201605

RED M.M.,3R3

main87945-28060-D2iAHR20..CBU201204-201605

DEEP RED M.M.,3R9

main87945-28060-E4iAHR20..CBU201605

DARK SHERRY M.M.,4W4

main87945-28060-J1iAHR20..CBU200606-200812

LT.BLUE M.M.,8S7

main87945-28060-J2iAHR20..CBU200812-201204

LIGHT BLUE MICA METALLIC,8U8

main87945-28060-J3iAHR20..AERAS..CBU201204-201605

GRAYISH BLUE M.M.,8V5

main87945-28060-K0iAHR20..CBU200812-201204

LT.PURPLE M.M.,9AE

87946RETRACTOR, OUTER MIRROR, RH

main87946-28A20iAHR20..CBU200812-200912

main87946-28A21iAHR20..CBU200912-201204

main87946-28A30iAHR20..X200706-200812

main87946-28B90iAHR20..CBU201304-201409

main87946-28C00iAHR20..CBU201304-201409

main87946-28C20supersedes 87946-28C10iAHR20..CBU201605

main87946-28C30supersedes 87946-28C10iAHR20..CBU201409-201605

main87946-28C40supersedes 87946-28C10iAHR20..CBU201409-201605

87948COVER, OUTER MIRROR HOLE, LH

main87948-58150iAHR20..CBU201304-201605

87948ACOVER, OUTER MIRROR HOLE, LH

main87948-28A20iAHR20..CBU200606-200812

87950MIRROR ASSY, OUTER UNDER REAR VIEW

main87950-28160iAHR20..CBU200606-200812

main87950-28180iAHR20..X..CBU200812-201204

87966RETRACTOR, OUTER MIRROR, LH

main87966-28A20iAHR20..X..CBU200812-200912

main87966-28A21iAHR20..X..CBU200912-201204

main87966-28A30supersedes 87966-28A20iAHR20..X200606-200812

main87966-28A40iAHR20..X200606-200706

main87966-28A50iAHR20..X200606-200706

main87966-28B40supersedes 87966-28A20iAHR20..G..CBU; AHR20..X..CBU200812-201204

main87966-28B50supersedes 87966-28A20iAHR20..G..CBU; AHR20..X..CBU200812-201204

main87966-28C20supersedes 87966-28C10iAHR20..CBU201409-201605

main87966-28C30supersedes 87966-28C10iAHR20..CBU201409-201605

main87966-28C40supersedes 87966-28C10iAHR20..CBU201409-201605

87973COVER, OUTER UNDER RR VIEW MIRROR

main87973-28080iAHR20..CBU201605

9015960275

main90159-60275

9415180600

main94151-80600

23 parts on this diagram · 3 diagrams in section
