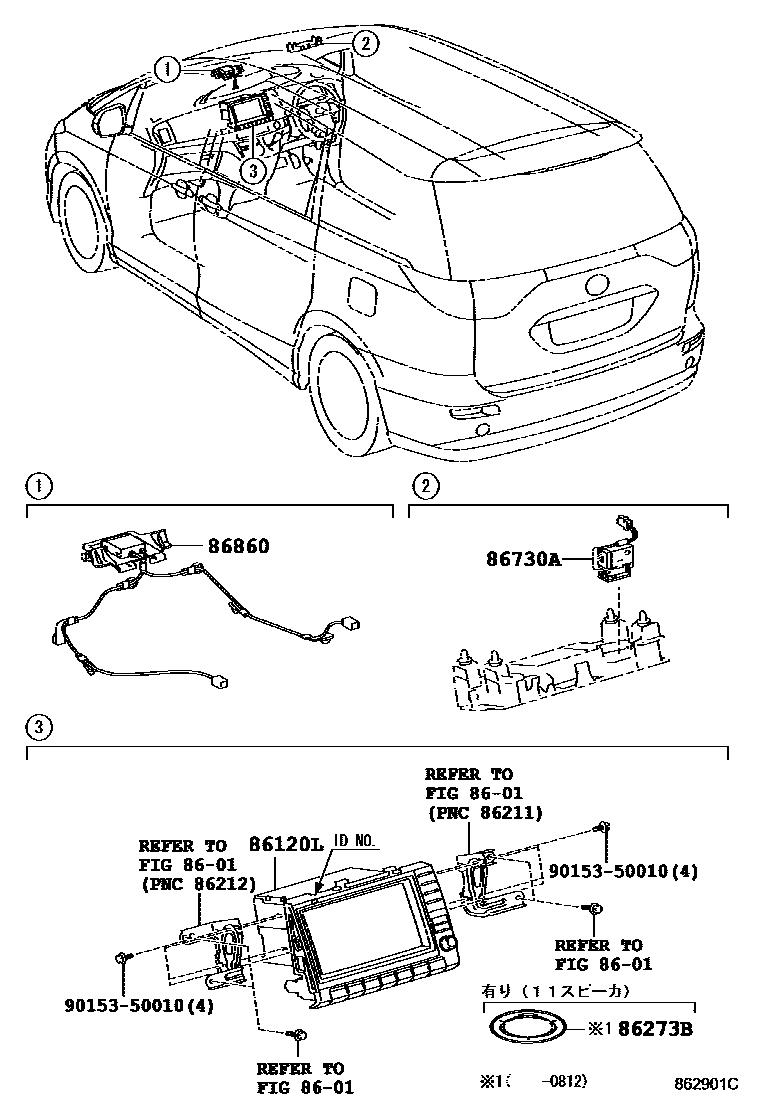

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-28021iAHR20..G..CBU; AHR20..X200606-200608

main86100-28022iAHR20..G..CBU; AHR20..X200609-200703

main86100-28023iAHR20..G..CBU; AHR20..X200704-200709

main86100-28024iAHR20..G..CBU; AHR20..X200710-200803

main86100-28025iAHR20..G..CBU; AHR20..X200804-200808

main86100-28026iAHR20..G..CBU; AHR20..X200809-200812

main86100-28100iAHR20..G..CBU; AHR20..X..CBU200812-200903

main86100-28101iAHR20..G..CBU; AHR20..X..CBU200904-200908

main86100-28102iAHR20..G..CBU; AHR20..X..CBU200909-200912

main86100-28130iAHR20..G..CBU; AHR20..X..CBU200912-201003

main86100-28131iAHR20..G..CBU; AHR20..X..CBU201004-201008

main86100-28132iAHR20..G..CBU; AHR20..X..CBU201009-201103

main86100-28133iAHR20..G..CBU; AHR20..X..CBU201104-201107

main86100-28134iAHR20..G..CBU; AHR20..X..CBU201108-201204

main86100-28150iAHR20..(AERAS,X)..CBU; AHR20..G201204-201205

main86100-28151iAHR20..(AERAS,X)..CBU; AHR20..G201206-201208

main86100-28152iAHR20..(AERAS,X)..CBU; AHR20..G201209-201304

main86804-28010iAHR20..(AERAS,X)..CBU; AHR20..G201304-201605

main86100-28031iAHR20..CBU200606-200608

main86100-28032iAHR20..CBU200609-200703

main86100-28033iAHR20..CBU200704-200708

main86100-28034iAHR20..CBU200709-200803

main86100-28035iAHR20..CBU200804-200807

main86100-28036iAHR20..CBU200808-200812

86273BADAPTER, DISC PLAYER

main86273-58010iAHR20..CBU200606-200812

86730AMICROPHONE ASSY, TELEPHONE

main86730-28020iAHR20..G..CBU; AHR20..X200606-200812

86860ANTENNA ASSY, NAVIGATION

main86860-28150iAHR20..G..CBU; AHR20..X200606-200812

main86870-28010iAHR20..G..CBU; AHR20..X200606-200812

main86870-28020iAHR20..G..CBU; AHR20..X200606-200812

main86870-28030iAHR20..G..CBU; AHR20..X200606-200812

main86870-28080iAHR20..X..CBU200912-201204

main86870-28090iAHR20..X..CBU200812-200912

main86870-28100iAHR20..(AERAS,X)..CBU; AHR20..G201204-201605

main86880-28010supersedes 86870-28100iAHR20..(AERAS,X)..CBU; AHR20..G201204-201605

main86880-28020iAHR20..(AERAS,X)..CBU201204-201605

9015350010

main90153-50010

6 parts on this diagram · 2 diagrams in section
