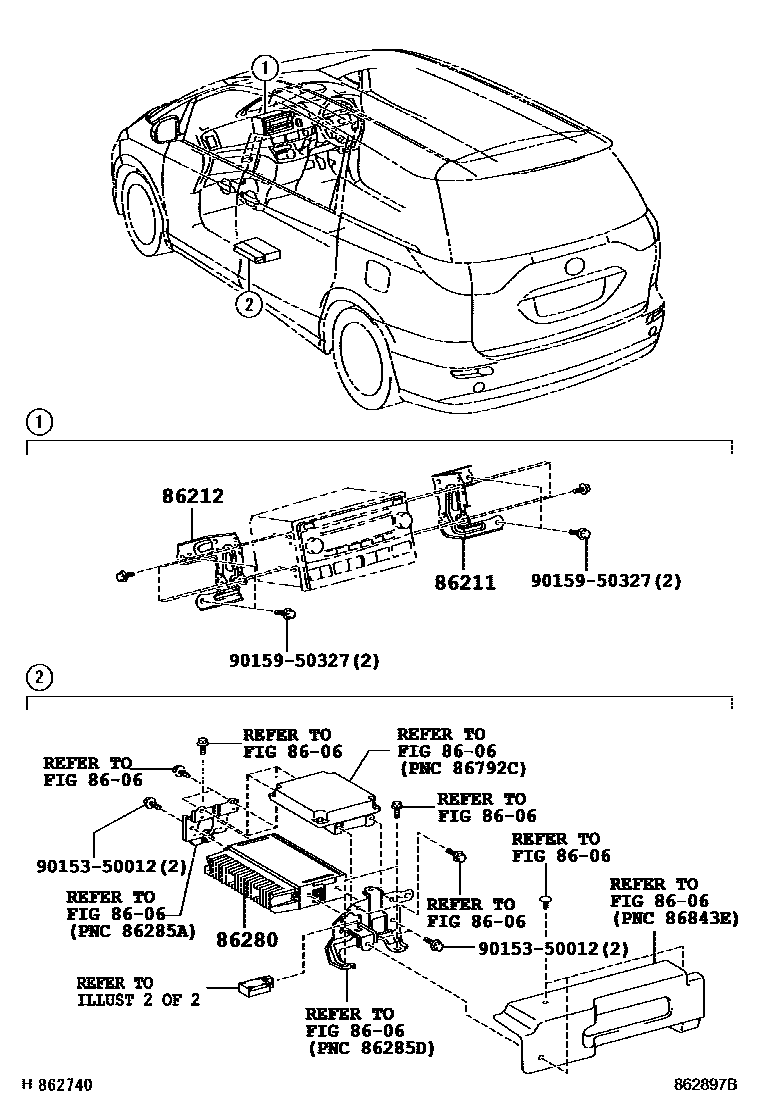

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1������ & ���������������

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

86211BRACKET, RADIO, NO.1

main86211-28170supersedes 86211-28160iAHR20..(AERAS,X)..CBU; AHR20..G201204-201605

main86211-28210iAHR20..CBU201605

86212BRACKET, RADIO, NO.2

main86212-28170supersedes 86212-28160iAHR20..(AERAS,X)..CBU; AHR20..G201204-201605

main86212-28210iAHR20..CBU201605

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-28240iAHR20..(AERAS,X)..CBU; AHR20..G201204-201304

main86280-28290iAHR20..(AERAS,X)..CBU; AHR20..G201304-201605

main86280-28220iAHR20..CBU200606-200812

main86280-28250iAHR20..CBU200812-200912

main86280-28300iAHR20..CBU201304-201605

9015350012

main90153-50012

9015950327

main90159-50327

6 parts on this diagram · 5 diagrams in section
