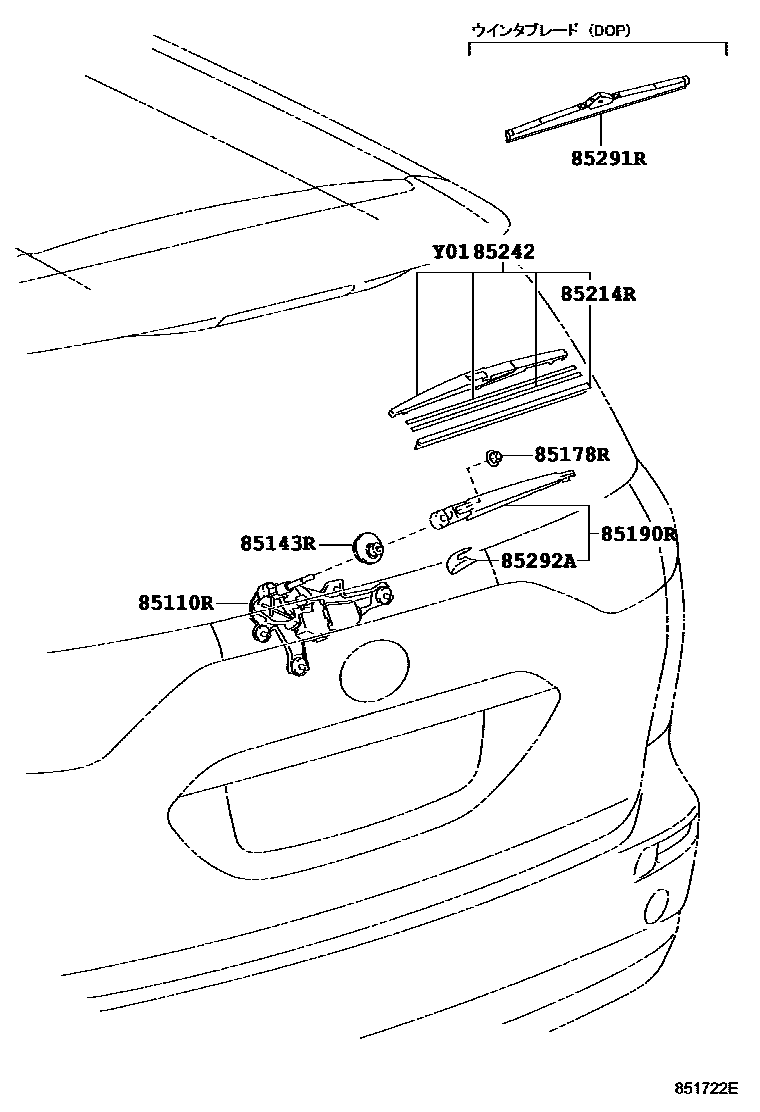

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-28080iAHR20..CBU200606-201605

main85130-28110iAHR20..CBU201605

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iAHR20..CBU200606-201605

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAHR20..CBU200606-201605

85190RARM ASSY, REAR WIPER

main85241-28100iAHR20..CBU200606-201605

85214RRUBBER, REAR WIPER

main85214-31010iAHR20..CBU200606-200912

main85214-42040iAHR20..CBU201001-201605

85242BLADE, RR WIPER

main85242-42030iAHR20..CBU200606-201605

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iAHR20..CBU200606-201605

8 parts on this diagram · 1 diagram in section
