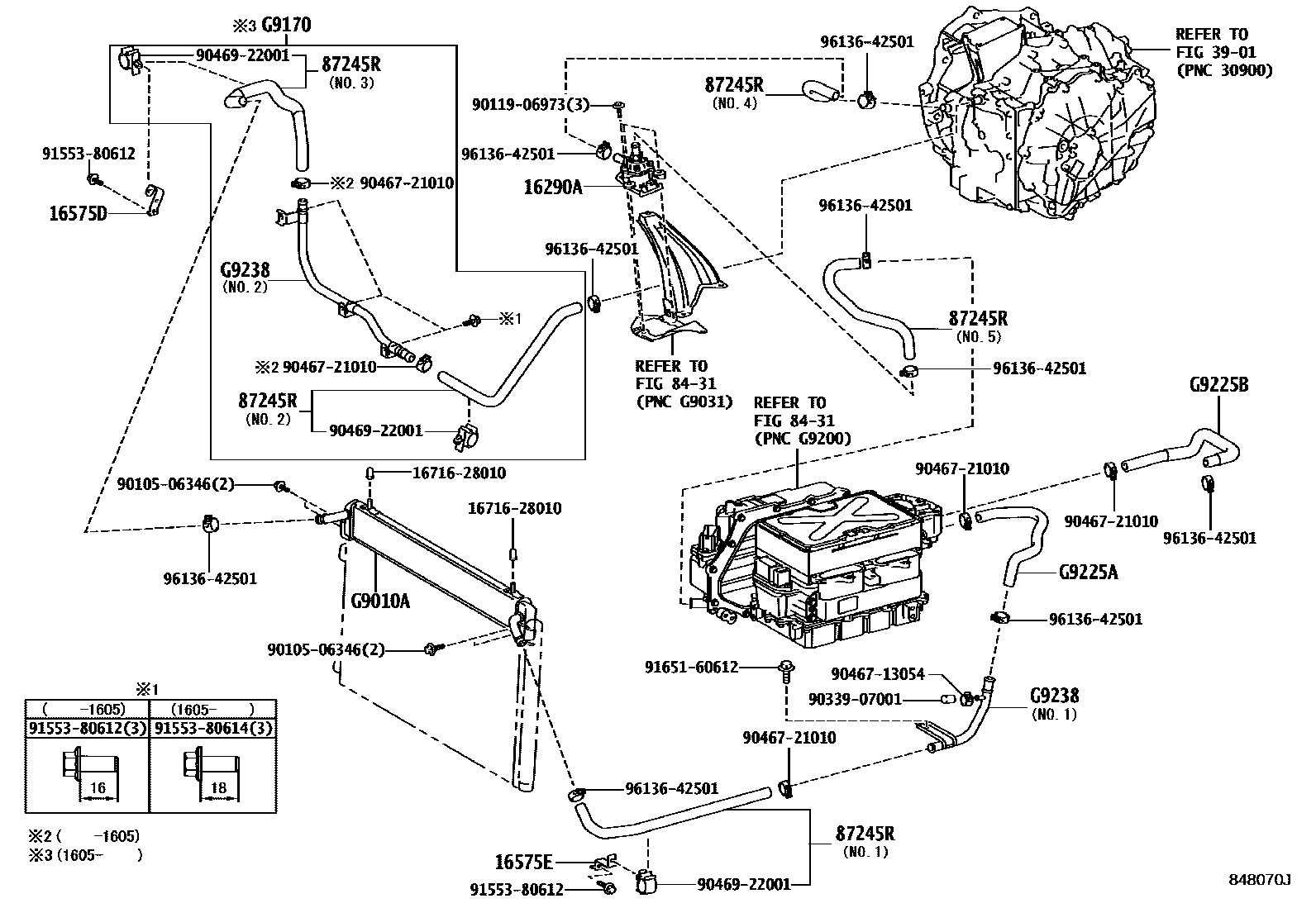

INVERTER COOLING

16290APUMP ASSY, WATER W/MOTOR & BRACKET

mainG902028030i2AZFXE..AHR20..CBU200606-200803

mainG904028010i2AZFXE..AHR20..CBU200804-200812

16575DBRACKET, WATER HOSE CLAMP, NO.1

main16575-28010i2AZFXE..AHR20..CBU200606-200812

mainG923928010i2AZFXE..AHR20..CBU200812-201204

16575EBRACKET, WATER HOSE CLAMP, NO.2

main16575-28020i2AZFXE..AHR20..CBU201204-201605

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8431HEV INVERTER

→ Go to FIG 84-31

87245RHOSE, WATER

mainG922528030iAHR20..CBU200606-200812

mainG922528040iAHR20..CBU200812-201204

mainG922528050iAHR20..CBU200606-200812

mainG922528060iAHR20..CBU201605

mainG922528070iAHR20..CBU201605

mainG922528100iAHR20..CBU200812-201204

mainG922528110iAHR20..CBU200812-201204

mainG922528120iAHR20..CBU201204-201605

mainG922528130iAHR20..CBU201204-201605

mainG922528140iAHR20..CBU201605

mainG922528160iAHR20..CBU201605

G9010ARADIATOR ASSY

mainG901028010iAHR20..CBU200606-200806

mainG901028011iAHR20..CBU200807-200812

mainG901028020iAHR20..CBU201204-201605

G9170PIPE ASSY, INVERTER COOLING NO.1

mainG917028070iAHR20..CBU201605

G9225AHOSE, INVERTER COOLING, NO.7

mainG922528010iAHR20..CBU200606-200812

G9225BHOSE, INVERTER COOLING, NO.8

mainG922528020iAHR20..CBU200606-200812

G9238PIPE, INVERTER COOLING

mainG923828010iAHR20..CBU200606-200812

mainG923828020iAHR20..CBU200606-200812

mainG923828050iAHR20..CBU201605

1671628010CUSHION, FAN SHROUD

main16716-28010

9010506346

main90105-06346

9011906973

main90119-06973

9033907001

main90339-07001

9046713054

main90467-13054

9046721010

main90467-21010

9046922001

main90469-22001

9155380612

main91553-80612

9155380614

main91553-80614

9165160612

main91651-60612

9613642501

main96136-42501

22 parts on this diagram · 1 diagram in section
