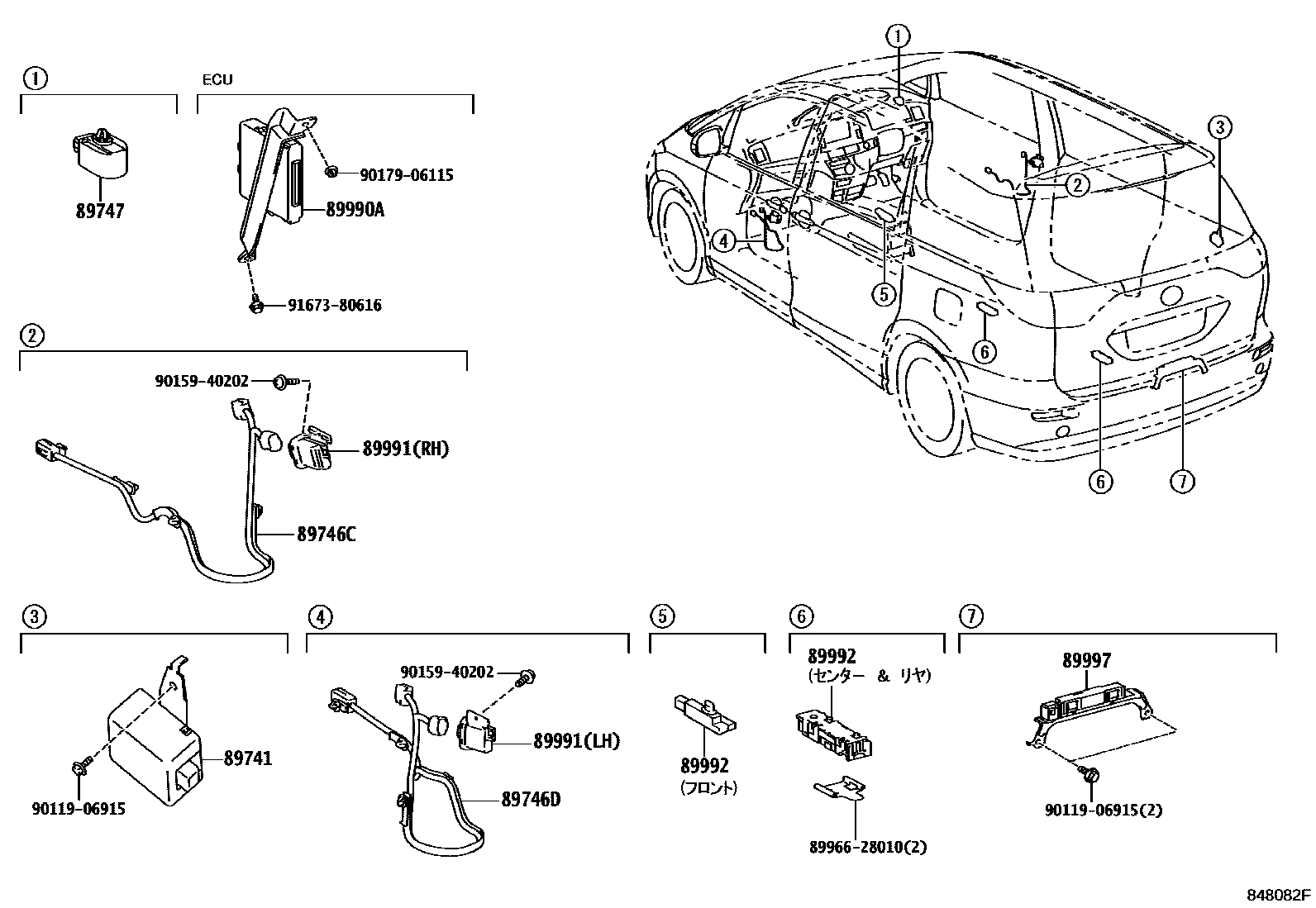

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-28021iAHR20..CBU200606-201605

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-28040iAHR20..CBU200606-201605

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-28050iAHR20..CBU200606-201605

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iAHR20..CBU200606-201605

89990ACOMPUTER ASSY, SMART KEY

main89990-28031iAHR20..CBU200606-200812

main89990-28060iAHR20..CBU201605

main89990-28100iAHR20..CBU200812-201204

main89990-28240iAHR20..CBU201204-201605

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-28020iAHR20..CBU200606-201605

main89991-28030iAHR20..CBU200606-201605

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-28010iAHR20..CBU200606-201605

main89992-28041iAHR20..CBU200606-201605

89997ANTENNA, ELECTRICAL KEY

main89997-28010iAHR20..CBU200606-201605

8996628010BRACKET, OSCILLATOR ELECTRICAL KEY

main89966-28010

9011906915

main90119-06915

9015940202

main90159-40202

9017906115

main90179-06115

9167380616

main91673-80616

13 parts on this diagram · 1 diagram in section
