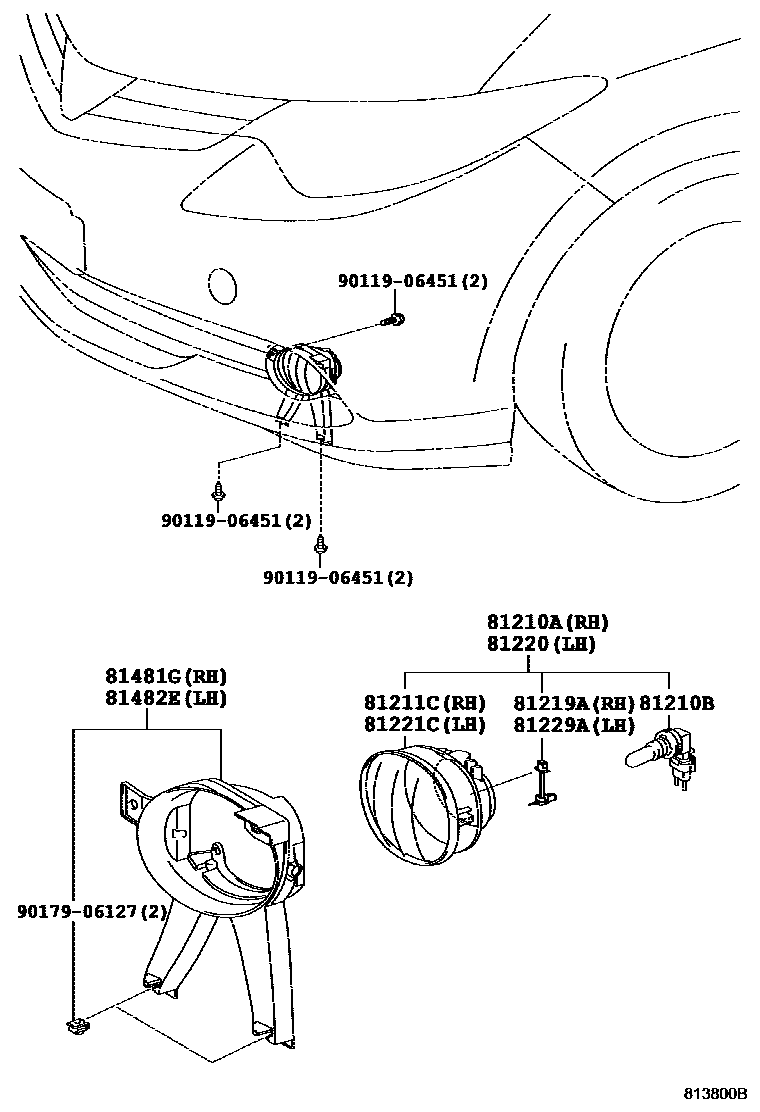

FOG LAMP

0001 1 0002 1 0003 1 0004 1

81210ALAMP ASSY, FOG, RH

main81210-12230iAHR20..AERAS..CBU201204-201410

main81210-42050iAHR20..CBU200606-200812

main81210-47010iAHR20..AERAS..CBU201411-201605

main81210-60180iAHR20..(G,X)..CBU201204-201411

main81210-60200iAHR20..(G,X)..CBU201412-201605

81210BBULB, FOG LAMP

main90981-13047×2iAHR20..CBU200606-200812

main90981-13090×2iAHR20..CBU201204-201605

81211CLAMP UNIT, FOG LAMP, RH

main81211-12230iAHR20..AERAS..CBU201204-201410

main81211-42050iAHR20..CBU200606-200812

main81211-47010iAHR20..AERAS..CBU201411-201605

81219ABRACKET, FOG LAMP, RH

main81218-42050iAHR20..CBU200606-200812

81220LAMP ASSY, FOG, LH

main81220-12230iAHR20..AERAS..CBU201204-201410

main81220-42050iAHR20..CBU200812-201204

main81220-47010iAHR20..AERAS..CBU201411-201605

main81220-60100iAHR20..(G,X)..CBU201204-201411

main81220-60120iAHR20..(G,X)..CBU201412-201605

81221CLAMP UNIT, FOG LAMP, LH

main81221-12230iAHR20..AERAS..CBU201204-201410

main81221-42050iAHR20..CBU200606-200812

main81221-47010iAHR20..AERAS..CBU201411-201605

81229ABRACKET, FOG LAMP, LH

main81228-42050iAHR20..CBU200606-200812

81481GBRACKET, FOG LAMP, RH

main81481-28190iAHR20..CBU200606-200812

main81481-28280iAHR20..CBU200812-201204

81482EBRACKET, FOG LAMP, LH

main81482-28110iAHR20..CBU200606-200812

main81482-28280iAHR20..CBU200812-201204

9011906451

main90119-06451

9017906127

main90179-06127

11 parts on this diagram · 4 diagrams in section
