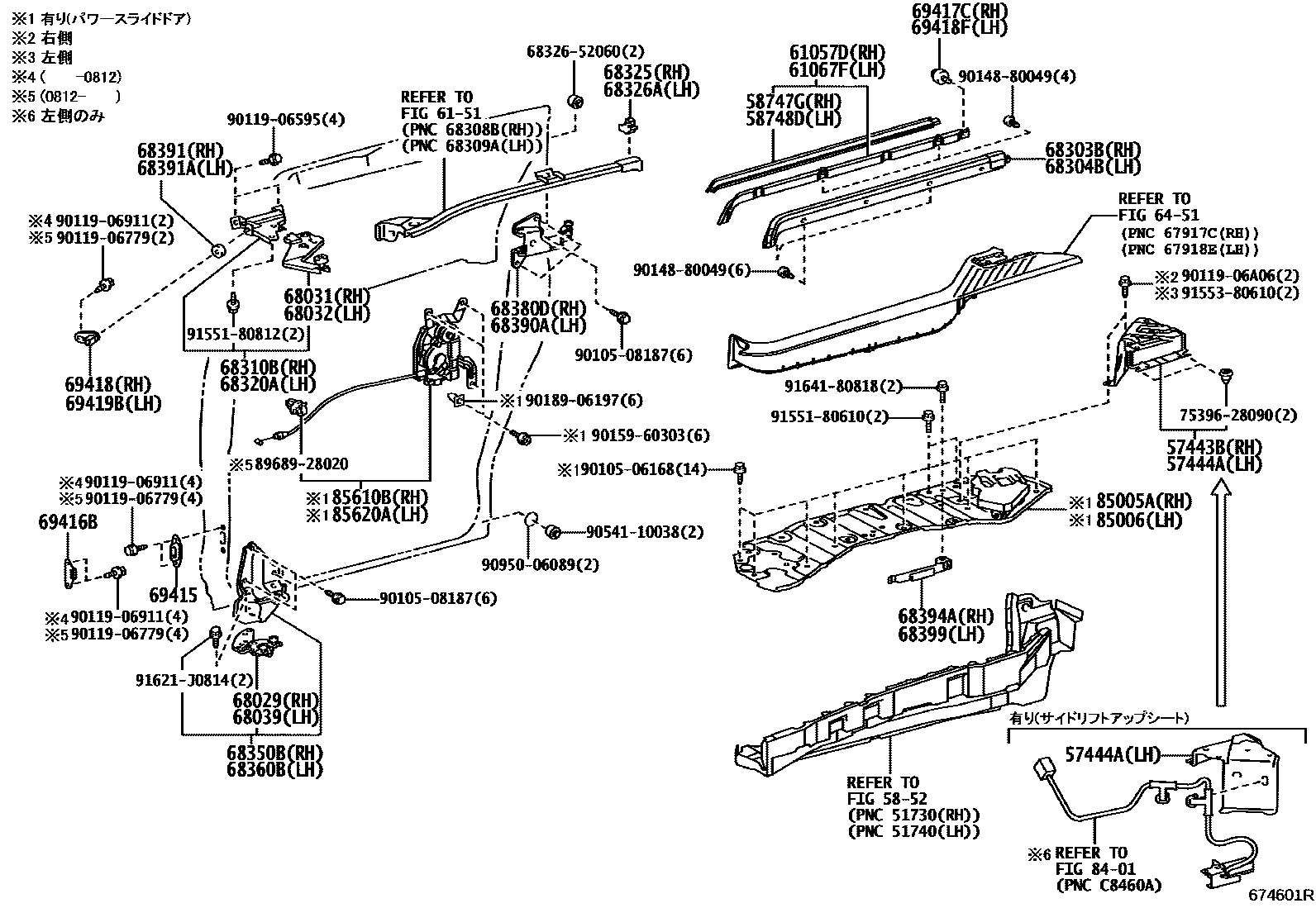

SLIDE ROLLER & RAIL

57443BSUPPORT, SIDE STEP, REAR RH

main51078-28020iAHR20..CBU200812-201204

57444ASUPPORT, SIDE STEP, REAR LH

main51079-28040iAHR20..CBU200606-200812

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

58747GPROTECTOR, QUARTER PANEL, REAR RH

main58747-28040iAHR20..CBU200606-200812

58748DPROTECTOR, QUARTER PANEL, REAR LH

main58748-28020iAHR20..CBU200606-200812

61057DRAIL SUB-ASSY, REAR SIDE, RH

main61057-28030iAHR20..CBU200606-200812

61067FRAIL SUB-ASSY, REAR SIDE, LH

main61067-28040iAHR20..CBU200606-200812

6151SIDE MEMBER

→ Go to FIG 61-51

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-28060iAHR20..CBU200606-200812

68031ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH

main68031-28020iAHR20..CBU200606-200812

main68031-28021iAHR20..CBU201407-201605

68032ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH

main68032-28020iAHR20..CBU200606-200812

main68032-28021iAHR20..CBU201407-201605

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-28070iAHR20..CBU200606-200812

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-28080iAHR20..CBU200606-200812

main68303-28100iAHR20..CBU201204-201605

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-28110iAHR20..CBU200606-200812

main68304-28130iAHR20..CBU201204-201605

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-28060iAHR20..CBU200606-200812

main68310-28100iAHR20..CBU201010-201204

main68310-28101iAHR20..CBU201407-201605

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-28070iAHR20..CBU200606-200812

main68320-28120iAHR20..CBU201010-201204

main68320-28121iAHR20..CBU201407-201605

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-28030iAHR20..CBU200606-200812

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-28030iAHR20..CBU200606-200812

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-28060iAHR20..CBU200606-200812

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-28080iAHR20..CBU200606-200812

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-28050iAHR20..CBU200606-200812

main68380-28051iAHR20..CBU201010-201204

main68380-28110iAHR20..CBU201204-201605

main68380-28111iAHR20..CBU201611-201703

main68380-28112iAHR20..CBU201704

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-28070iAHR20..CBU200606-200812

main68390-28071iAHR20..CBU201010-201204

main68390-28130iAHR20..CBU201204-201605

main68390-28131iAHR20..CBU201611-201703

main68390-28132iAHR20..CBU201704

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

main68391-28040iAHR20..CBU201204-201605

68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH

main68391-28040iAHR20..CBU200606-200812

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-28030iAHR20..CBU200606-200812

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-28040iAHR20..CBU201605

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-28021×2iAHR20..CBU200606-200812

main69415-58020×2iAHR20..CBU201907

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69046-28020×2iAHR20..CBU201605

main69046-28080×2iAHR20..CBU200606-200811

main69046-58010×2iAHR20..CBU200811-200812

69417CCUSHION, SLIDE DOOR OPEN STOPPER, RH

main69417-44010iAHR20..CBU200812-201204

69418STOP, SLIDE DOOR OPEN

main69418-28100iAHR20..CBU200606-200812

69418FCUSHION, SLIDE DOOR OPEN STOPPER, LH

main69417-44010iAHR20..CBU200606-200812

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-28040iAHR20..CBU200606-200812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-28021iAHR20..G..CBU; AHR20..X200606-200710

main85005-28022iAHR20..G..CBU; AHR20..X200711-200812

main85005-28060iAHR20..G..CBU; AHR20..X..CBU200812-201009

main85005-28061iAHR20..G..CBU; AHR20..X..CBU201010-201011

main85005-28120iAHR20..G..CBU; AHR20..X..CBU201012-201204

main85005-28170iAHR20..(AERAS,G)..CBU; AHR20..X..CBU201204-201605

85006MOTOR UNIT, SLIDE DOOR, LH

main85006-28051iAHR20..CBU200606-200710

main85006-28052iAHR20..CBU200711-200812

main85006-28080iAHR20..CBU200812-201009

main85006-28081iAHR20..CBU201010-201011

main85006-28110iAHR20..CBU201012-201204

main85006-28150iAHR20..CBU201204-201605

85610BMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH

main85610-28030iAHR20..G..CBU; AHR20..X200606-200704

main85610-28031iAHR20..G..CBU; AHR20..X200705-200812

85620AMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH

main85620-28050iAHR20..CBU200606-200703

main85620-28051iAHR20..CBU200704-200812

6832652060CLIP(FOR TAIL GATE REMOTE CONTROL LINK)

main68326-52060

7539628090CLIP, OUTSIDE MOULDING, NO.2

main75396-28090

8968928020CLAMP, WIRELESS DOOR LOCK

main89689-28020

9010506168

main90105-06168

9010508187

main90105-08187

9011906595

main90119-06595

9011906779

main90119-06779

9011906911

main90119-06911

9011906A06

main90119-06A06

9014880049

main90148-80049

9015960303

main90159-60303

9018906197

main90189-06197

9054110038

main90541-10038

9095006089

main90950-06089

9155180610

main91551-80610

9155180812

main91551-80812

9155380610

main91553-80610

91621J0814

main91621-J0814

9164180818

main91641-80818

57 parts on this diagram · 1 diagram in section
