51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-28070i201204-201605

51402ABRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-28060i200812-201204

51681CPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080i200812-201204

51682EPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080i200606-200812

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110i200812-201204

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070i200606-200812

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010i200812-201204

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010i201605

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-28020i200606-200812

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-28010i200606-200812

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-28020i201204-201605

57054REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.5

main57054-28010i200803-200812

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28880i200606-200803

main57101-28881i200812-201109

main57101-28882i201110-201204

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28760i200606-200803

main57102-28761i200812-201109

main57102-28762i201605

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160i201605

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150i201204-201605

57111MEMBER, FRONT SIDE, RH

main57111-12230i201204-201605

main57111-42060i200812-200903

57112MEMBER, FRONT SIDE, LH

main57112-28270i201204-201605

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220i201605

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12190i201204-201406

main57114-12191i201605

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-12010i201405-201605

main57115-12090i200812-201204

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-12020i201405-201605

main57116-12091i201401-201405

main57116-42030i201204-201312

57165CGUSSET, FLOOR MEMBER, RH

main57165-28040i200606-200802

main57165-28041i201605

57166AGUSSET, FLOOR MEMBER, LH

main57166-28030i200606-200802

main57166-28031i201605

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-28030i200606-200803

main57411-28031i201204-201605

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-28030i200606-200803

main57412-28031i201605

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-28040i201204-201605

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-28040i201204-201605

57421CPLATE, FLOOR SIDE RAIL, RH

main57421-28130i201204-201605

57422BPLATE, FLOOR SIDE RAIL, LH

main57422-28100i201605

57423BREINFORCEMENT, FRONT FLOOR UNDER, INNER RH

main57423-28050i201605

57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH

main57424-28040i201204-201605

57451MEMBER, FRONT FLOOR CROSS

main57408-28120i201605

57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH

main57453-28050i201605

57454AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH

main57454-28020i201605

57475CPLATE, FRONT FLOOR CROSSMEMBER

main57475-28070i200606-200812

5752HOLE PLUG

→ Go to FIG 57-52

57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57603-28090i201204-201605

57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57604-28060i201204-201605

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57605-28410i200606-200812

main57652-28150i201605

58111PAN, FRONT FLOOR

main58111-28F50i200606-200706

main58111-28F60supersedes 58111-28F40i201605

main58111-28F70i201204-201304

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-28040i200606-200812

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-28060i200606-200812

58171AREINFORCE, PARKING BRAKE BASE

main58171-28050i200606-200812

58172APLATE, PARKING BRAKE MOUNTING

main58172-28060i200606-200812

58181DRETAINER, PARKING BRAKE

main58181-28090i200606-200812

58396EBRACKET, WIRE HARNESS CLAMP

main58396-28060i200606-200812

9011506166

main90115-06166

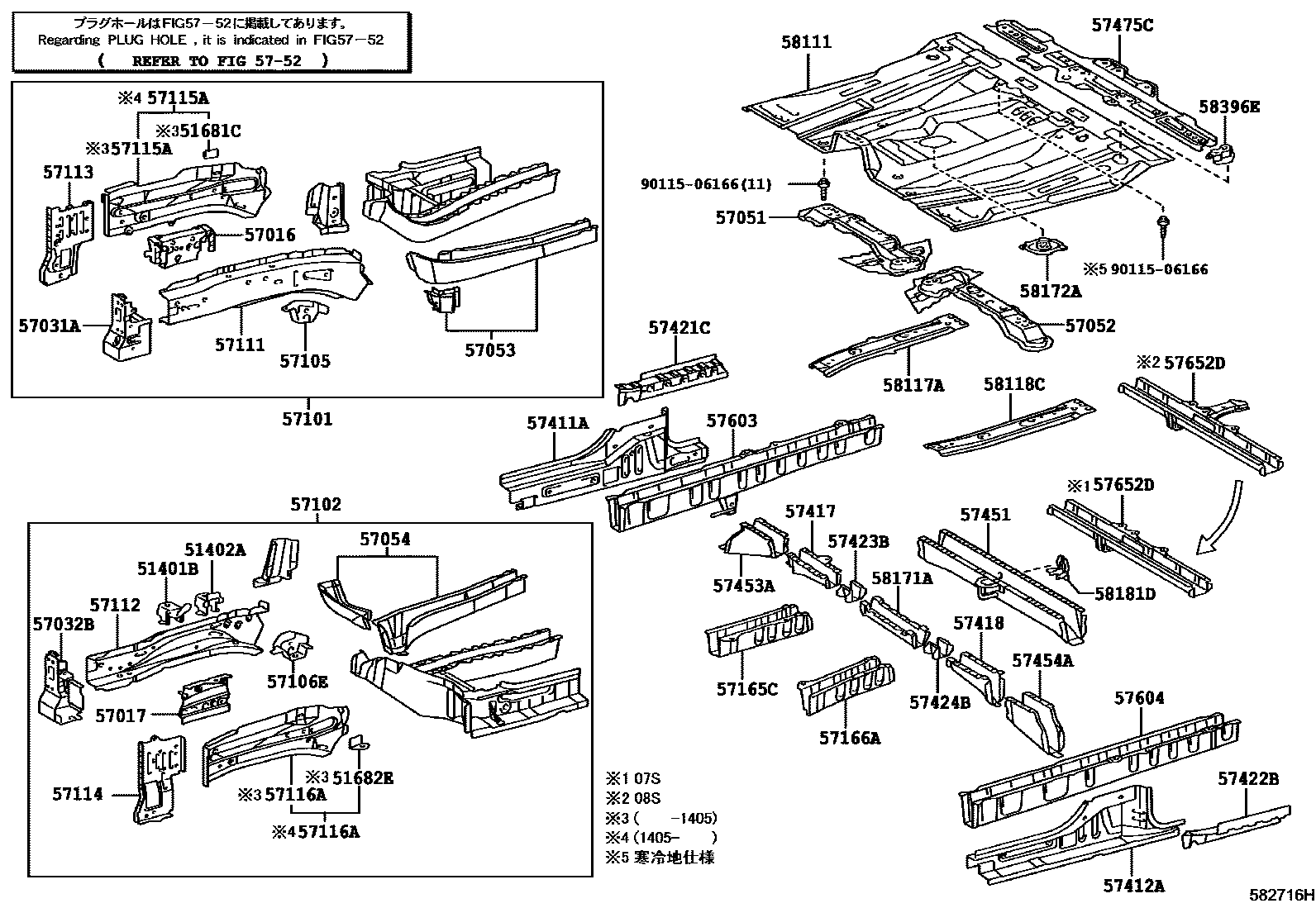

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
