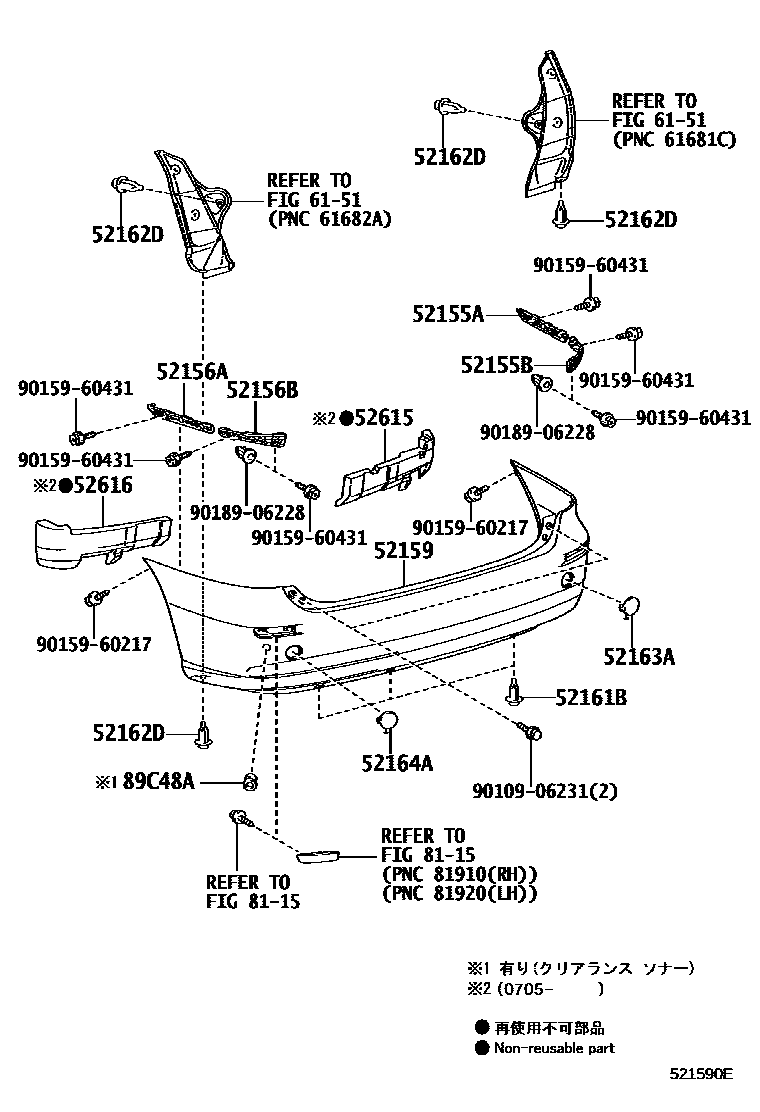

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52155BSUPPORT, REAR BUMPER SIDE, NO.2 RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52156BSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
LT.BLUE M.M.,8S7
LT.PURPLE M.M.,9AE
WHITE PEARL CS.,070
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
BORDEAUX M.M,3R9
LIGHT BLUE MICA METALLIC,8U8
GRAYISH BLUE M.M.,8V5
LT.PURPLE M.M.,9AE
52161BPIECE, REAR BUMPER
52162DPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
LT.BLUE M.M.,8S7
LT.PURPLE M.M.,9AE
52164APLATE, REAR BUMPER, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
LT.BLUE M.M.,8S7
LT.PURPLE M.M.,9AE
52615ABSORBER, REAR BUMPER ENERGY
52616ABSORBER, REAR BUMPER ENERGY, LH
6151SIDE MEMBER
8115REFLEX REFLECTOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
9010906231
main90109-06231
9015960217
main90159-60217
9015960431
main90159-60431
9018906228
main90189-06228
18 parts on this diagram · 3 diagrams in section
