STEERING COLUMN & SHAFT

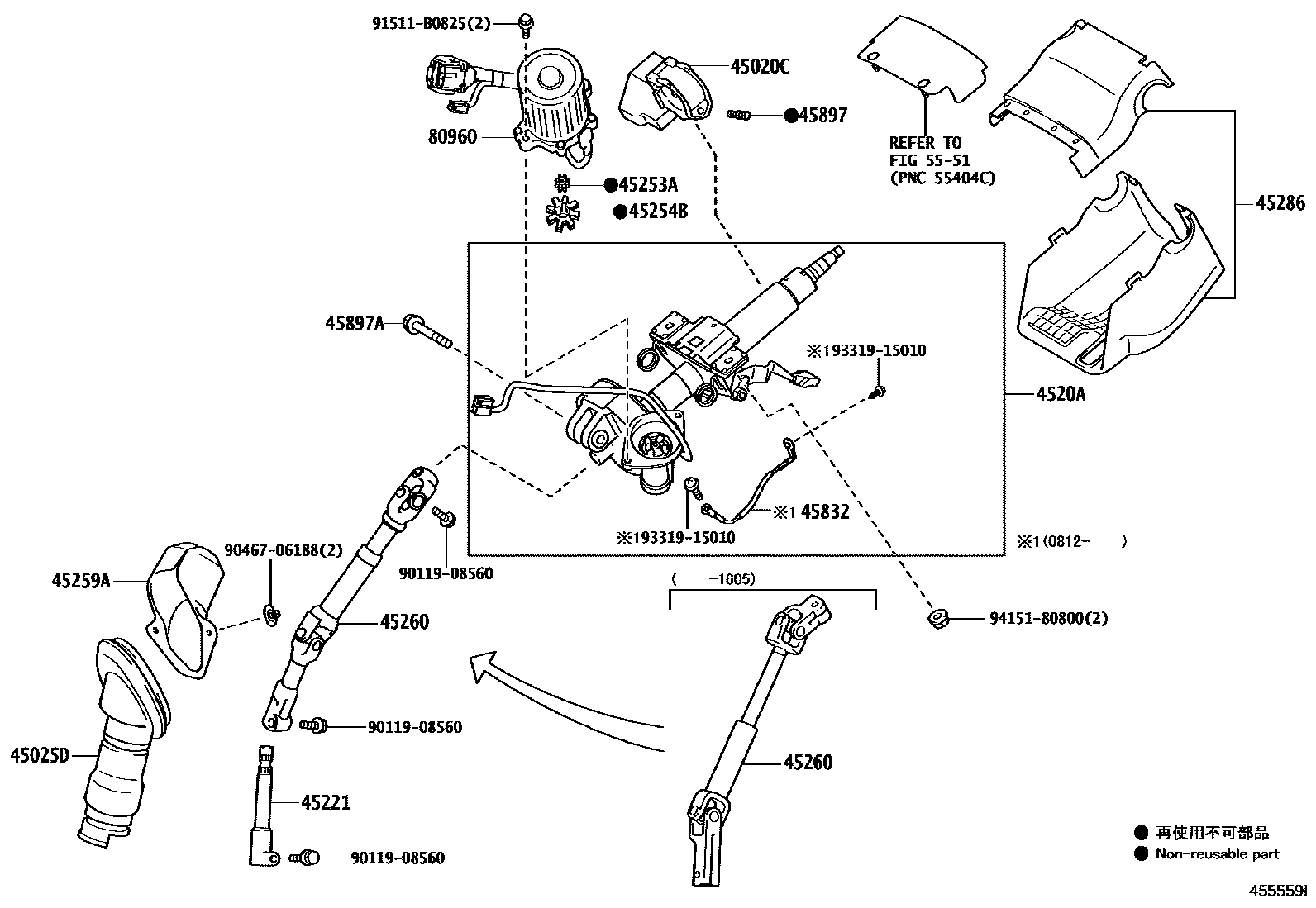

Parts diagram

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-42150i200812-201204

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-28090i200606-200812

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-28010i200606-200812

main4520A-28160i201605

45221SHAFT, STEERING INTERMEDIATE

main45221-28140i200606-200812

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130i200812-201204

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040i200606-200812

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-28010i200606-200812

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-28110i200606-200812

main45260-28180i201605

45286COVER, STEERING COLUMN

main45286-28902-E0i200606-200805

GREGE,TRIM4#

main45286-28905-A0i201502-201605

SHELL,TRIM0#

main45286-28905-C0i201204-201402

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45286-28905-E0i200805-200812

GREGE,TRIM4#

main45286-28908-A0i201402-201502

SHELL,TRIM0#

main45286-28908-C0i201402-201502

BLACK,TRIM2#; BLACK,TRIM2#,4#

main45286-28910-C0i201605

BLACK,TRIM0#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#

45832CABLE, TILT STEERING SUPPORT BOND

main45832-21010i201605

45897BOLT, STEERING LOCK SET

main45897-12020i201204-201605

45897ABOLT, TILT STEERING PAWL SET

main45897-42010i201204-201211

main90119-10980i201212-201605

main90119-10981i201605

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

80960MOTOR ASSY, POWER STEERING

main80960-28080i200606-200812

main80960-28081i201204-201605

9011908560

main90119-08560

9046706188

main90467-06188

91511B0825

main91511-B0825

9331915010

main93319-15010

9415180800

main94151-80800

19 parts on this diagram · 1 diagram in section
