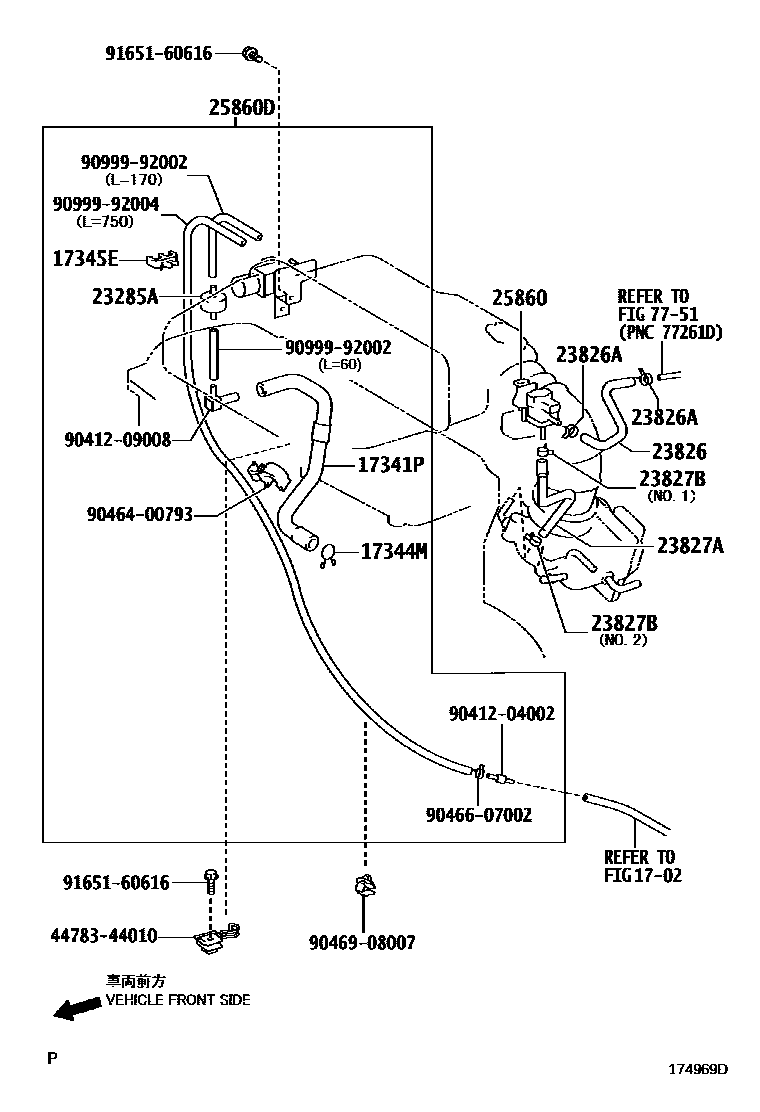

Toyota ESTIMA HYBRID — VACUUM PIPING
1702EXHAUST PIPE
17341PHOSE, AIR
17344MCLIP(FOR AIR HOSE, NO.4)
17345ECLAMP OR CLIP(FOR AIR HOSE, NO.5)
23285AVALVE, CHECK, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
7751FUEL TANK & TUBE
4478344010CLAMP, VACUUM HOSE
9041204002
9041209008
9046400793
9046607002
9046908007
9099992002
9099992004
9165160616
21 parts on this diagram · 2 diagrams in section
VACUUM PIPING for Toyota ESTIMA HYBRID
This section contains 25 genuine Toyota parts for the VACUUM PIPING system of the Toyota ESTIMA HYBRID. Key components include: MANIFOLD, EXHAUST PIPE, HOSE, AIR, CLIP(FOR AIR HOSE, NO.4), CLAMP OR CLIP(FOR AIR HOSE, NO.5).
