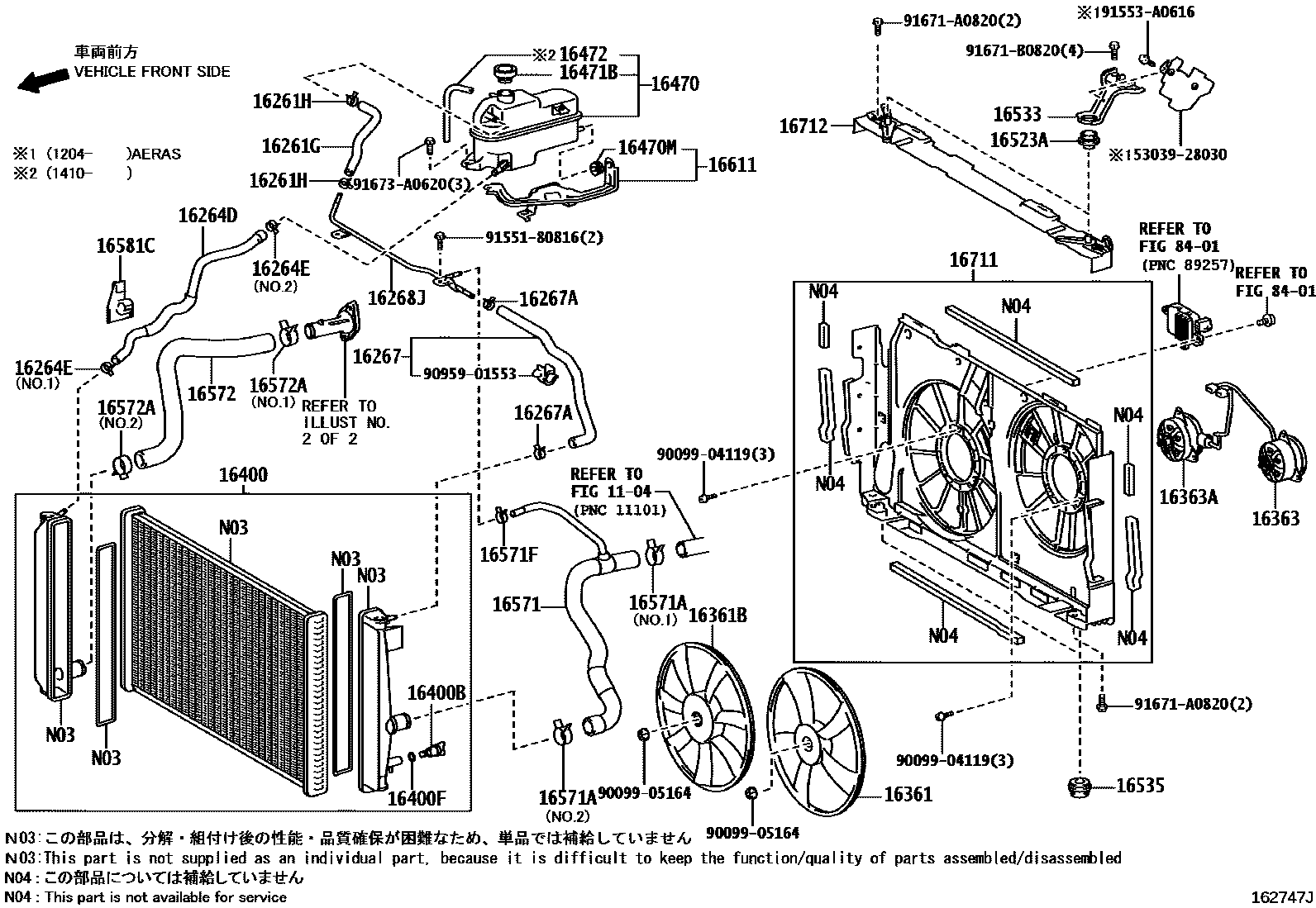

RADIATOR & WATER OUTLET
1104CYLINDER HEAD
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16264HOSE, WATER BY-PASS, NO.2
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268PIPE, WATER BY-PASS, NO.1
16268JPIPE, WATER BY-PASS, NO.5
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16471BCAP, RESERVE TANK
16472HOSE, BREATHER
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571FCLAMP OR CLIP(FOR WATER HOSE)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
8401SWITCH & RELAY & COMPUTER
5303928030SEAL, RADIATOR, UPPER
main53039-28030
9009904119
main90099-04119
9009905164
main90099-05164
9095901553
main90959-01553
9155180816
main91551-80816
91553A0616
main91553-A0616
91671A0820
main91671-A0820
91671B0820
main91671-B0820
91673A0620
main91673-A0620
44 parts on this diagram · 3 diagrams in section
