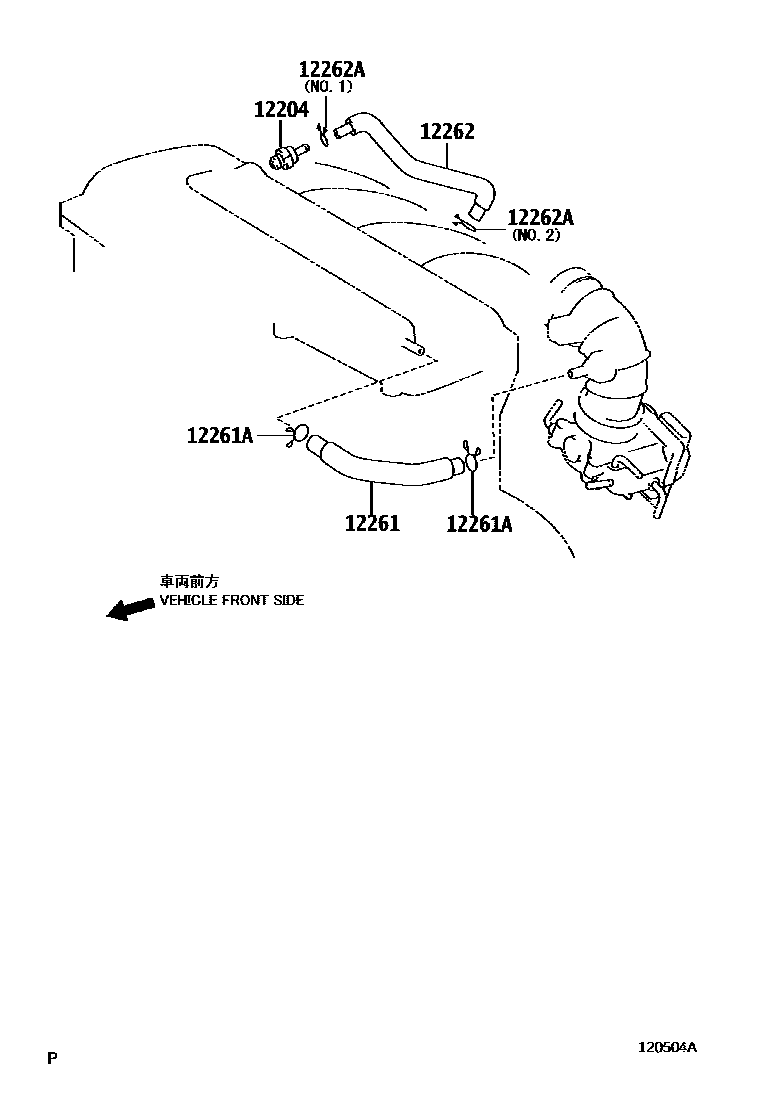

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-28030i2AZFXE..AHR20..CBU200606-200812

main12204-28050i2AZFXE..AHR20..CBU201405-201605

12261HOSE, VENTILATION

main12261-28170i2AZFXE..AHR20..CBU200606-200812

main12261-28171i2AZFXE..AHR20..CBU201410-201605

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-19003×2i2AZFXE..AHR20..CBU201410-201605

main96134-41900×2i2AZFXE..AHR20..CBU201204-201409

12262HOSE, VENTILATION, NO.2

main12262-28021i2AZFXE..AHR20..CBU200812-201204

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-13103i2AZFXE..AHR20..CBU200812-201204

main90467-16035i2AZFXE..AHR20..CBU201605

5 parts on this diagram · 1 diagram in section
