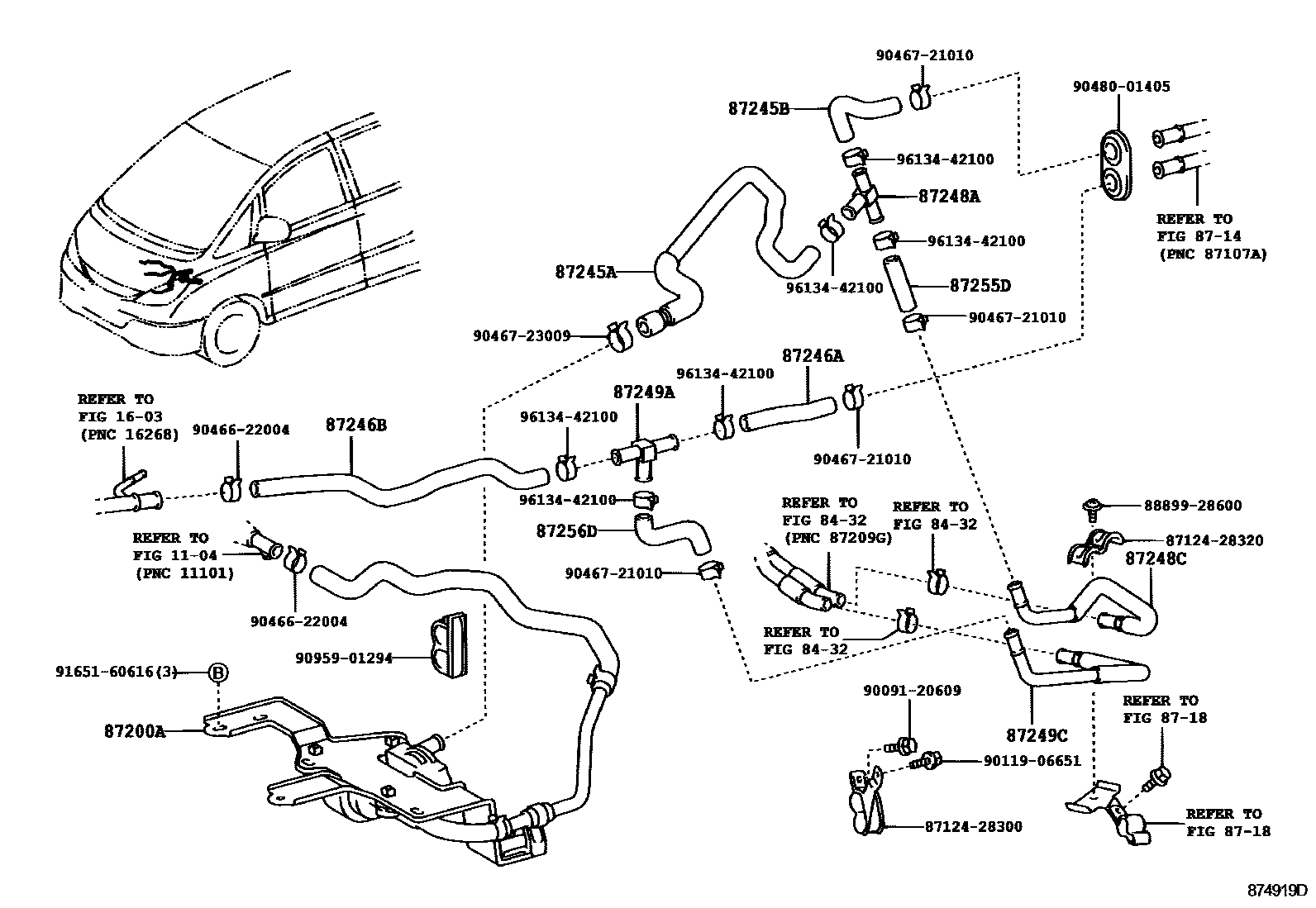

HEATING & AIR CONDITIONING - WATER PIPING

0001 1���� 0002 1����--��(�� �-�) 0003 1��

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8432INVERTER COOLING

→ Go to FIG 84-32

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

87200APUMP ASSY, WATER(FOR HEATER)

main87200-28130iAHR10200105-200308

87245AHOSE, HEATER WATER, INLET A

main87245-2J590iAHR10200105-200308

87245BHOSE, HEATER WATER, INLET B

main87245-2J600iAHR10200105-200308

87246AHOSE, HEATER WATER, OUTLET A

main87245-2J630iAHR10200105-200308

87246BHOSE, HEATER WATER, OUTLET B

main87245-2J620iAHR10200105-200308

87248APIPE, HEATER WATER INLET, A

main87248-08030iAHR10200308

87248CPIPE, HEATER WATER INLET, C

main87248-28260iAHR10200308

main87248-28290iAHR10200308

87249APIPE, HEATER WATER OUTLET, A

main87248-08030iAHR10200105-200308

87249CPIPE, HEATER WATER OUTLET, C

main87248-28250iAHR10200105-200308

87255DHOSE, REAR HEATER WATER INLET, D

main99556-30100iAHR10200105-200308

87256DHOSE, REAR HEATER WATER OUTLET, D

main87245-2J640iAHR10200105-200308

8712428300CLAMP, HEATER

main87124-28300

8712428320CLAMP, HEATER

main87124-28320

8889928600COVER, EVAPORATOR

main88899-28600

9009120609

main90091-20609

9011906651

main90119-06651

9046622004

main90466-22004

9046721010

main90467-21010

9046723009

main90467-23009

9048001405

main90480-01405

9095901294

main90959-01294

9165160616

main91651-60616

9613442100

main96134-42100

28 parts on this diagram · 3 diagrams in section
