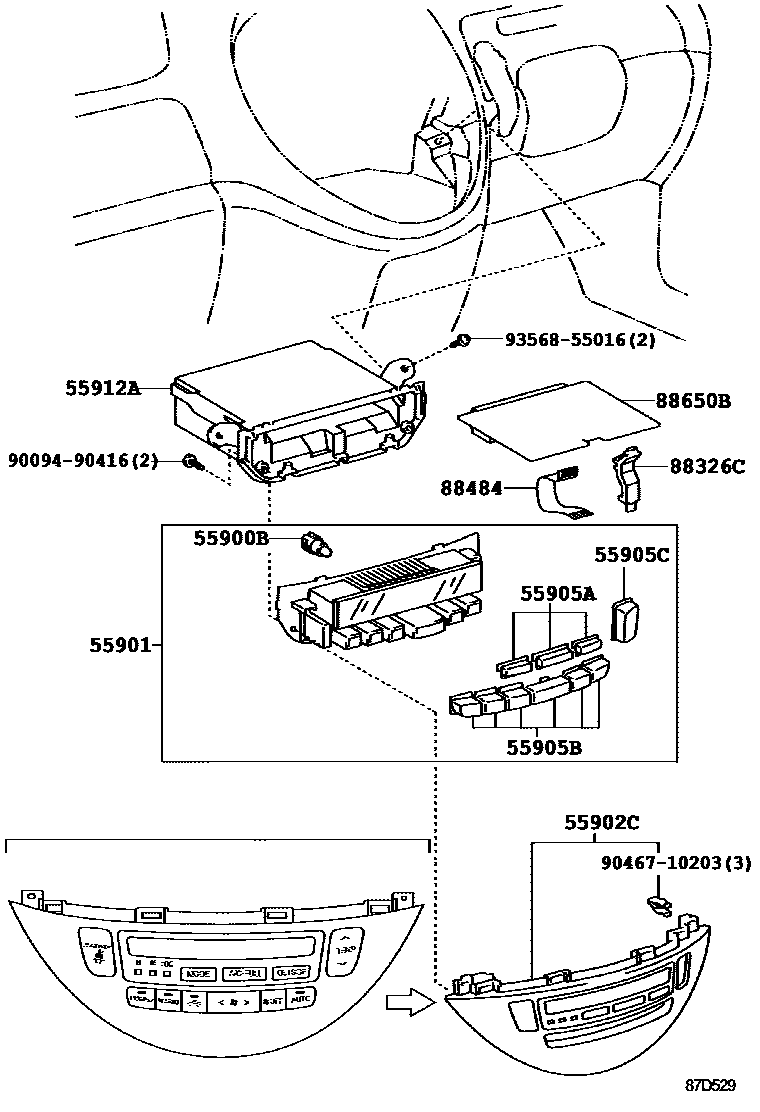

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���� ����-� ���� 0002 1�� ����-� ���� 0003 1���� ���� 0004 1�� �-� ���� 0005 1�� �-� ���� 0006 1���

55900BBULB, AIR CONDITIONER CONTROL

main84999-60700×4iAHR10200105-200308

main90010-03042×3iAHR10200105-200308

55901BASE SUB-ASSY, HEATER CONTROL

main55901-28140iAHR10200105-200308

main55901-28180iAHR10200105-200308

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-28260iAHR10200308

main55902-28270iAHR10200308

main55902-28290iAHR10200208-200308

main55902-28360iAHR10..07S200308

55905AKNOB, HEATER CONTROL

main55905-28170iAHR10200105-200308

55905BKNOB, HEATER CONTROL, NO.2

main55905-28180iAHR10200105-200308

main55905-28270iAHR10200208-200308

55905CKNOB, HEATER CONTROL, NO.3

main55905-28300iAHR10200105-200308

main55905-28330iAHR10200105-200308

55912AHOUSING, HEATER CONTROL

main55912-28030iAHR10200105-200308

88326CPLATE, COVER

main88326-28060iAHR10200308

88484WIRE, COOLER, NO.1

main88484-28020iAHR10200105-200308

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-28870iAHR10200105-200308

main88650-28880iAHR10200105-200308

main88650-28A10iAHR10200308-200403

main88650-28A11iAHR10200403-200410

main88650-28A12iAHR10200410

main88650-28A20iAHR10200308-200403

main88650-28A21iAHR10200403-200410

main88650-28A22iAHR10200410

9009490416

main90094-90416

9046710203

main90467-10203

9356855016

main93568-55016

13 parts on this diagram · 6 diagrams in section
