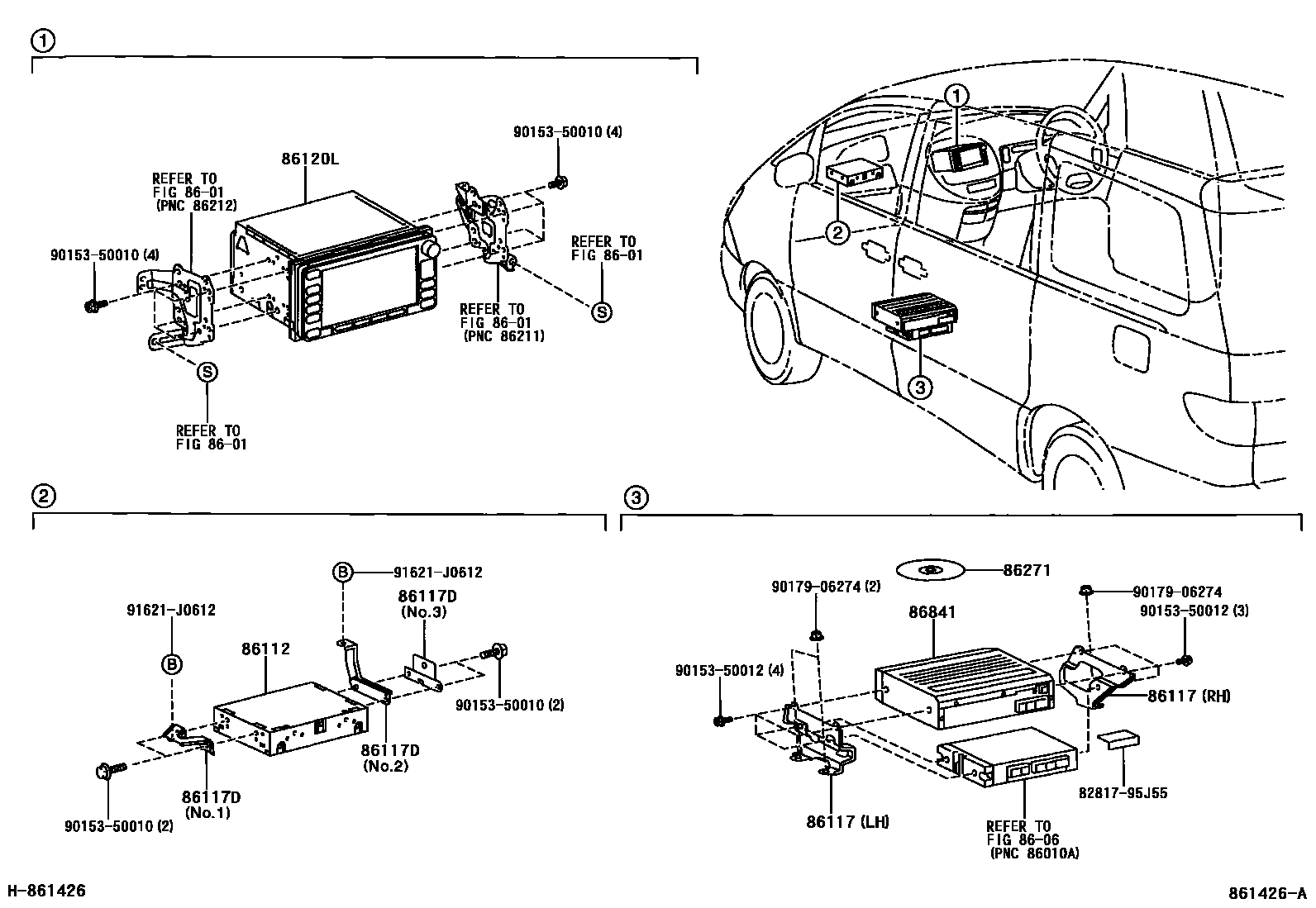

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

86112COMPUTER, MULTI-DISPLAY (COMPUTER CRT DISPLAY)

main86112-28010200105-200112

main86112-28011200112-200308

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-28100200105-200308

main86117-28110200105-200308

main86117-28140200308

86117DBRACKET, MULTI-DISPLAY COMPUTER

main86117-28070200105-200308

main86117-28080200105-200308

main86117-28090200105-200308

86120LRECEIVER ASSY, NAVIGATION

main86120-28340200308

main86120-28430200105-200302

main86120-28431200302-200308

main86120-28440200105-200302

main86120-28441200302-200308

main86120-28480200308

main86120-28530200403

main86120-58050200308-200403

86271DISC, DISC PLAYER

main86271-44020200105-200308

main86271-52041200308-200403

main86271-52042200403-200410

main86271-52043200410-200508

main86271-52044200508-200509

main86271-52045200510

86841COMPUTER, NAVIGATION

main86841-44010200105-200308

main86841-52020200308

8281795J55PROTECTOR, WIRING HARNESS, NO.1

main82817-95J55

9015350010

main90153-50010

9015350012

main90153-50012

9017906274

main90179-06274

91621J0612

main91621-J0612

13 parts on this diagram · 2 diagrams in section
