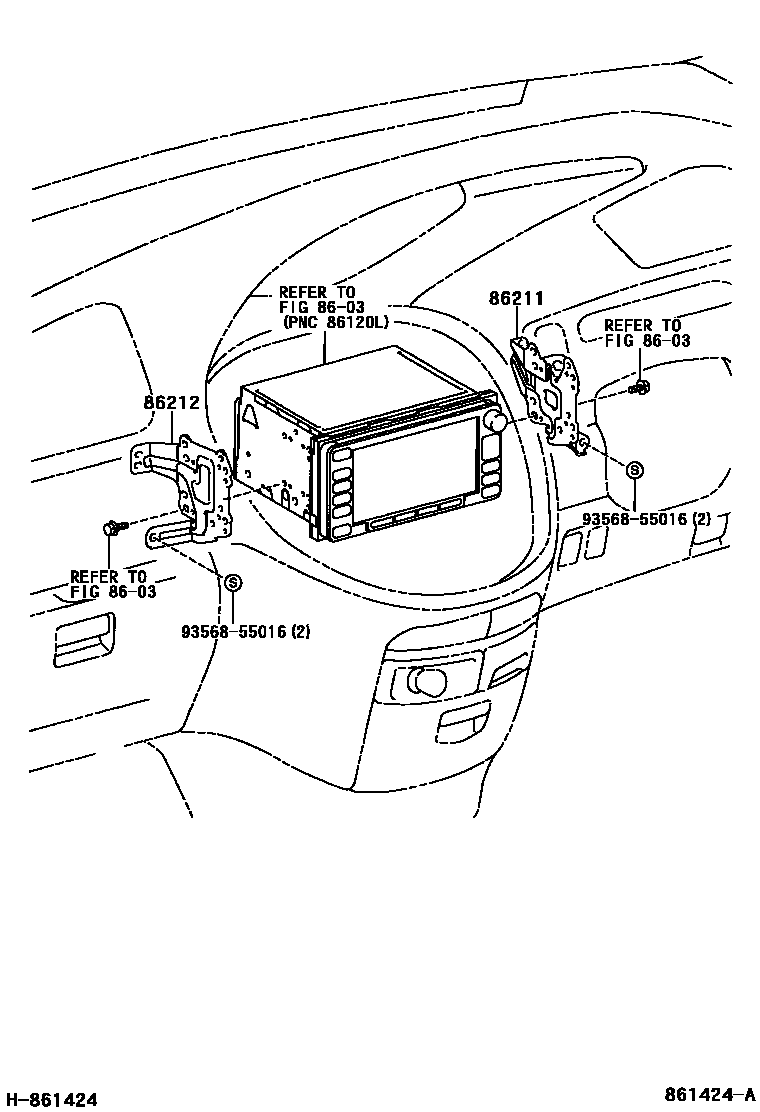

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86211BRACKET, RADIO, NO.1

main86211-28110iAHR10200105-200308

86212BRACKET, RADIO, NO.2

main86212-28110iAHR10200105-200308

9356855016

main93568-55016

4 parts on this diagram · 2 diagrams in section
