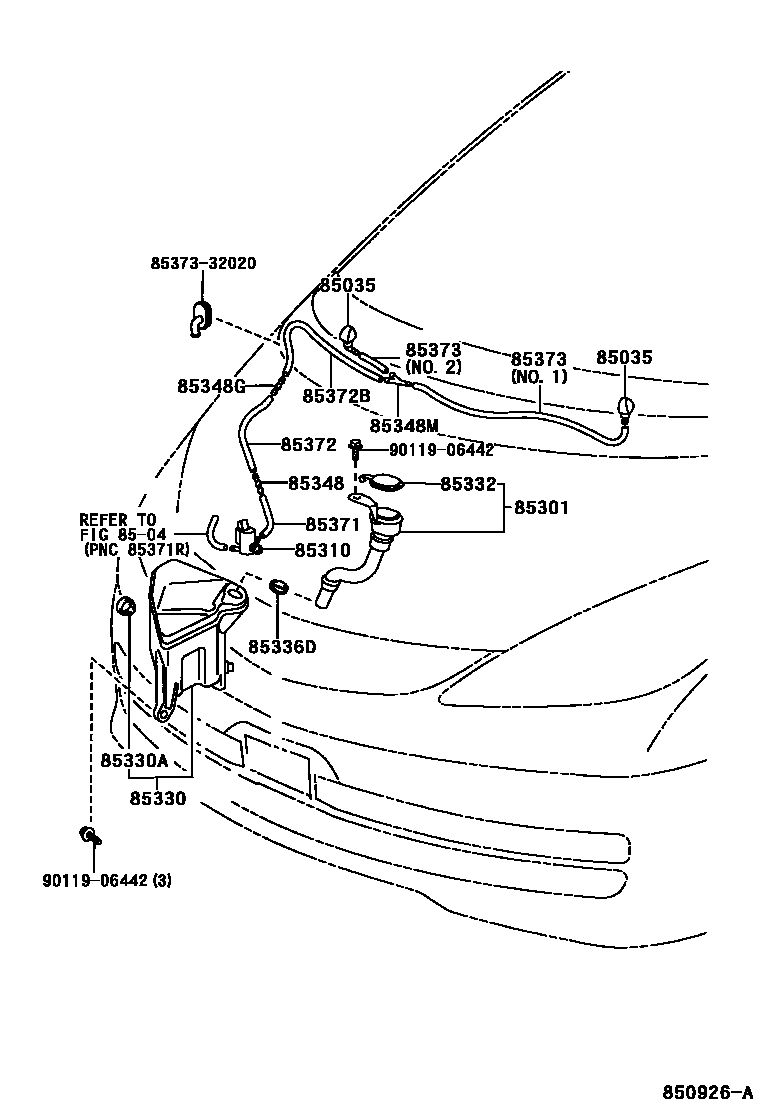

WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-28130iAHR10200105-200308

main85381-28150iAHR10200105-200308

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-28010iAHR10200105-200308

main85301-28060iAHR10200308

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-20460iAHR10200105-200308

main85330-21010iAHR10200308

85330JAR ASSY, WINDSHIELD WASHER

main85315-28110iAHR10200105-200308

main85315-28200iAHR10200308

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAHR10200105-200308

85332CAP, WINDSHIELD WASHER JAR

main85316-26060iAHR10200105-200308

main85316-28060iAHR10200308

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iAHR10200105-200308

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAHR10200105-200308

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iAHR10200105-200308

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-14390iAHR10200105-200308

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iAHR10200105-200308

main90099-33082iAHR10200308-200601

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iAHR10200105-200308

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iAHR10200105-200308

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAHR10200105-200106

8537332020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-32020

9011906442

main90119-06442

17 parts on this diagram · 2 diagrams in section
