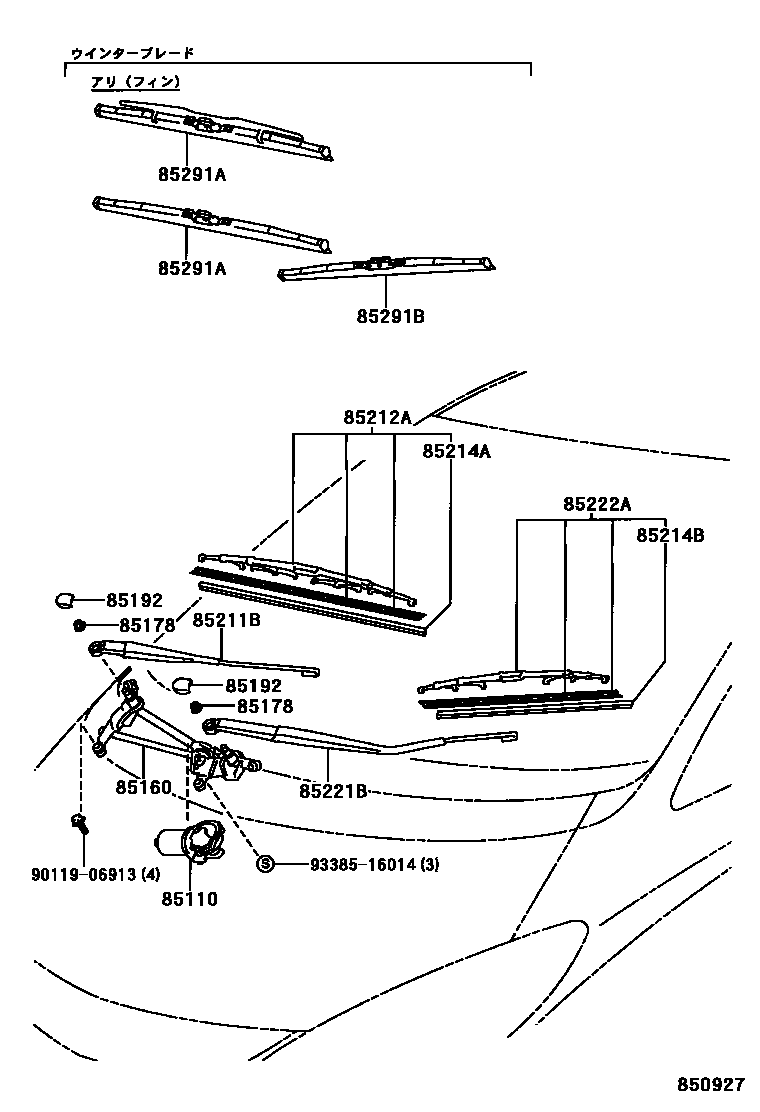

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28170iAHR10200308

main85110-28190iAHR10200105-200308

85160LINK ASSY, WINDSHIELD WIPER

main85150-28140iAHR10200105-200308

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2iAHR10200105-200308

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2iAHR10200105-200308

85211BARM, FRONT WIPER, RH

main85211-28130iAHR10200105-200308

85212ABLADE, FR WIPER, RH

main85212-28130iAHR10200105-200308

main85212-28150iAHR10200501

85214ARUBBER, WIPER, RH

main85214-28030iAHR10200501

main85214-28040iAHR10200308-200501

85214BRUBBER, WIPER, LH

main85214-22420iAHR10200308-200501

main85214-35030iAHR10200105-200308

main85214-46010iAHR10200501

85221BARM, FRONT WIPER, LH

main85221-28100iAHR10200105-200308

85222ABLADE, FR WIPER, LH

main85222-22780iAHR10200308-200501

main85222-28150iAHR10200501

main85222-60150iAHR10200105-200308

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-28011iAHR10200105-200308

main85291-28101iAHR10200105-200308

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-28110iAHR10200105-200308

9011906913

main90119-06913

9338516014

main93385-16014

14 parts on this diagram · 1 diagram in section
