HEV INVERTER

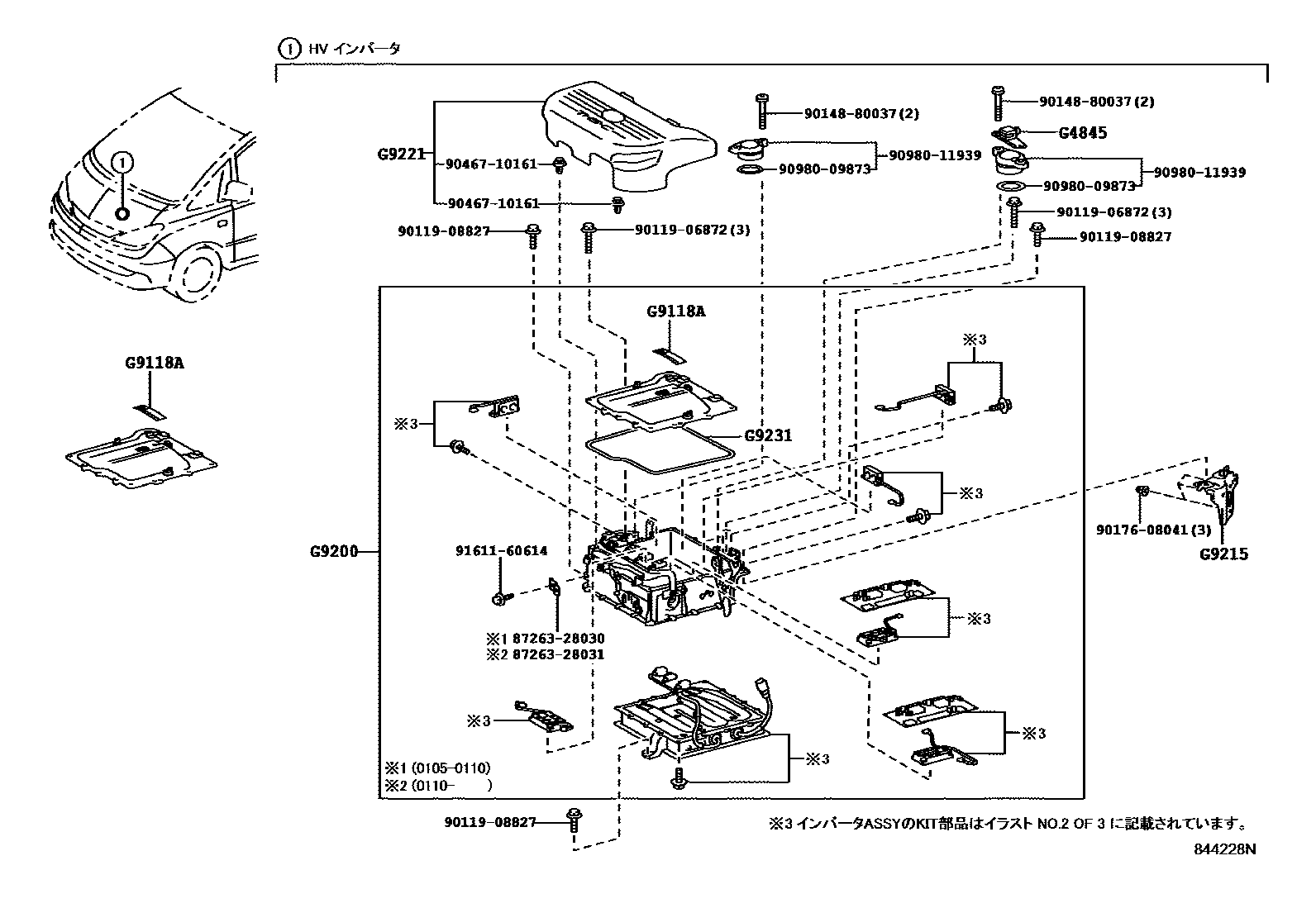

Parts diagram

G4845SENSOR, CIRCUIT BREAKER, NO.1

mainG484528010i200105-200308

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911847010i200105-200308

G9200INVERTER ASSY, W/CONVERTER

mainG920028010i200105-200112

mainG920028011i200112-200308

mainG920028020i200308-200601

G9215BRACKET, INVERTER, NO.2

mainG921528010i200105-200308

G9221COVER, INVERTER

main53796-28030i200105-200308

G9231GASKET, INVERTER COVER

mainG923147010i200105-200308

8726328030BRACKET, HEATER WATER PIPE, NO.1

main87263-28030

8726328031BRACKET, HEATER WATER PIPE, NO.1

main87263-28031

9011906872

main90119-06872

9011908827

main90119-08827

9014880037

main90148-80037

9017608041

main90176-08041

9046710161

main90467-10161

9098009873

main90980-09873

9098011939

main90980-11939

9161160614

main91611-60614

16 parts on this diagram · 4 diagrams in section
