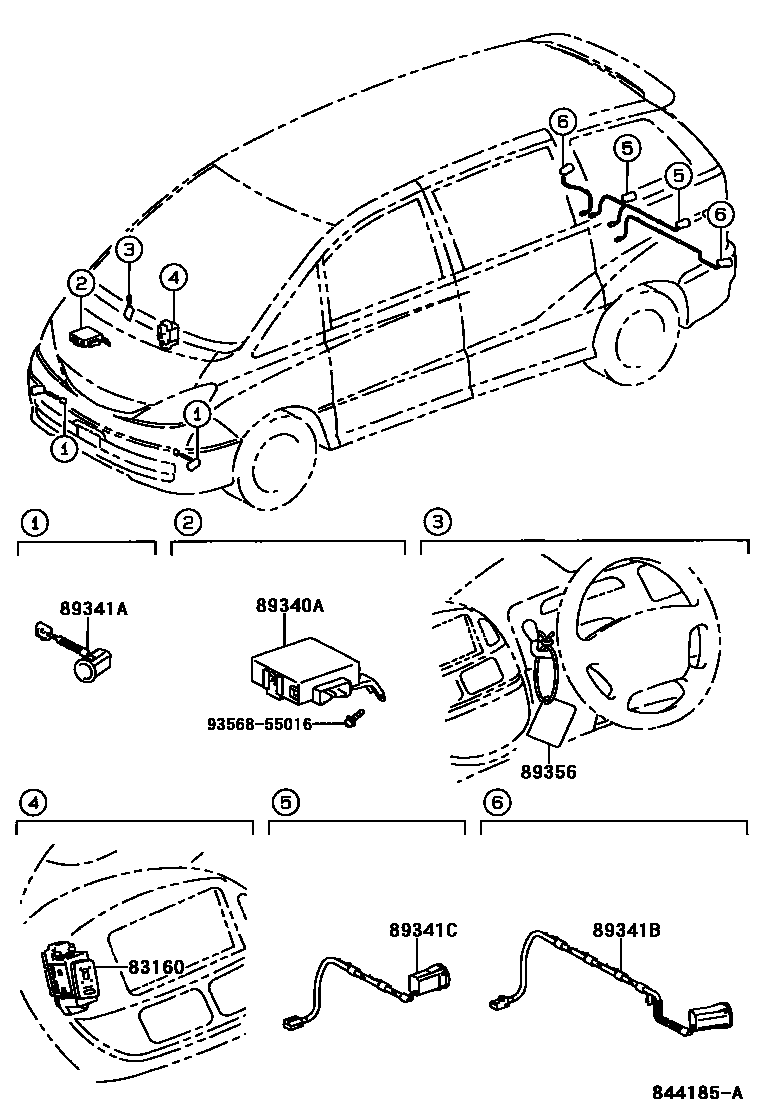

CLEARANCE & BACK SONAR

0001 1 0002 1

83160INDICATOR ASSY, CLEARANCE WARNING

main83160-28020iAHR10200105-200308

main83160-28020iAHR10200308

main83160-28040iAHR10200308

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-28110iAHR10200105-200308

main89340-28140iAHR10200308

main89340-28160iAHR10200308

89341ASENSOR, ULTRASONIC, NO.1

main89341-28350iAHR10200105-200206

main89341-28351iAHR10200206-200308

89341BSENSOR, ULTRASONIC, NO.2

main89341-28310iAHR10200105-200206

main89341-28311iAHR10200206-200308

main89341-28320iAHR10200105-200206

main89341-28321iAHR10200206-200308

main89341-28390-A0iAHR10200308-200601

WHITE PM.,042

main89341-28390-B0iAHR10200308-200601

SILVER ME.,1C0

main89341-28390-G2iAHR10200308-200601

LT.GREEN ME.,6S0

main89341-28390-J1iAHR10200308-200601

DARK BLUE MC.,8P8

main89341-28390-J2iAHR10200308-200601

PALE BLUE M.M.,8R0

89341CSENSOR, ULTRASONIC, NO.3

main89341-28330iAHR10200105-200308

main89341-28340iAHR10200105-200308

main89341-28410-A0iAHR10200308-200601

WHITE PM.,042

main89341-28410-B0iAHR10200308-200601

SILVER ME.,1C0

main89341-28410-G2iAHR10200308-200601

LT.GREEN ME.,6S0

main89341-28410-J1iAHR10200308-200601

DARK BLUE MC.,8P8

main89341-28410-J2iAHR10200308-200601

PALE BLUE M.M.,8R0

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-28030iAHR10200105-200207

main89356-28040iAHR10200207-200308

9356855016

main93568-55016

7 parts on this diagram · 2 diagrams in section
