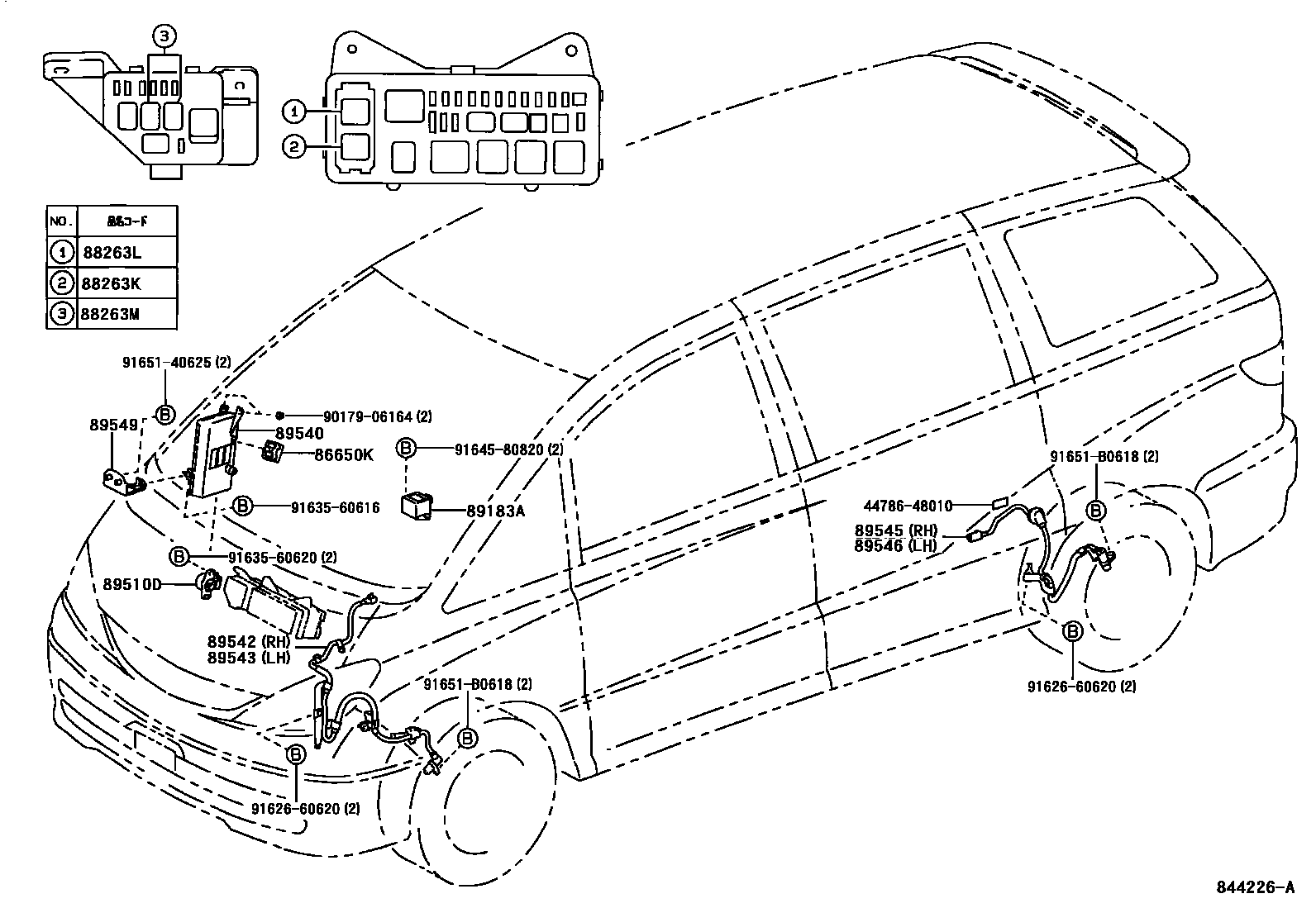

ABS & VSC

0001 1 0002 1

86650KBUZZER ASSY, SKID CONTROL

main86650-30180iAHR10200105-200308

88263KRELAY, HYDRO MOTOR, NO.1

main88263-21010iAHR10200308

main89633-24010iAHR10200105-200308

88263LRELAY, HYDRO MOTOR, NO.2

main88263-21010iAHR10200308

main88263-24020iAHR10200105-200308

88263MRELAY, ABS SOLENOID

main88263-32070×2iAHR10200308

89183ASENSOR, YAWRATE

main89183-30060iAHR10200105-200308

main89183-48010iAHR10200308

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-28010iAHR10200105-200308

89540COMPUTER ASSY, SKID CONTROL

main89540-28150iAHR10200308

main89540-28400iAHR10200105-200111

main89540-28401iAHR10200111-200308

89542SENSOR, SPEED, FRONT RH

main89542-28090iAHR10200105-200308

89543SENSOR, SPEED, FRONT LH

main89543-28090iAHR10200105-200308

89545SENSOR, SPEED, REAR RH

main89545-28160iAHR10200105-200308

89546SENSOR, SPEED, REAR LH

main89546-28150iAHR10200105-200308

89549BRACKET, SKID CONTROL COMPUTER

main89549-28150iAHR10200105-200308

4478648010INSULATOR, HOSE HEAT

main44786-48010

9017906164

main90179-06164

9162660620

main91626-60620

9163560616

main91635-60616

9163560620

main91635-60620

9164580820

main91645-80820

9165140625

main91651-40625

91651B0618

main91651-B0618

20 parts on this diagram · 2 diagrams in section
