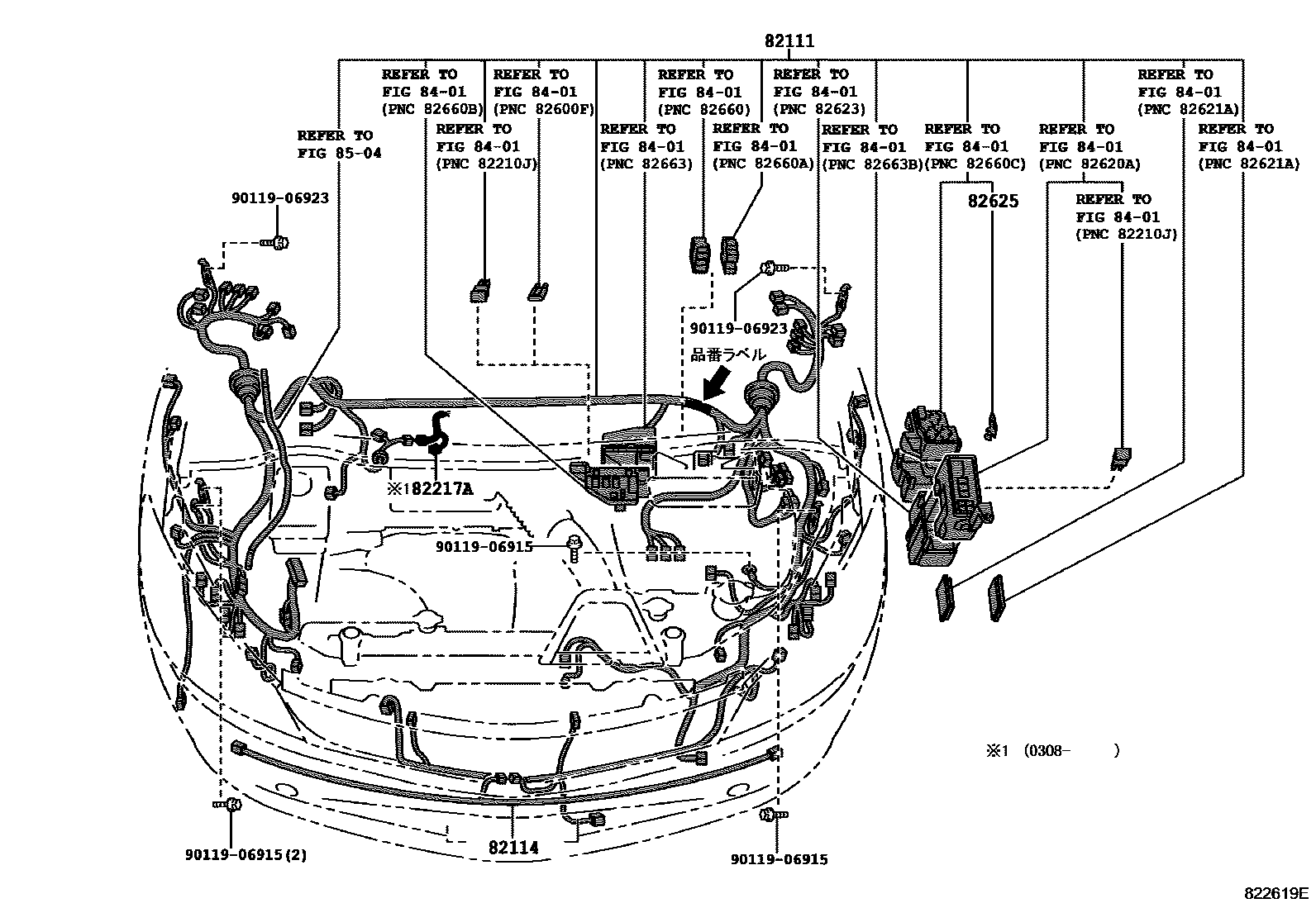

WIRING & CLAMP

0001 1������-� 0002 1����� 0003 1��� & �-� 0004 1������������ 0005 1��� 0006 1��� 0007 1����� & ���-�-��� 0008 1����� & ���-�-��� 0009 1�-� & ������� 0010 1�-�������� 0011 1�-�������� 0012 1����� & ������ 0013 1����

82111WIRE, ENGINE ROOM MAIN

main82111-28A00iAHR10200308

main82111-28A10iAHR10200308

main82111-28A20iAHR10200308

main82111-28A30iAHR10200308

main82111-28A40iAHR10200308

main82111-28B00iAHR10..07S200308

main82111-2X010iAHR10200105-200108

main82111-2X011iAHR10200108-200308

main82111-2X020iAHR10200105-200108

main82111-2X021iAHR10200108-200308

main82111-2X080iAHR10200105-200108

main82111-2X081iAHR10200108-200308

main82111-2X090iAHR10200105-200108

main82111-2X091iAHR10200108-200308

82114WIRE, ENGINE ROOM, NO.4

main82114-28060iAHR10200105-200308

main82114-28110iAHR10200308

main82114-28120iAHR10200308

82217AWIRE, FRONT WINDOW DEFOGGER

main82217-28010iAHR10200308-200601

82625TERMINAL, FUSIBLE LINK

main82625-28020iAHR10200105-200308

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8504REAR WASHER

→ Go to FIG 85-04

9011906915

main90119-06915

9011906923

main90119-06923

8 parts on this diagram · 13 diagrams in section
