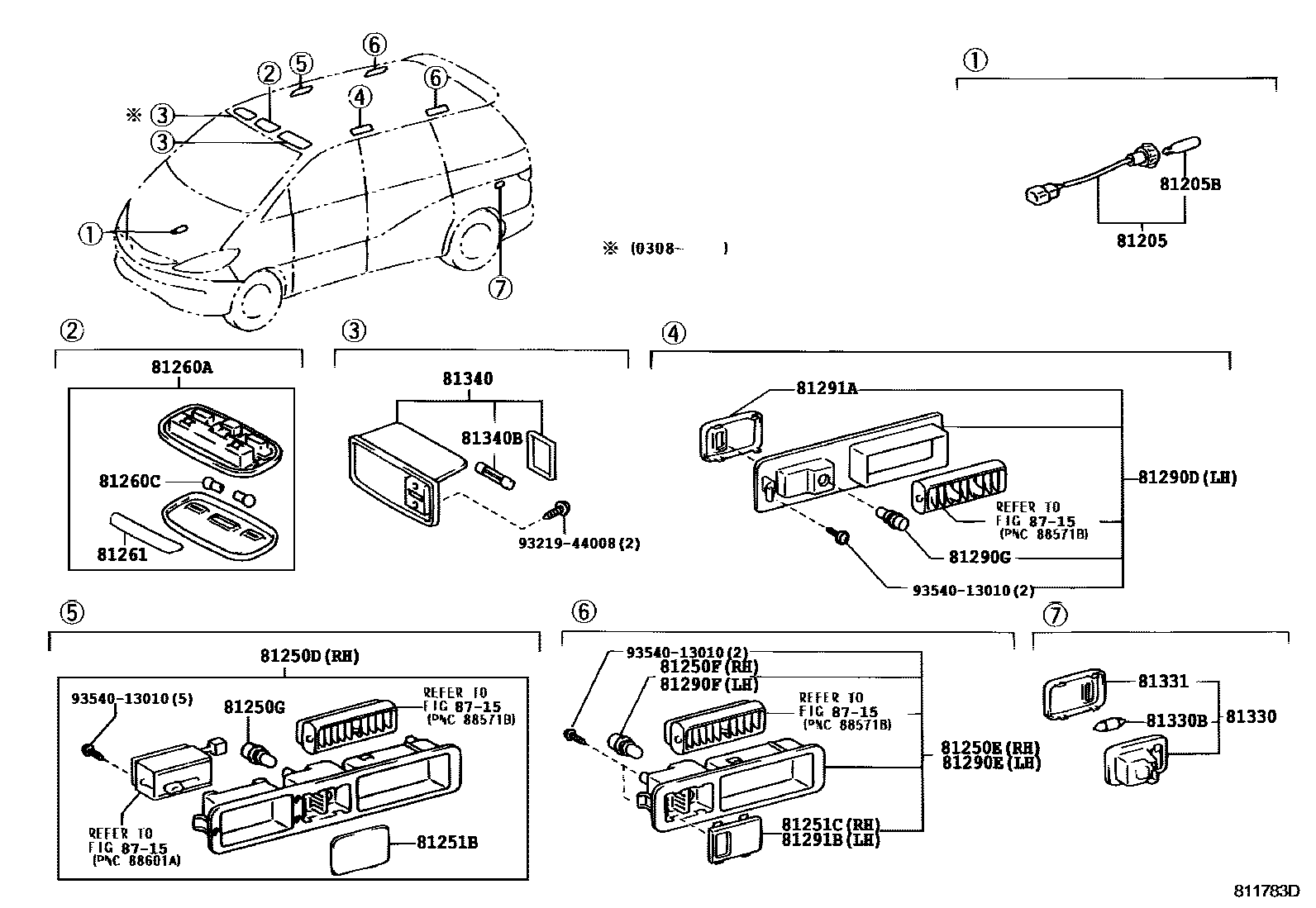

INTERIOR LAMP
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
81250DLAMP ASSY, REAR ROOM, RH
IVORY,TRIM0#
LT. BLUISH GRAY,TRIM13
MD.CHARCOAL,TRIM14
LT.GRAY,TRIM1#
81250ELAMP ASSY, REAR ROOM, RH NO.2
IVORY,TRIM0#
LT. BLUISH GRAY,TRIM13
MD.CHARCOAL,TRIM14
LT.GRAY,TRIM1#
81250FBULB, REAR ROOM LAMP RH NO.2
81250GBULB, REAR ROOM LAMP, RH
81251BLENS, REAR ROOM LAMP, RH
81251CLENS, REAR ROOM LAMP, RH NO.2
81260ALAMP ASSY, MAP
IVORY,TRIM0#
MD.CHARCOAL,TRIM14
LT. BLUISH GRAY,TRIM13
LT.GRAY,TRIM1#
81260CBULB(FOR MAP LAMP)
81261LENS AND COVER, MAP LAMP
81290DLAMP ASSY, REAR ROOM, LH
IVORY,TRIM0#
LT. BLUISH GRAY,TRIM13
MD.CHARCOAL,TRIM14
LT.GRAY,TRIM1#
81290ELAMP ASSY, REAR ROOM, LH NO.2
IVORY,TRIM0#
LT. BLUISH GRAY,TRIM13
MD.CHARCOAL,TRIM14
LT.GRAY,TRIM1#
81290FBULB, REAR ROOM LAMP LH NO.2
81290GBULB, REAR ROOM LAMP, LH
81291ALENS, REAR ROOM LAMP, LH
81291BLENS, REAR ROOM LAMP, LH NO.2
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
IVORY,TRIM0#
MD.GRAY,TRIM1#
IVORY,TRIM0#
LT. BLUISH GRAY,TRIM13
MD.CHARCOAL,TRIM14
MD.GRAY,TRIM1#
81330BBULB, LUGGAGE COMPARTMENT LAMP
81331LENS, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
MD.CHARCOAL,TRIM14
LT.BLUISH GRAY,TRIM13
81340BBULB (FOR VANITY LAMP)
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9321944008
main93219-44008
9354013010
main93540-13010
25 parts on this diagram · 2 diagrams in section
