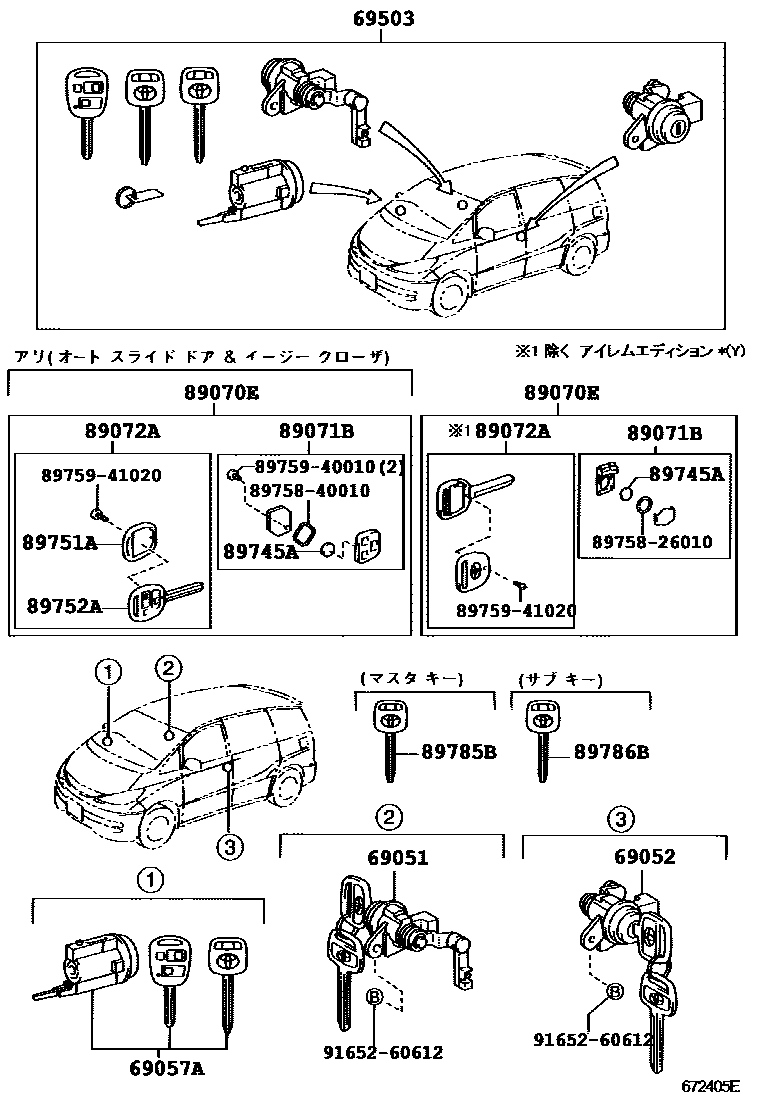

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
89070ETRANSMITTER ASSY, DOOR CONTROL
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
89752ACASE, TRANSMITTER HOUSING
89785BTRANSMITTER, TRANSPONDER KEY MASTER
8975826010PACKING, DOOR CONTROL TRANSMITTER
main89758-26010
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975941020SCREW, DOOR CONTROL TRANSMITTER
main89759-41020
9165260612
main91652-60612
17 parts on this diagram · 2 diagrams in section
