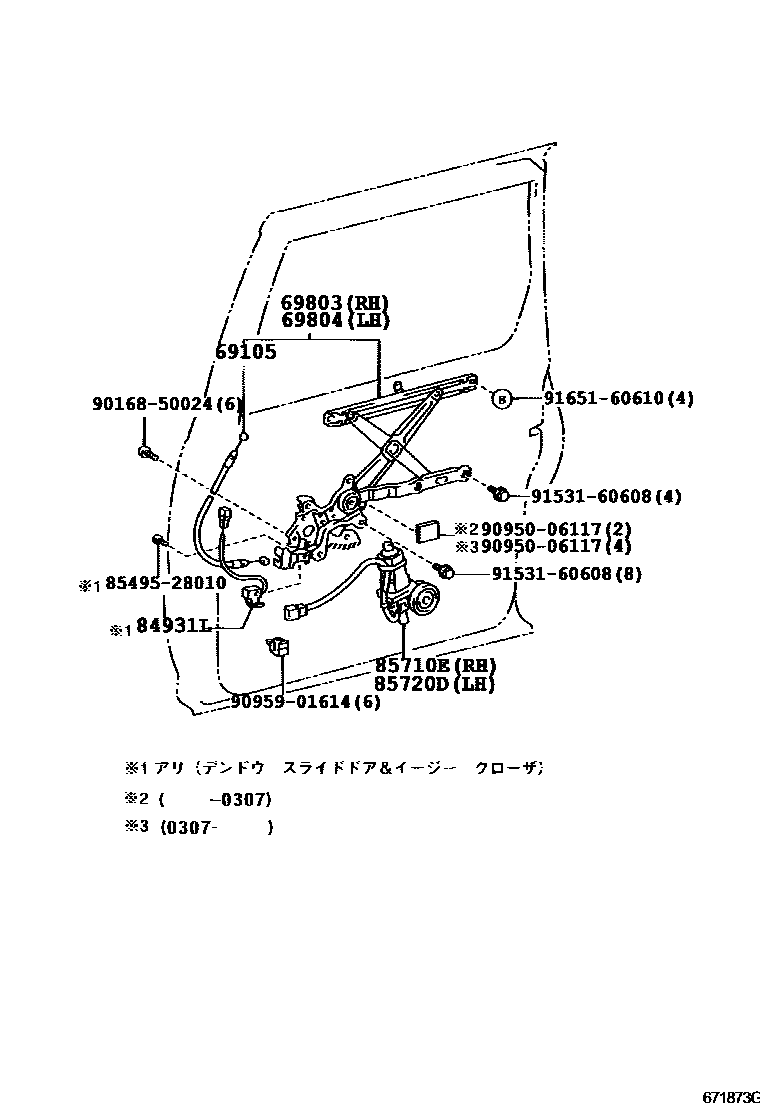

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

69105CABLE SUB-ASSY, SLIDE DOOR HALF STOP CONTROL

main69105-28010×2iAHR10200105-200308

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-28010iAHR10200105-200308

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-28050iAHR10200105-200308

main69804-28060iAHR10200105-200308

84931LSWITCH, DOOR CONTROL

main84931-28090iAHR10200105-200308

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-28050iAHR10200105-200308

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-28070iAHR10200105-200308

8549528010

main85495-28010

9016850024

main90168-50024

9095006117

main90950-06117

9095901614

main90959-01614

9153160608

main91531-60608

9165160610

main91651-60610

12 parts on this diagram · 2 diagrams in section
