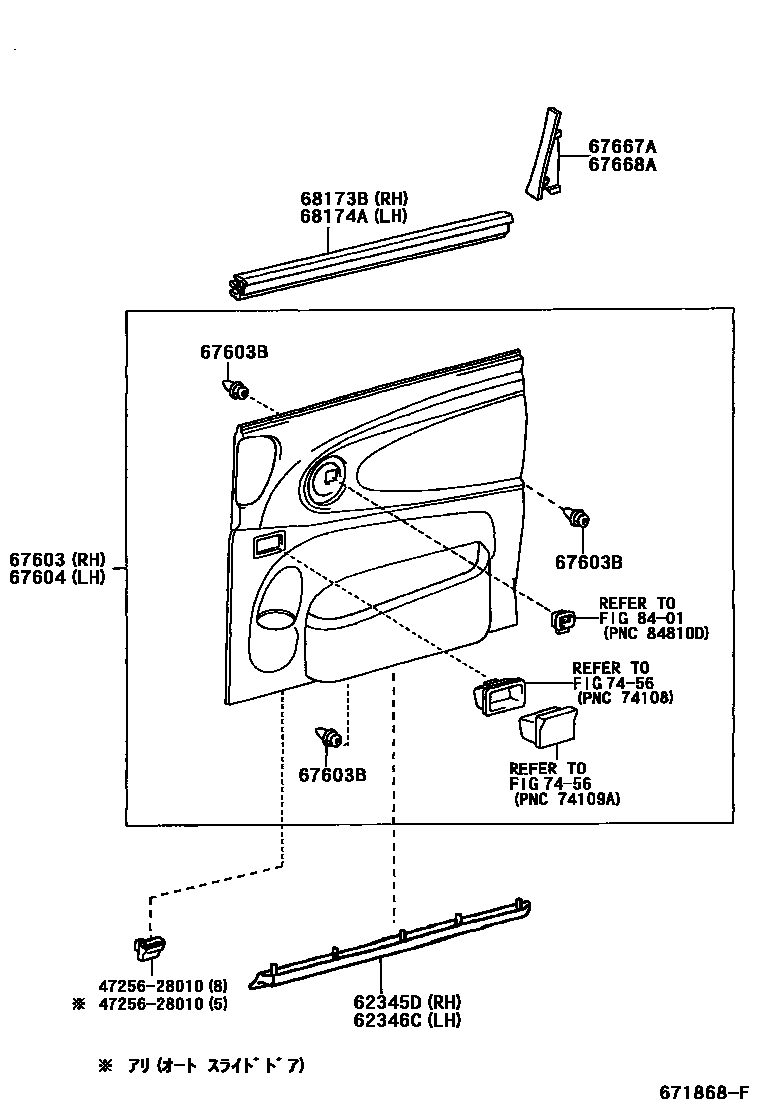

REAR DOOR PANEL & GLASS
62345DWEATHERSTRIP, SLIDE DOOR, NO.3 RH
62346CWEATHERSTRIP, SLIDE DOOR, NO.3 LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
DARK GRAY,TRIM1#
IVORY,TRIM0#
67603BCLIP(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
DARK GRAY,TRIM1#
IVORY,TRIM0#
67667AGARNISH, SLIDE DOOR WINDOW, RH
67668AGARNISH, SLIDE DOOR WINDOW, LH
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
7456ASH RECEPTACLE
8401SWITCH & RELAY & COMPUTER
4725628010GROMMET, CAP
main47256-28010
12 parts on this diagram · 3 diagrams in section
