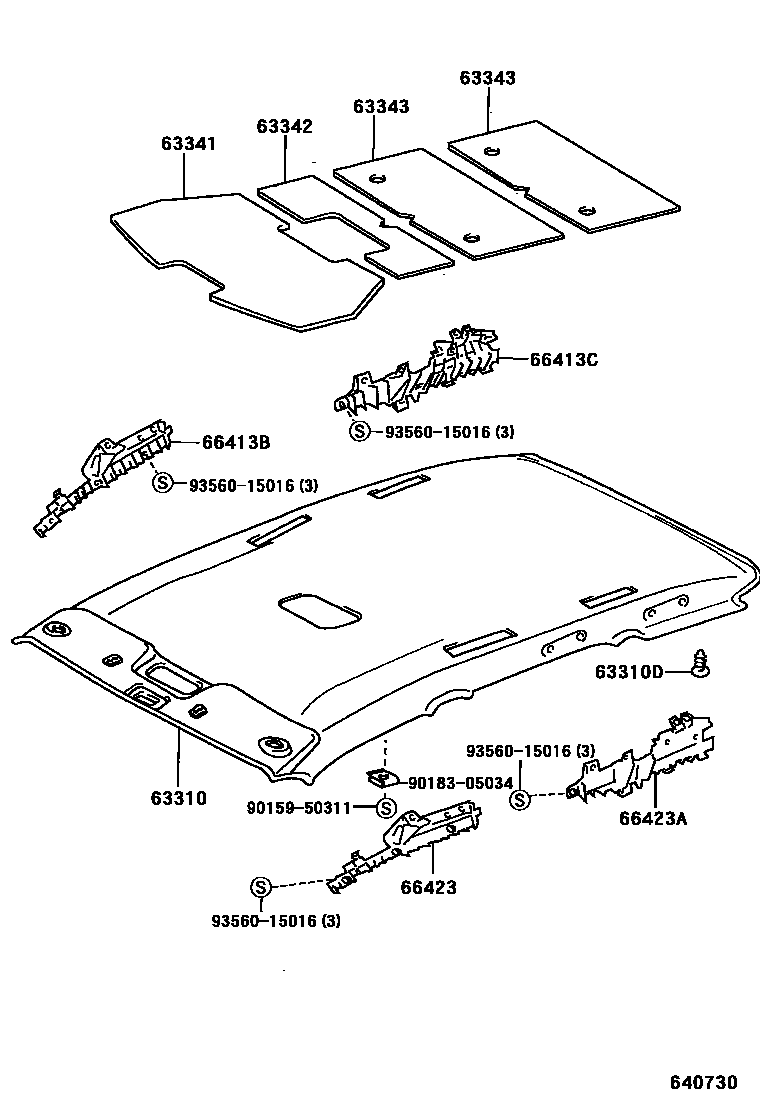

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1��(��� �-��-�) 0003 1 0004 1��(��� �-��-�)

63310HEADLINING ASSY, ROOF

main63310-28720-B0iAHR10200105-200308

main63310-28720-B1iAHR10200105-200308

main63310-28770-B0iAHR10200105-200308

main63310-28770-B1iAHR10200105-200308

main63310-28880-A0iAHR10200308-200601

main63310-28890-A0iAHR10200308-200601

main63310-28A40-A0iAHR10200308-200601

main63310-28A40-B0iAHR10200308-200601

main63310-28B90-A0iAHR10200308-200601

IVORY,TRIM0#

main63310-28B90-B0iAHR10200308-200601

LT. GRAY,TRIM1#

main63310-2J030-B0iAHR10200105-200308

main63310-2J030-B1iAHR10200105-200308

main63310-2J040-B0iAHR10200105-200308

MEDIUM CHARCOAL,TRIM14

main63310-2J040-B1iAHR10200105-200308

LT. BL. GRAY,TRIM13

63310DCLIP, ROOF HEADLINING

main90467-05164-A0×7iAHR10200308-200601

main90467-05164-B3×3iAHR10200206-200308

main90467-05164-B4×7iAHR10200206-200308

main90467-05164-B5×3iAHR10200308-200601

main90467-06177-B3×7iAHR10200105-200206

main90467-06177-B4×7iAHR10200105-200206

63341PAD, ROOF SILENCER, NO.1

main63341-28070iAHR10200308

63342PAD, ROOF SILENCER, NO.2

main63342-28040iAHR10200105-200308

63343PAD, ROOF SILENCER, NO.3

main63343-28030×2iAHR10200105-200308

66413BSPACER, SIDE RAIL, FRONT RH

main66413-28010iAHR10200308

66413CSPACER, SIDE RAIL, FRONT RH

main66413-28030iAHR10200308

66423SPACER, SIDE RAIL, FRONT LH

main66423-28010iAHR10200308

66423ASPACER, SIDE RAIL, FRONT LH

main66423-28030iAHR10200308

9015950311

main90159-50311

9018305034

main90183-05034

9356015016

main93560-15016

12 parts on this diagram · 4 diagrams in section
