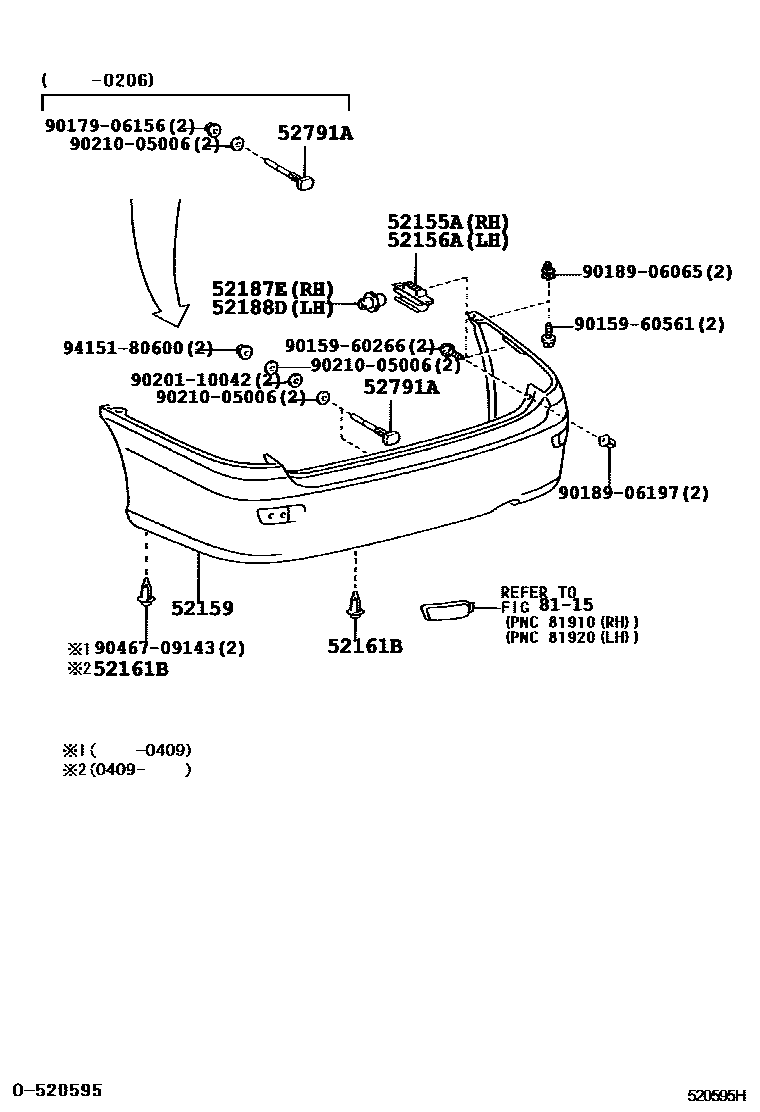

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-28070iAHR10200308

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-28070iAHR10200105-200308

52159COVER, REAR BUMPER

main52159-28270-A0iAHR10200308-200601

WHITE PM.,042

main52159-28270-A2iAHR10200105-200308

WHITE PEARL CS.,062

main52159-28270-B0iAHR10200105-200308

SILVER ME.,1C0

main52159-28270-D2iAHR10200105-200308

ROSE ME.OP.,3P3

main52159-28270-G2iAHR10200308-200601

LT.GREEN ME.,6S0

main52159-28270-J2iAHR10200105-200308

BLUE ME.,8N0

main52159-28270-J3iAHR10200308-200601

DK.BLUE MC.,8P8

main52159-28270-J4iAHR10200308-200601

PALE BLUE M.M.,8R0

main52159-28330-A0iAHR10200308-200601

main52159-28330-A2iAHR10200105-200308

main52159-28330-B0iAHR10200105-200308

main52159-28330-D2iAHR10200105-200308

main52159-28330-G2iAHR10200308-200601

main52159-28330-J2iAHR10200105-200308

main52159-28330-J3iAHR10200208-200308

main52159-28330-J4iAHR10200308-200601

main52159-28450-A0iAHR10200308-200601

main52159-28450-B0iAHR10200308-200601

main52159-28450-G1iAHR10200308-200601

main52159-28450-J1iAHR10200308-200601

main52159-28450-J2iAHR10200308-200601

52161BPIECE, REAR BUMPER

main52161-16010×2iAHR10200105-200308

52187EGUIDE, REAR BUMPER LOCATION, RH

main52187-16070iAHR10200105-200308

52188DGUIDE, REAR BUMPER LOCATION, LH

main52187-16070iAHR10200105-200308

52791ABOLT, BUMPER MOULDING SET, NO.2

main52791-44020×2iAHR10200105-200308

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9015960266

main90159-60266

9015960561

main90159-60561

9017906156

main90179-06156

9018906065

main90189-06065

9018906197

main90189-06197

9020110042

main90201-10042

9021005006

main90210-05006

9046709143

main90467-09143

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
