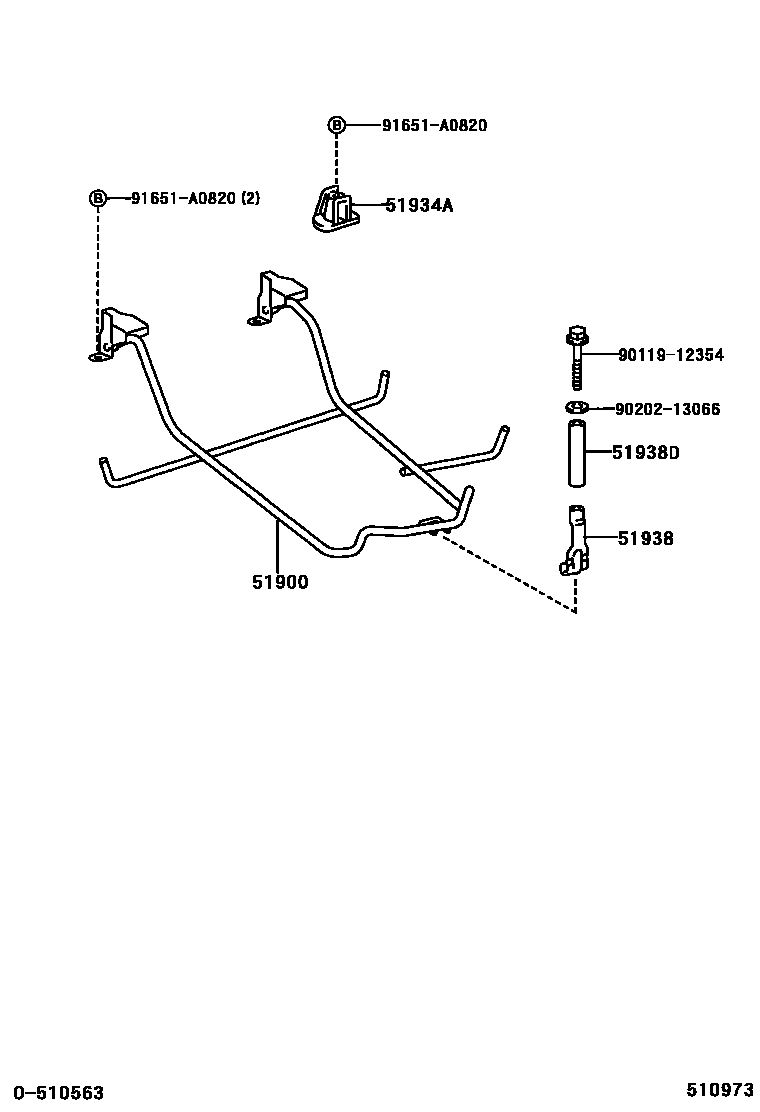

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-28040iAHR10200105-200308

51934ASTOPPER, SPARE WHEEL, NO.2

main51904-28070iAHR10200105-200308

51938LOCK, SPARE WHEEL CARRIER

main51938-13040iAHR10200105-200308

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17045iAHR10200105-200308

9011912354

main90119-12354

9020213066

main90202-13066

91651A0820

main91651-A0820

7 parts on this diagram · 1 diagram in section
