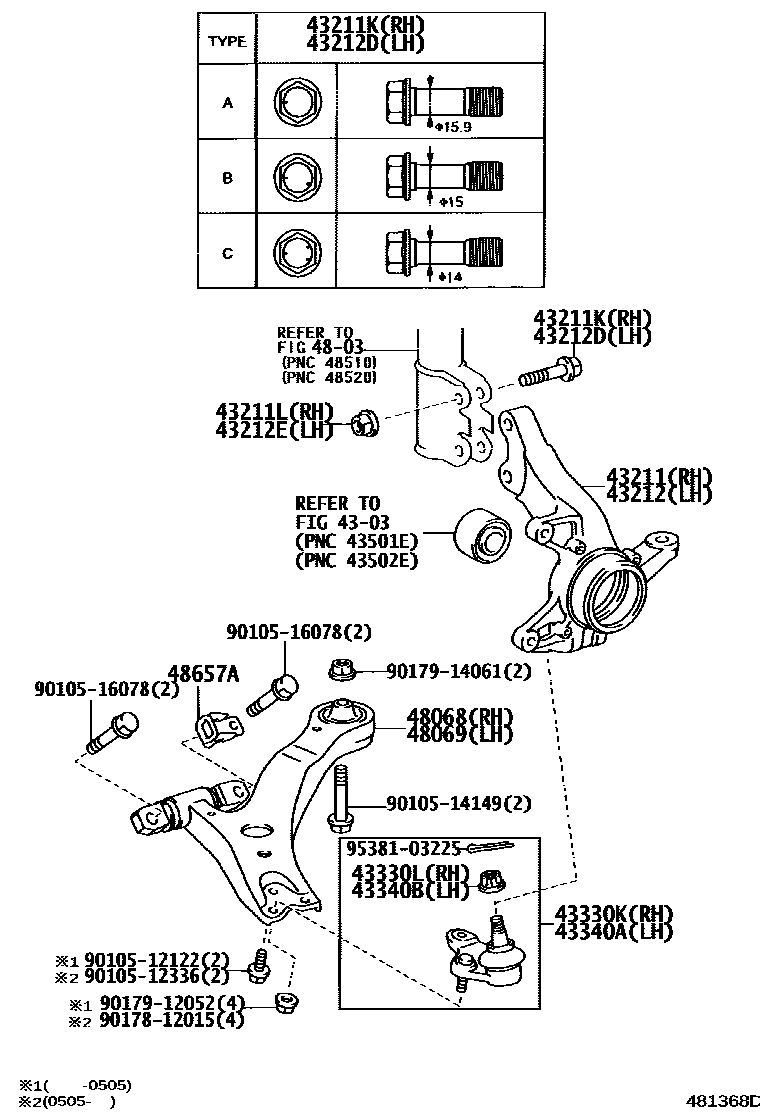

FRONT AXLE ARM & STEERING KNUCKLE

4303

43211KNUCKLE, STEERING, RH

main43211-28130iAHR10200105-200308

sub43211-28110

main43211-58010iAHR10200308

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17003×2iAHR10200105-200304

main90105-17004iAHR10200105-200304

main90105-17005iAHR10200105-200304

main90105-17013×2iAHR10200304-200308

main90105-17014iAHR10200308

main90105-17015iAHR10200304-200308

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001×2iAHR10200304-200308

main90179-17001×2iAHR10200105-200304

43212KNUCKLE, STEERING, LH

main43212-28110iAHR10200105-200308

sub43212-28090

main43212-58010iAHR10200308

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17003×2iAHR10200105-200304

main90105-17004iAHR10200105-200304

main90105-17005iAHR10200105-200304

main90105-17013×2iAHR10200308

main90105-17014iAHR10200304-200308

main90105-17015iAHR10200304-200308

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001×2iAHR10200304-200308

main90179-17001×2iAHR10200105-200304

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29405iAHR10200105-200308

sub43330-29615

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAHR10200308

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29175iAHR10200105-200308

sub43340-29215

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAHR10200105-200308

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28120iAHR10200105-200205

main48068-58010iAHR10200205-200308

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28120iAHR10200105-200205

main48069-58010iAHR10200205-200308

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010×2iAHR10200105-200308

9010512122

main90105-12122

9010512336

main90105-12336

9010514149

main90105-14149

9010516078

main90105-16078

9017812015

main90178-12015

9017912052

main90179-12052

9017914061

main90179-14061

9538103225

main95381-03225

23 parts on this diagram · 1 diagram in section
