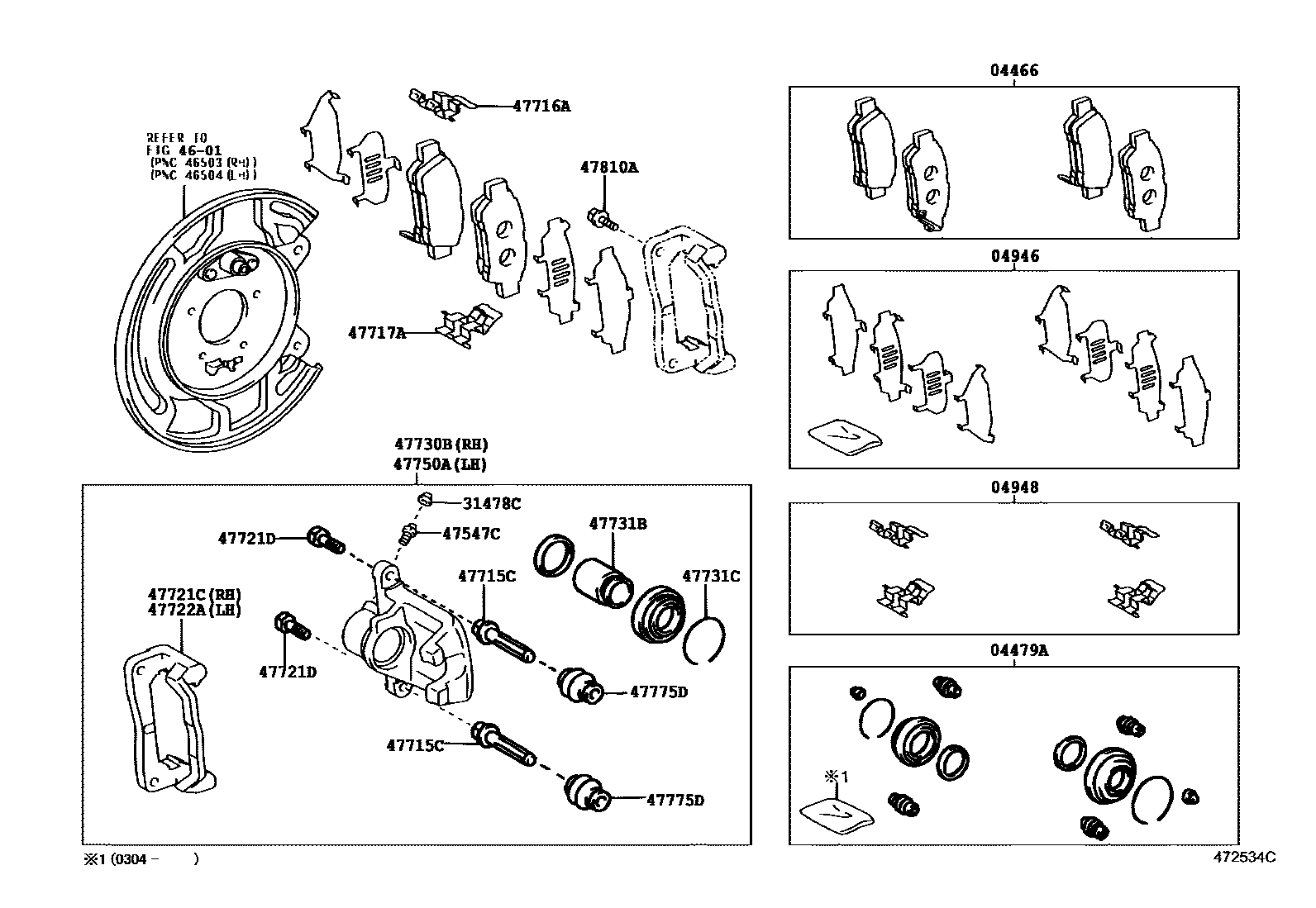

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-28030iAHR10200105-200111

sub04466-44010

main04466-28050iAHR10200111-200308

main04466-28080iAHR10200308

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-28130iAHR10200105-200304

main04479-28160iAHR10200304-200308

main04479-28170iAHR10200404

sub04479-28090

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-28020iAHR10200105-200308

04948FITTING KIT, DISC BRAKE, REAR

main04948-28010iAHR10200105-200308

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iAHR10200105-200308

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iAHR10200105-200308

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-52010×4iAHR10200105-200308

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-28030×2iAHR10200105-200308

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-28010×2iAHR10200105-200308

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-28020iAHR10200105-200308

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164×4iAHR10200105-200308

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-28010iAHR10200105-200308

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-28270iAHR10200105-200308

47731BPISTON, REAR DISC BRAKE

main47731-28090×2iAHR10200105-200308

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-53001×2iAHR10200105-200308

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-28270iAHR10200105-200308

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-52010×4iAHR10200105-200308

sub47775-02130

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-12185×4iAHR10200105-200308

19 parts on this diagram · 1 diagram in section
