STEERING WHEEL

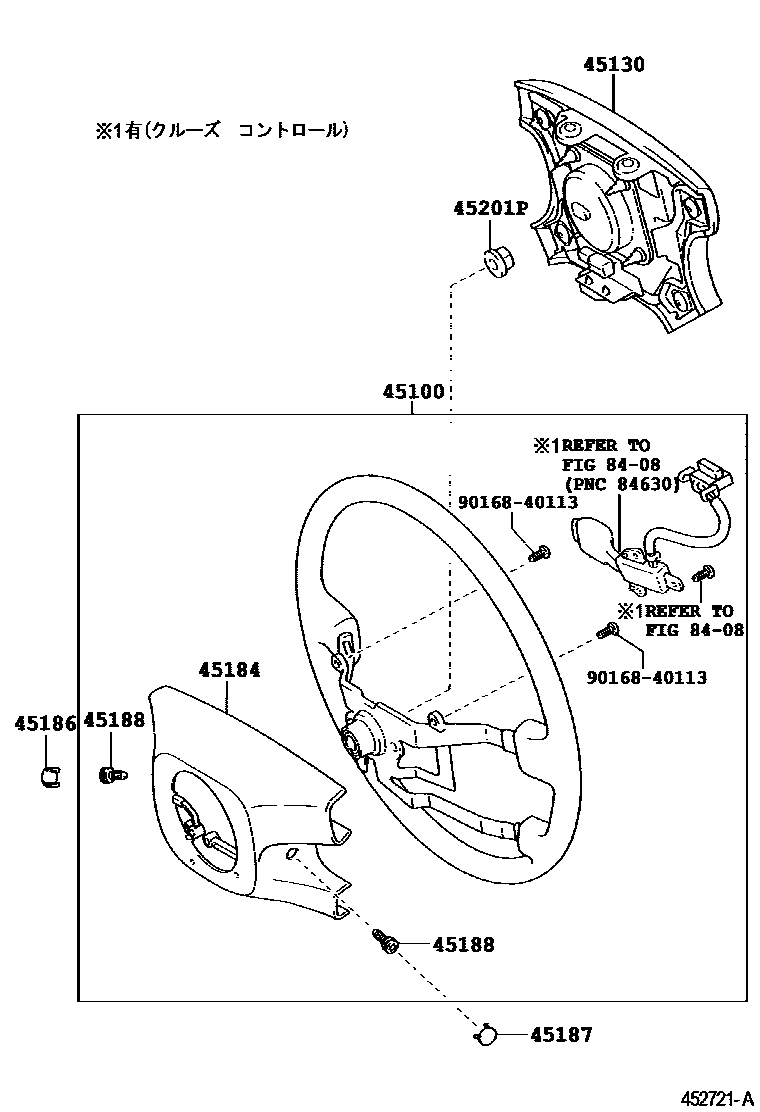

Parts diagram

45100WHEEL ASSY, STEERING

main45100-28290-B0i200105-200308

main45100-28290-B1i200105-200308

main45100-28300-B0i200105-200207

main45100-28300-B1i200105-200207

main45100-28300-B2i200207-200308

main45100-28300-B3i200207-200308

main45100-28330-B0i200208-200308

main45100-28350-B0i200308-200601

main45100-28360-E0i200308-200601

main45100-28360-E1i200308-200601

45130BUTTON ASSY, HORN

main45130-28440-B0i200105-200308

BLUISH GRAY,TRIM13

main45130-28440-B1i200105-200308

DK.CHARCOAL,TRIM14

main45130-28490-B0i200308-200601

DK.GRAY,TRIM1#

main45130-28490-E0i200308-200601

SANDAL WOOD,TRIM0#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-28110-B0i200105-200308

BLUISH GRAY,TRIM13

main45184-28110-B1i200105-200308

DK.CHARCOAL,TRIM14

main45184-28120-B0i200105-200308

main45184-28120-B1i200105-200308

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-33050-B0i200105-200308

BLUISH GRAY,TRIM13

main45186-33050-B1i200105-200308

DK.CHARCOAL,TRIM14

main45186-58010-B0i200308-200601

DK.GRAY,TRIM1#

main45186-58020-E1i200308-200601

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-33050-B0i200105-200308

BLUISH GRAY,TRIM13

main45186-33050-B1i200105-200308

DK.CHARCOAL,TRIM14

main45187-58010-B0i200308-200601

DK.GRAY,TRIM1#

main45187-58010-E1i200308-200601

SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200105-200308

45201PNUT, STEERING WHEEL SET

main90179-12071i200105-200308

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9016840113

main90168-40113

9 parts on this diagram · 2 diagrams in section
